Modular Application Reference

Generated from code by Doxygen (GitHub).

View or clone the code from GitLab or GitHub.

Hierarchy

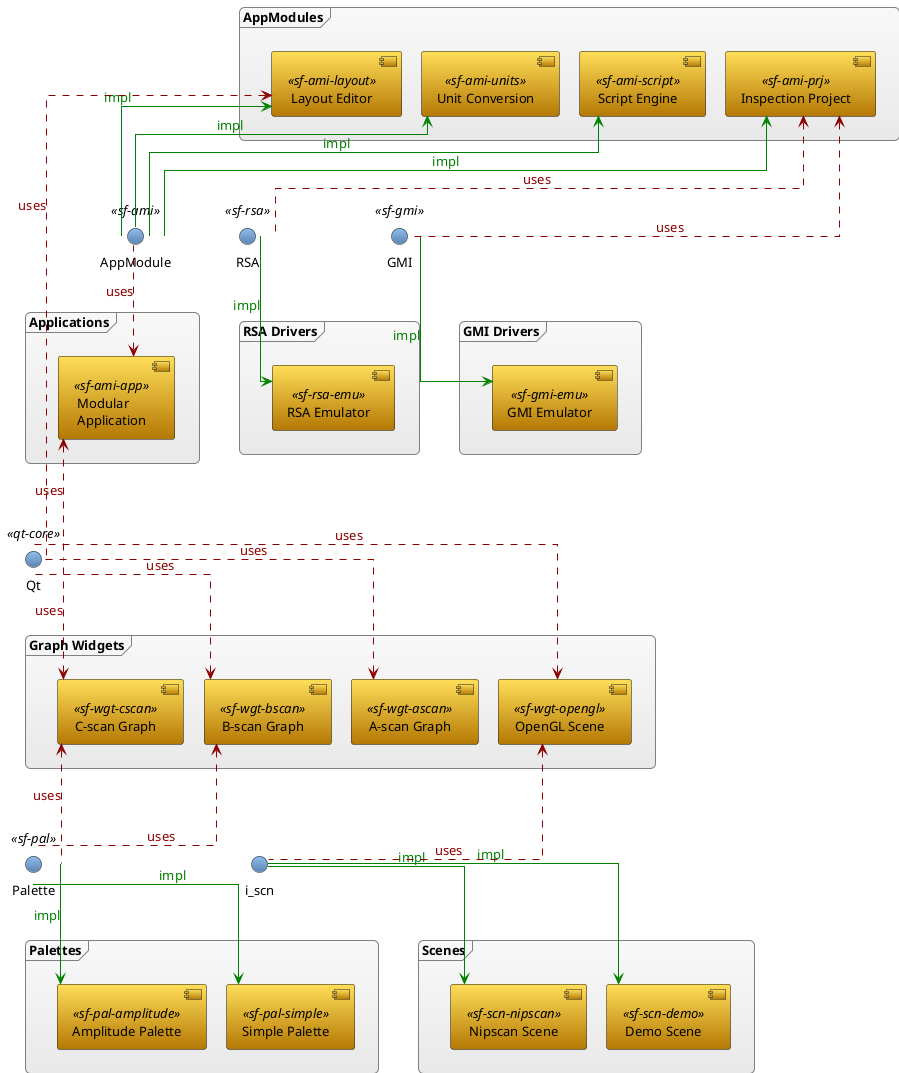

Module hierarchy

Graph Legend

• qt : Qt Plugin Interface as used in Designer
• ami : Application Module Interface
• gii : Generic Information Interface
• gmi : Generic Motion Interface
• rsa : Repetitive Signal Acquisition Interface
• smi : Scan mode Interface
• pal : Palette Interface
• scn : OpenGL Scene Interface

Most of the modules get, set exchange their settings and data using the gii and is therefore omitted in the graph.

Classes

General

General classes:

• sf::ThreadClosure
• sf::Thread
• sf::Mutex
• sf::Sync
• sf::TStaticSync

Template Classes:

• sf::TVector
• sf::TClosure
• sf::TListener
• sf::FunctionRegistry
• sf::TDynamicBuffer
• sf::TClassRegistration

Information Exchange

Classes/Interfaces for exchanging information between application modules (dynamic libraries).

Main classes:

• sf::Variable * (example: Variable Handler)
• sf::ResultData

Variable (settings) support:

• sf::Value
• sf::ScriptEngine
• sf::calculator()

Data support classes:

• sf::Range
• sf::RangeManager
• sf::FileMappedStorage

Unit conversion related (example: Unit Conversion)

• sf::getUnitConversion()
• sf::setUnitConversionHandler()
• sf::UnitConverter
• sf::UnitConversionServer

Qt Specific

Support:

• sf::Resource
• sf::Draw
• sf::Graph
• sf::OpenGLWidget using sf::OpenGLRenderer
• sf::GlobalShortcut (Windows/Linux)
