Class for creating and referencing global or local created parameters or settings called variables. This class allows linking of member functions of other classes to handle events generated. See the Example on how to use this class and the 'TVariableHandler' template class. More...

#include <Variable.h>

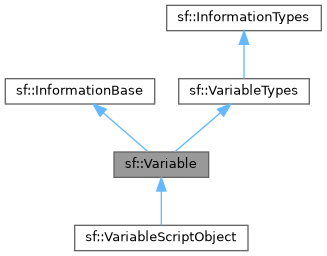

Inheritance diagram for sf::Variable:

[legend]

Collaboration diagram for sf::Variable:

[legend]

Public Member Functions
	Variable ()
	Default constructor for a default global variable.

	Variable (const Variable &v)
	Copy constructor. Copies also the Desired ID data member.

	Variable (id_type id, bool set_desired)
	Creates an instance having a reference with 'id'.

	Variable (const std::string &definition, id_type id_ofs=0)
	Creates a variable according to the definition std::string passed to it. The "id" from the definition string is the passed id offset added to form a final id. This used when instances are created from resource strings for multiple instances of the same module.

	Variable (const Definition &def, id_type id_ofs=0)
	Creates a variable using the passed definition structure.

	~Variable () override
	Virtual destructor.

bool	setup (const std::string &definition, id_type id_ofs=0)
	Creates a variable according to the definition std::string passed to it. The passed identifier offset 'id_ofs' is added to the id in the string. This used when instances are created from resource strings for multiple instances of the same module.

bool	setup (const Definition &definition, id_type id_ofs=0)
	Creates a variable using the definition structure.

bool	setup (const Variable &v)
	Sets reference to other variable. This is the only way for local variables.

bool	setup (id_type id, bool set_did=false)
	Sets reference to other by id. The global list of references is searched for the passed id and referenced when found. When found event veIdChanged is emitted. When the desired id was set and changed the veDesiredId event is emitted. Cannot be used for local variables.

bool	setId (id_type id, bool skip_self=false) const
	Only for local non exported owning variables to set the id after setup is called using a string. The id can not be zero and attached local variables are notify with a veNewId event.

bool	isValid () const
	Checks validity of the attached reference and used after a setup call.

bool	isConverted () const
	Checks if the current instance is converting floating point values.

bool	setConvert (bool enable)
	Enables or disables conversion of floating point values. If a change was triggered a veConverted event was emitted.

bool	isNumber () const
	Checks if the value is a number or not. Result is true when the value type is either Value::vitFloat or Value::vitInteger.

void	makeOwner ()
	Makes this instance owner of this variable instance and emits the appropriate events. When the owner really changes instances the new owner handler receives a veGetOwner event and the previous one veLostOwner.

Variable &	getOwner () const
	Gets a reference to the owner/server instance of this variable.

bool	isOwner () const
	Checks if this instance is the owner of this variable.

bool	isGlobal () const
	Check if this instance is a global variable or not.

bool	setGlobal (bool global)
	Sets the variable to be global. This can only happen if it attached to Zero Variable so when the id is zero.

bool	setExport (bool global)
	Makes an owning local variable appear globally. Useful when reading/creating instances from stored files. First as local instances and then making them global.

bool	isExported () const
	Checks if the variable is an exported local variable.

bool	isTemporary () const
	Checks if a temporary is used instead of current actual value.

void	setTemporary (bool on_off)
	When true is passed a local temporary value is used instead of current.

bool	applyTemporary (bool skip_self=true) const
	Applies the temporary value of this instance. Used mainly in dialogs to apply the changed value to become the actual current one. The 'skip_self' flag is set to true by default because an event was already sent using setCur().

bool	updateTemporary (bool skip_self=false)
	Updates the temporary value with the real value.

bool	isTemporaryDifferent () const
	Check if the temporary value differs from the actual value. Used mainly in dialogs to enable an apply button.

void	setHandler (VariableHandler *handler)
	Only one link is available at a time. Sets an event handler for this variable, passing NULL wil disable the link.

VariableHandler *	getHandler () const
	Gets the link set by setHandler().

size_type	emitEvent (EEvent event, bool skip_self=false)
	Initiate event for all instances of this variable depending on the event value. Returns the amount of effected variables by this call.

void	setDesiredId ()
	Sets the desired id member variable to the current attached reference id.

void	setDesiredId (id_type id)
	Sets the desired id member variable to the passed id. If the passed 'id' is zero the automatic attachment mechanism is disabled.

template<typename T >
void	setData (T data)
	Sets the data for this instance for user purposes.

template<typename T = uint64_t>
T	getData () const
	Gets the data for this instance for user purposes Set with setData().

bool	setCur (const Value &value, bool skip_self=false)
	Both return true if there was a change and notify all variables of the same variable id through an event.

bool	setCur (const Value &value, bool skip_self=false) const
	Same as setCur() but for const instances objects of this instance.

bool	loadCur (const Value &value) const
	Used in settings loading routines which use the owner to Set a new value. Checks if clients have write access and is global before applying the new value.

bool	increase (int steps, bool skip_self=false)
	Increase current variable value by step increments also negative values. Emits event veValueChange when a change is flags occurred.

bool	unsetFlag (flags_type flag, bool skip_self=false) const
	Unsets a flag or multiple flags of the attached VariableReference. Emits event veValueChange when a change in flags occurred.

bool	setFlag (flags_type flag, bool skip_self=false) const
	Sets a flag or multiple flags on the reference. Only for an owner can call this function successful. Emits event veFlagsChange when a change in flags occurred.

bool	updateFlags (flags_type flags, bool skip_self=false) const
	Replaces all flags with the passed flags. Only for an owner can call this function successful. Emits event veFlagsChange when a change in flags occurred.

flags_type	getFlags () const
	Gets the flags at the time the instance was created.

flags_type	getCurFlags () const
	Gets the current flags for this instance.

bool	setConvertValues (const std::string &unit, const Value &multiplier, const Value &offset, int digits=std::numeric_limits< int >::max()) const
	Sets the global conversion values and signals the clients. Only with owners a call is successful and effective. The formula is: **converted = (current multiplier) + offset*** When successful event veConverted emitted.

bool	setConvertValues (bool convert=true) const
	Enables or disables unit conversion. Only owners can make this call successfully. Depending on the globally set handler using setConvertHandler() this function calls the handler with event veConvert which then should apply the conversion values using setConvertValues() on the 'call_var' passed. When the global conversion handler has not been set the Makes a call to the unit conversion interface and tries to get conversion values from it. When the global conversion handler not set it uses the locally available conversion values.

id_type	getId () const
	Gets the current attached ID.

id_type	getDesiredId () const
	Gets the desired id of this instance.

std::string	getName (int levels=0) const
	Gets the name or a part of the name of the attached variable. Returns the variable name which is default (level 0) the full variable path name. When levels is 'n' and larger than zero the last 'n' levels are returned. When levels is 'n' and smaller than zero the first 'n' levels are omitted.

int	getNameLevelCount () const
	Gets the amount of levels of the full name path.

std::string	getUnit () const
	Gets the variable unit.

std::string	getUnit (bool converted) const
	Gets variable unit of converted or non-converted value.

std::string	getConvertOption () const
	Gets the conversion option string. This string determines how the value is to be converted when exporting.

EStringType	getStringType () const
	Gets the string type which is determined by the character(s) in the unit field. The maximum length is determined by the round value in the setup string.

std::string	getDescription () const
	Gets the purpose description of the attached variable.

bool	isFlag (int flag) const
	Gets if a flag or flags has been set currently.

std::string	getCurFlagsString () const
	Gets the current flags in a std::string form.

std::string	getFlagsString () const
	Gets the flags at setup in a std::string form.

bool	isReadOnly () const
	Checks if variable is allowed to change its value.

int	getSigDigits () const
	Gets the normalized decimal point location for this instance.

int	getSigDigits (bool converted) const
	Gets the normalized decimal point location for this instance converted or not converted.

int	getRequiredDigits () const
	Gets the required digits for this instance based on round, min and max values. Converted or not the value is the same. This method is useful for drawing a scale using numberString()

const Value &	getDef () const
	Gets the variable default value. Is converted when converted flag is true.

const Value &	getMin () const
	Gets the variable Minimum value. Is converted when converted flag is true.

const Value &	getMax () const
	Gets the variable Maximum value. Is converted when converted flag is true.

const Value &	getRnd () const
	Gets the variable Rounding value. Converted when converted flag is true.

const Value &	getCur () const
	Gets the variable current value. Is converted when converted flag is true.

const Value &	getDef (bool converted) const
	Gets the default value converted or not Is converted independent of the conversion flag.

const Value &	getMin (bool converted) const
	Gets the Minimum value converted or not converted independent of the conversion flag.

const Value &	getMax (bool converted) const
	Gets the Maximum value converted or not converted independent of the conversion flag.

const Value &	getRnd (bool converted) const
	Gets the Rounding value converted or not converted independent of the conversion flag.

const Value &	getCur (bool converted) const
	Gets the current value converted or not converted independent of the conversion flag.

const State::Vector &	getStates () const
	Gets the complete state vector as a reference.

size_type	getUsageCount () const
	Gets the usage count of this variable reference.

size_type	getStateCount () const
	Gets the state count.

size_type	getState (const Value &v) const
	Gets the state index of passed value when it exists.

std::string	getStateName (size_type state) const
	Gets the display name of the passed state's index.

const Value &	getStateValue (size_type state) const
	Gets the value of the passed state index.

Value::EType	getType () const
	Gets current type enumerate of this variable instance.

Variable &	operator= (const Variable &v)
	Assignment operator that attaches this instance to the same VariableReference as 'v'.

int	operator== (const Variable &v) const
	Comparison operator.

std::string	getCurString (bool use_states=true) const
	Gets current converted value in default formatted string or state. When a temporary value is used that value is returned.

std::string	getSetupString () const
	Gets the setup std::string for this variable.

void	clipRound (Value &value) const
	Clips the passed value between min and max values.

Value	convert (const Value &value, bool to_org=false) const
	Gets the passed value converted to new units or back again.

bool	writeUpdate (std::ostream &os) const
	Writes id and current value and flags to the stream.

bool	write (std::ostream &os) const
	Writes id and current value to the stream.

void	operator delete (void *)
	During events no instances should be deleted. The destructor will be called but the data still exist.

Public Member Functions inherited from sf::InformationBase
virtual	~InformationBase ()=default
	Virtual destructor so derived classes can be destroyed by a pointer of this type.

Public Member Functions inherited from sf::InformationTypes
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), data_type >	toDataType (T value) const
	Casts any type to a data_type value.

template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), T >	fromDataType (data_type value) const
	Casts a data_type value to a given type.

Static Public Member Functions
static void	initialize ()
	Must be called to initialize the statics which this class depends on.

static void	uninitialize ()
	Called when terminating the application.

static void	setConvertHandler (VariableHandler *handler)
	Special handler for converting float variables globally. Sets an event handler for this variable, passing NULL wil disable the handler.

static VariableHandler *	getConvertHandler ()
	Gets the link to the global conversion handler.

static std::string	filterString (const std::string &str, EStringType type, size_t max_len)
	Filters the passed string according the given type.

static std::string_view	getStringType (EStringType type)
	Gets the description string for passed string type.

static EStringType	getStringType (const std::string &flags)
	Gets the string type value of the passed string.

static Value::EType	getType (std::string_view type)
	Gets enumerate value of the passed string.

static std::string	getType (Value::EType type)
	Gets type string of given enumerate value.

static size_type	getCount ()
	Gets the amount of variables having different ID's in the system.

static size_type	getInstanceCount (bool global_only=true)
	Gets the total amount of variable instances in the system.

static PtrVector	getList ()
	Retrieves a list of instances available (global + exported). Useful in populating a selection dialog.

static std::string	getFieldName (int field)
	Gets the name of the passed field enumerate EField.

static const Variable &	getInstanceById (id_type id)
	Gets variable with the given id. When not found it returns the zero variable.

static Variable &	getInstanceById (id_type id, PtrVector &list)
	Gets variable with the given id. When not found it returns the zero variable.

static const Variable &	getInstanceById (id_type id, const PtrVector &list)
	Gets variable with the given id. When not found it returns the zero variable.

static bool	readUpdate (std::istream &is, bool skip_self=false, PtrVector &list=null_ref< PtrVector >())
	load single current value and flags from stream. If 'list' is other than the default that list is used to seek the according variable instead of the global list.

static Definition	getDefinition (const std::string &str)

static bool	read (std::istream &is, bool skip_self=false, PtrVector &list=null_ref< PtrVector >())

static bool	create (std::istream &is, PtrVector &list=null_ref< PtrVector >(), bool global=true, int &err_line=null_ref< int >())
	Reads multiple variable setup strings from stream separated by newline characters. Gets true when no error occurred during the process. On error returns false and line returns the error line in the stream. If 'list' is other than a NULL_REF the created variables are added to that list.

static flags_type	toFlags (const std::string &flags)
	Converts a std::string with flag characters to an integer.

static std::string	getFlagsString (flags_type flags)
	Gets the passed flags in a std::string form.

static std::string_view	getEventName (EEvent event)
	Gets the event name to make debugging easier.

Protected Member Functions
	Variable (bool global)
	Creates global or local variable instance depending on the value passed.

Friends
class	VariableHandler

class	VariableReference

class	VariableStatic

Additional Inherited Members
Public Types inherited from sf::VariableTypes
enum	EEvent : int { veConvert = 64000 , veNewId = -32000 , veUserGlobal , veFirstLocal = 0 , veFlagsChange = 1 , veValueChange = 2 , veInvalid = 3 , veConverted = 4 , veUserLocal = 5 , veFirstPrivate = 16000 , veIdChanged = 16001 , veDesiredId = 16002 , veRemove = 16003 , veGetOwner = 16004 , veLostOwner = 16005 , veLinked = 16006 , veUnlinked = 16007 , veSetup = 16008 , veUserPrivate = 16009 }
	Events send to the handler set with sf::Variable::setHandler. More...

enum	EField : int { vfId = 0 , vfName , vfUnit , vfFlags , vfDescription , vfType , vfConversionType , vfRound , vfDefault , vfMinimum , vfMaximum , vfFirstState }
	Enumeration of the order of fields in the setup string. More...

enum	EFlag : flags_type { flgReadonly = 1 << 0 , flgArchive = 1 << 1 , flgShare = 1 << 2 , flgLink = 1 << 3 , flgFunction = 1 << 4 , flgParameter = 1 << 5 , flgHidden = 1 << 6 , flgExport = 1 << 7 , flgWriteable = 1 << 8 }
	Enumeration type for specifying flags. More...

enum	EStringType : int { stNormal = 0 , stMulti , stPath , stDirectory , stFilename , stSubdirectory }
	Enumeration of string types used for filtering. More...

typedef TVector< Variable * >	PtrVector
	Vector for pointers to variables.

typedef TVector< Variable >	Vector
	Vector for instances of variables.

typedef TVector< VariableReference * >	ReferenceVector
	Types for internal use.

Public Types inherited from sf::InformationTypes
typedef unsigned long long	id_type
	Type used for the identifying integer (64-bits).

typedef int32_t	flags_type
	Type used for the flag integer.

typedef size_t	size_type
	Type used for size of vectors.

typedef uint64_t	data_type
	Type used for containing a single data element which is the largest integer.

typedef int64_t	sdata_type
	Type used for containing a single data element which is the largest signed integer.

typedef TVector< id_type >	IdVector
	Vector for lists of information ID's.

typedef TVector< InformationBase * >	Vector
	Vector for containing different information base derived classes.

Static Public Attributes inherited from sf::InformationTypes
static constexpr size_t	npos = std::numeric_limits<size_type>::max()
	Unsigned size value indicating not found or no index.

Detailed Description

Class for creating and referencing global or local created parameters or settings called variables. This class allows linking of member functions of other classes to handle events generated. See the Example on how to use this class and the 'TVariableHandler' template class.

Constructor & Destructor Documentation

◆ Variable() [1/6]

sf::Variable::Variable ( )

Default constructor for a default global variable.

◆ Variable() [2/6]

sf::Variable::Variable ( const Variable & v )

inline

Copy constructor. Copies also the Desired ID data member.

◆ Variable() [3/6]

sf::Variable::Variable	(	id_type	id,
		bool	set_desired
	)

inline

Creates an instance having a reference with 'id'.

Parameters

id	Identifying number.
set_desired	When true the desired id data member is set to the passed id as well.

◆ Variable() [4/6]

sf::Variable::Variable	(	const std::string &	definition,
		id_type	id_ofs = `0`
	)

explicit

Creates a variable according to the definition std::string passed to it. The "id" from the definition string is the passed id offset added to form a final id. This used when instances are created from resource strings for multiple instances of the same module.

Parameters

definition	Definition string.
id_ofs	offset for the 'id'.

◆ Variable() [5/6]

sf::Variable::Variable	(	const Definition &	def,
		id_type	id_ofs = `0`
	)

inlineexplicit

Creates a variable using the passed definition structure.

Parameters

def	Definition structure.
id_ofs	offset for the 'id'.

◆ ~Variable()

sf::Variable::~Variable ( )

override

Virtual destructor.

◆ Variable() [6/6]

sf::Variable::Variable ( bool global )

explicitprotected

Creates global or local variable instance depending on the value passed.

Parameters

global True when global, false when local.

Member Function Documentation

◆ applyTemporary()

bool sf::Variable::applyTemporary ( bool skip_self = true ) const

Applies the temporary value of this instance. Used mainly in dialogs to apply the changed value to become the actual current one. The 'skip_self' flag is set to true by default because an event was already sent using setCur().

Parameters

skip_self When 'true' this instance is skipped in emission of events.

Returns: True when the value was actually a change.

◆ clipRound()

void sf::Variable::clipRound ( Value & value ) const

Clips the passed value between min and max values.

Parameters

value Value to be clipped.

◆ convert()

Value sf::Variable::convert	(	const Value &	value,
		bool	to_org = `false`
	)		const

Gets the passed value converted to new units or back again.

Parameters

value	Value to be converted.
to_org	Direction of conversion.

Returns: Converted value.

◆ create()

static bool sf::Variable::create	(	std::istream &	is,
		PtrVector &	list = `null_ref< PtrVector >()`,
		bool	global = `true`,
		int &	err_line = `null_ref< int >()`
	)

static

Reads multiple variable setup strings from stream separated by newline characters. Gets true when no error occurred during the process. On error returns false and line returns the error line in the stream. If 'list' is other than a NULL_REF the created variables are added to that list.

Parameters

is
list
global
err_line

Returns: True when no errors occurred while reading/creating.

◆ emitEvent()

size_type sf::Variable::emitEvent	(	EEvent	event,
		bool	skip_self = `false`
	)

Initiate event for all instances of this variable depending on the event value. Returns the amount of effected variables by this call.

Parameters

event
skip_self	When 'true' this instance is skipped in emission of events.

Returns: Amount of events emitted.

◆ filterString()

static std::string sf::Variable::filterString	(	const std::string &	str,
		EStringType	type,
		size_t	max_len
	)

static

Filters the passed string according the given type.

Parameters

str	String to filter.
type	String type.
max_len	Maximum length of the string when non-zero.

Returns: Filtered string.

◆ getConvertHandler()

static VariableHandler * sf::Variable::getConvertHandler ( )

static

Gets the link to the global conversion handler.

◆ getConvertOption()

std::string sf::Variable::getConvertOption ( ) const

Gets the conversion option string. This string determines how the value is to be converted when exporting.

Returns: Option string.

◆ getCount()

static size_type sf::Variable::getCount ( )

static

Gets the amount of variables having different ID's in the system.

Returns: Amount of instances.

◆ getCur() [1/2]

const Value & sf::Variable::getCur ( ) const

Gets the variable current value. Is converted when converted flag is true.

Returns: Temporary value when it is used.

◆ getCur() [2/2]

const Value & sf::Variable::getCur ( bool converted ) const

Gets the current value converted or not converted independent of the conversion flag.

Parameters

converted True when getting the converted value.

Returns: Does not return the temporary value when it is used.

◆ getCurFlags()

flags_type sf::Variable::getCurFlags ( ) const

Gets the current flags for this instance.

Returns: Set of EFlag bits.

◆ getCurFlagsString()

std::string sf::Variable::getCurFlagsString ( ) const

Gets the current flags in a std::string form.

Returns: Flags as a string.

◆ getCurString()

std::string sf::Variable::getCurString ( bool use_states = true ) const

Gets current converted value in default formatted string or state. When a temporary value is used that value is returned.

Parameters

use_states Determines if a state string name is to be used.

Returns: String of the value.

◆ getData()

template<typename T >

T sf::Variable::getData ( ) const

Gets the data for this instance for user purposes Set with setData().

Template Parameters

T	Type of the data being retrieved.

Returns: Could be a pointer cast value.

◆ getDef() [1/2]

const Value & sf::Variable::getDef ( ) const

Gets the variable default value. Is converted when converted flag is true.

Returns

◆ getDef() [2/2]

const Value & sf::Variable::getDef ( bool converted ) const

Gets the default value converted or not Is converted independent of the conversion flag.

Parameters

converted True when getting the converted value.

◆ getDefinition()

static Definition sf::Variable::getDefinition ( const std::string & str )

static

Fills a definition structure from a string. On failure the _valid field is set to false.

Parameters

str	Definition string

Returns: Definition structure

◆ getDescription()

std::string sf::Variable::getDescription ( ) const

Gets the purpose description of the attached variable.

Returns: Description string.

◆ getDesiredId()

Variable::id_type sf::Variable::getDesiredId ( ) const

inline

Gets the desired id of this instance.

Returns: Desired id.

◆ getEventName()

static std::string_view sf::Variable::getEventName ( EEvent event )

static

Gets the event name to make debugging easier.

Parameters

event The event enumerate/number.

Returns: Event name.

◆ getFieldName()

static std::string sf::Variable::getFieldName ( int field )

static

Gets the name of the passed field enumerate EField.

Returns: Field string.

◆ getFlags()

flags_type sf::Variable::getFlags ( ) const

Gets the flags at the time the instance was created.

Returns: Set of EFlag bits.

◆ getFlagsString() [1/2]

std::string sf::Variable::getFlagsString ( ) const

Gets the flags at setup in a std::string form.

Returns: Flags as a string.

◆ getFlagsString() [2/2]

static std::string sf::Variable::getFlagsString ( flags_type flags )

static

Gets the passed flags in a std::string form.

Parameters

flags

Returns

◆ getHandler()

VariableHandler * sf::Variable::getHandler ( ) const

inline

Gets the link set by setHandler().

Returns: Link instance pointer

◆ getId()

id_type sf::Variable::getId ( ) const

Gets the current attached ID.

Returns: The id of the current attached variable.

◆ getInstanceById() [1/3]

static const Variable & sf::Variable::getInstanceById ( id_type id )

static

Gets variable with the given id. When not found it returns the zero variable.

Parameters

id	Variable id to seek.

Returns: When not found always zero variable.

◆ getInstanceById() [2/3]

const Variable & sf::Variable::getInstanceById	(	id_type	id,
		const PtrVector &	list
	)

inlinestatic

Gets variable with the given id. When not found it returns the zero variable.

Parameters

id	Variable id to seek.
list	Vector to use for lookup.

Returns: When not found always zero variable.

◆ getInstanceById() [3/3]

static Variable & sf::Variable::getInstanceById	(	id_type	id,
		PtrVector &	list
	)

static

Gets variable with the given id. When not found it returns the zero variable.

Parameters

id	Variable id to seek.
list	Vector to use for lookup.

Returns: When not found always zero variable.

◆ getInstanceCount()

static size_type sf::Variable::getInstanceCount ( bool global_only = true )

static

Gets the total amount of variable instances in the system.

Parameters

global_only When true, count only the global ones.

Returns: Amount of instances.

◆ getList()

static PtrVector sf::Variable::getList ( )

static

Retrieves a list of instances available (global + exported). Useful in populating a selection dialog.

Returns: Vector of instance pointers.

◆ getMax() [1/2]

const Value & sf::Variable::getMax ( ) const

Gets the variable Maximum value. Is converted when converted flag is true.

◆ getMax() [2/2]

const Value & sf::Variable::getMax ( bool converted ) const

Gets the Maximum value converted or not converted independent of the conversion flag.

Parameters

converted True when getting the converted value.

Returns

◆ getMin() [1/2]

const Value & sf::Variable::getMin ( ) const

Gets the variable Minimum value. Is converted when converted flag is true.

◆ getMin() [2/2]

const Value & sf::Variable::getMin ( bool converted ) const

Gets the Minimum value converted or not converted independent of the conversion flag.

Parameters

converted True when getting the converted value.

◆ getName()

std::string sf::Variable::getName ( int levels = 0 ) const

Gets the name or a part of the name of the attached variable. Returns the variable name which is default (level 0) the full variable path name. When levels is 'n' and larger than zero the last 'n' levels are returned. When levels is 'n' and smaller than zero the first 'n' levels are omitted.

Parameters

levels Amount of required levels.

Returns: Full or part of name depending on level.

◆ getNameLevelCount()

int sf::Variable::getNameLevelCount ( ) const

Gets the amount of levels of the full name path.

Returns: Total name levels available.

◆ getOwner()

Variable & sf::Variable::getOwner ( ) const

Gets a reference to the owner/server instance of this variable.

Returns: Owner reference.

◆ getRequiredDigits()

int sf::Variable::getRequiredDigits ( ) const

Gets the required digits for this instance based on round, min and max values. Converted or not the value is the same. This method is useful for drawing a scale using numberString()

Returns: Amount of digits.

◆ getRnd() [1/2]

const Value & sf::Variable::getRnd ( ) const

Gets the variable Rounding value. Converted when converted flag is true.

◆ getRnd() [2/2]

const Value & sf::Variable::getRnd ( bool converted ) const

Gets the Rounding value converted or not converted independent of the conversion flag.

Parameters

converted True when getting the converted value.

Returns

◆ getSetupString()

std::string sf::Variable::getSetupString ( ) const

Gets the setup std::string for this variable.

◆ getSigDigits() [1/2]

int sf::Variable::getSigDigits ( ) const

Gets the normalized decimal point location for this instance.

Returns: Amount of digits.

◆ getSigDigits() [2/2]

int sf::Variable::getSigDigits ( bool converted ) const

Gets the normalized decimal point location for this instance converted or not converted.

Parameters

converted True when needing the converted amount.

Returns: Amount of digits.

◆ getState()

size_type sf::Variable::getState ( const Value & v ) const

Gets the state index of passed value when it exists.

Parameters

v	Value to lookup.

Returns: Valid index and when it does not exist it returns npos.

◆ getStateCount()

size_type sf::Variable::getStateCount ( ) const

Gets the state count.

Returns: Amount of states.

◆ getStateName()

std::string sf::Variable::getStateName ( size_type state ) const

Gets the display name of the passed state's index.

Parameters

state Index of the state.

Returns: Display name.

◆ getStates()

const State::Vector & sf::Variable::getStates ( ) const

Gets the complete state vector as a reference.

◆ getStateValue()

const Value & sf::Variable::getStateValue ( size_type state ) const

Gets the value of the passed state index.

Parameters

state Index of the state.

Returns: Value of the passed state index.

◆ getStringType() [1/3]

EStringType sf::Variable::getStringType ( ) const

Gets the string type which is determined by the character(s) in the unit field. The maximum length is determined by the round value in the setup string.

Returns: Enumerate value of EStringType

◆ getStringType() [2/3]

static EStringType sf::Variable::getStringType ( const std::string & flags )

static

Gets the string type value of the passed string.

Parameters

flags String containing flag(s)

Returns: The enumerate type of the string.

◆ getStringType() [3/3]

static std::string_view sf::Variable::getStringType ( EStringType type )

static

Gets the description string for passed string type.

Parameters

type	Enumerate value.

Returns: Name of the string type.

◆ getType() [1/3]

Value::EType sf::Variable::getType ( ) const

Gets current type enumerate of this variable instance.

Returns: Enumerate type value.

◆ getType() [2/3]

Value::EType sf::Variable::getType ( std::string_view type )

inlinestatic

Gets enumerate value of the passed string.

Parameters

type	String representing the type.

Returns: Enumerate type value.

◆ getType() [3/3]

std::string sf::Variable::getType ( Value::EType type )

inlinestatic

Gets type string of given enumerate value.

Parameters

type	Enumerate type.

Returns: String of the type.

◆ getUnit() [1/2]

std::string sf::Variable::getUnit ( ) const

Gets the variable unit.

Returns: Unit string.

◆ getUnit() [2/2]

std::string sf::Variable::getUnit ( bool converted ) const

Gets variable unit of converted or non-converted value.

Parameters

converted True when getting the converted value.

Returns: Unit string.

◆ getUsageCount()

size_type sf::Variable::getUsageCount ( ) const

Gets the usage count of this variable reference.

Returns

◆ increase()

bool sf::Variable::increase	(	int	steps,
		bool	skip_self = `false`
	)

Increase current variable value by step increments also negative values. Emits event veValueChange when a change is flags occurred.

Parameters

steps	Amount of increments (>0) or decrements (<0)
skip_self	Skip event on this instance.

Returns: True if this function made a difference.

◆ initialize()

static void sf::Variable::initialize ( )

static

Must be called to initialize the statics which this class depends on.

◆ isConverted()

bool sf::Variable::isConverted ( ) const

Checks if the current instance is converting floating point values.

Returns: True when converting.

◆ isExported()

bool sf::Variable::isExported ( ) const

Checks if the variable is an exported local variable.

Returns: True if exported.

◆ isFlag()

bool sf::Variable::isFlag ( int flag ) const

Gets if a flag or flags has been set currently.

Parameters

flag	Single value or a multiple of EFlag values.

Returns: True when the flag(s) were set.

◆ isGlobal()

bool sf::Variable::isGlobal ( ) const

inline

Check if this instance is a global variable or not.

Returns: True when global.

◆ isNumber()

bool sf::Variable::isNumber ( ) const

Checks if the value is a number or not. Result is true when the value type is either Value::vitFloat or Value::vitInteger.

Returns: True if the current variable value is a number.

◆ isOwner()

bool sf::Variable::isOwner ( ) const

Checks if this instance is the owner of this variable.

Returns: True when owner.

◆ isReadOnly()

bool sf::Variable::isReadOnly ( ) const

Checks if variable is allowed to change its value.

Returns: True when readonly.

◆ isTemporary()

bool sf::Variable::isTemporary ( ) const

Checks if a temporary is used instead of current actual value.

Returns: True when temporary is enabled.

◆ isTemporaryDifferent()

bool sf::Variable::isTemporaryDifferent ( ) const

Check if the temporary value differs from the actual value. Used mainly in dialogs to enable an apply button.

Returns: True when different.

◆ isValid()

bool sf::Variable::isValid ( ) const

Checks validity of the attached reference and used after a setup call.

Returns: True if the variable is valid.

◆ loadCur()

bool sf::Variable::loadCur ( const Value & value ) const

Used in settings loading routines which use the owner to Set a new value. Checks if clients have write access and is global before applying the new value.

Parameters

value

Returns: True on success of making a change.

◆ makeOwner()

void sf::Variable::makeOwner ( )

Makes this instance owner of this variable instance and emits the appropriate events. When the owner really changes instances the new owner handler receives a veGetOwner event and the previous one veLostOwner.

◆ operator delete()

void sf::Variable::operator delete ( void * )

During events no instances should be deleted. The destructor will be called but the data still exist.

◆ operator=()

Variable & sf::Variable::operator= ( const Variable & v )

inline

Assignment operator that attaches this instance to the same VariableReference as 'v'.

◆ operator==()

int sf::Variable::operator== ( const Variable & v ) const

inline

Comparison operator.

◆ read()

static bool sf::Variable::read	(	std::istream &	is,
		bool	skip_self = `false`,
		PtrVector &	list = `null_ref< PtrVector >()`
	)

static

load single current values from stream. If 'list' is other than a NULL_REF that list is used to seek the according variable instead of the global list.

Parameters

is
skip_self	When 'true' this instance is skipped in emission of events.
list

Returns

◆ readUpdate()

static bool sf::Variable::readUpdate	(	std::istream &	is,
		bool	skip_self = `false`,
		PtrVector &	list = `null_ref< PtrVector >()`
	)

static

load single current value and flags from stream. If 'list' is other than the default that list is used to seek the according variable instead of the global list.

Parameters

is
skip_self	When 'true' this instance is skipped in emission of events.
list

Returns

◆ setConvert()

bool sf::Variable::setConvert ( bool enable )

Enables or disables conversion of floating point values. If a change was triggered a veConverted event was emitted.

Parameters

enable To enable pass 'true'. to disable 'false'.

Returns: Value returned by isConverted().

◆ setConvertHandler()

static void sf::Variable::setConvertHandler ( VariableHandler * handler )

static

Special handler for converting float variables globally. Sets an event handler for this variable, passing NULL wil disable the handler.

Parameters

handler Handler from conversion interface.

◆ setConvertValues() [1/2]

bool sf::Variable::setConvertValues ( bool convert = true ) const

Enables or disables unit conversion. Only owners can make this call successfully.
Depending on the globally set handler using setConvertHandler() this function calls the handler with event veConvert which then should apply the conversion values using setConvertValues() on the 'call_var' passed.
When the global conversion handler has not been set the Makes a call to the unit conversion interface and tries to get conversion values from it.
When the global conversion handler not set it uses the locally available conversion values.

Parameters

convert When true conversion is enabled and false disabled.

Returns: True on success of getting the values.

◆ setConvertValues() [2/2]

bool sf::Variable::setConvertValues	(	const std::string &	unit,
		const Value &	multiplier,
		const Value &	offset,
		int	digits = `std::numeric_limits< int >::max()`
	)		const

Sets the global conversion values and signals the clients. Only with owners a call is successful and effective. The formula is: converted = (current * multiplier) + offset When successful event veConverted emitted.

Parameters

unit	New unit string.
multiplier	Multiplier value.
offset	offset value.
digits	Significant digits for the new unit.

Returns

◆ setCur() [1/2]

bool sf::Variable::setCur	(	const Value &	value,
		bool	skip_self = `false`
	)

Both return true if there was a change and notify all variables of the same variable id through an event.

Parameters

value	Sets a new current value.
skip_self	When 'true' this instance is skipped in emission of events.

Returns: True when the value was actually changed.

◆ setCur() [2/2]

bool sf::Variable::setCur	(	const Value &	value,
		bool	skip_self = `false`
	)		const

inline

Same as setCur() but for const instances objects of this instance.

Parameters

value	Sets a new current value.
skip_self	When 'true' this instance is skipped in emission of events.

Returns: True when the value was actually changed.

◆ setData()

template<typename T >

void sf::Variable::setData ( T data )

Sets the data for this instance for user purposes.

Template Parameters

T	Type of the data being set.

Parameters

data	Could be a pointer cast value.

◆ setDesiredId() [1/2]

void sf::Variable::setDesiredId ( )

Sets the desired id member variable to the current attached reference id.

◆ setDesiredId() [2/2]

void sf::Variable::setDesiredId ( id_type id )

Sets the desired id member variable to the passed id. If the passed 'id' is zero the automatic attachment mechanism is disabled.

◆ setExport()

bool sf::Variable::setExport ( bool global )

Makes an owning local variable appear globally. Useful when reading/creating instances from stored files. First as local instances and then making them global.

Parameters

global True to export as global and False to revert it.

Returns: True on success.

◆ setFlag()

bool sf::Variable::setFlag	(	flags_type	flag,
		bool	skip_self = `false`
	)		const

Sets a flag or multiple flags on the reference. Only for an owner can call this function successful. Emits event veFlagsChange when a change in flags occurred.

Parameters

flag	Single or multiple values of EFlag.
skip_self	Skip event on this instance.

Returns: True when a change was made.

◆ setGlobal()

bool sf::Variable::setGlobal ( bool global )

Sets the variable to be global. This can only happen if it attached to Zero Variable so when the id is zero.

Parameters

global True when global and False when local.

Returns: True on success.

◆ setHandler()

void sf::Variable::setHandler ( VariableHandler * handler )

Only one link is available at a time. Sets an event handler for this variable, passing NULL wil disable the link.

Parameters

handler

◆ setId()

bool sf::Variable::setId	(	id_type	id,
		bool	skip_self = `false`
	)		const

Only for local non exported owning variables to set the id after setup is called using a string. The id can not be zero and attached local variables are notify with a veNewId event.

Parameters

id	Variable identifier
skip_self	When false the event to its own handler is skipped to be emitted.

Returns: True on success.

◆ setTemporary()

void sf::Variable::setTemporary ( bool on_off )

When true is passed a local temporary value is used instead of current.

Parameters

on_off

◆ setup() [1/4]

bool sf::Variable::setup	(	const Definition &	definition,
		id_type	id_ofs = `0`
	)

Creates a variable using the definition structure.

Parameters

definition	Definition structure.
id_ofs	offset for the 'id'.

Returns: True on success.

◆ setup() [2/4]

bool sf::Variable::setup	(	const std::string &	definition,
		id_type	id_ofs = `0`
	)

inline

Creates a variable according to the definition std::string passed to it. The passed identifier offset 'id_ofs' is added to the id in the string. This used when instances are created from resource strings for multiple instances of the same module.

Parameters

definition	Comma separated definition string.
id_ofs	offset for the 'id'.

Returns: True on success.

◆ setup() [3/4]

bool sf::Variable::setup ( const Variable & v )

inline

Sets reference to other variable. This is the only way for local variables.

Parameters

v

Returns

◆ setup() [4/4]

bool sf::Variable::setup	(	id_type	id,
		bool	set_did = `false`
	)

inline

Sets reference to other by id. The global list of references is searched for the passed id and referenced when found. When found event veIdChanged is emitted. When the desired id was set and changed the veDesiredId event is emitted. Cannot be used for local variables.

Parameters

id	Identifier.
set_did	When true the desired id is set to the passed 'id'.

Returns: True when found and referenced.

◆ toFlags()

static flags_type sf::Variable::toFlags ( const std::string & flags )

static

Converts a std::string with flag characters to an integer.

Parameters

flags

Returns

◆ uninitialize()

static void sf::Variable::uninitialize ( )

static

Called when terminating the application.

◆ unsetFlag()

bool sf::Variable::unsetFlag	(	flags_type	flag,
		bool	skip_self = `false`
	)		const

Unsets a flag or multiple flags of the attached VariableReference. Emits event veValueChange when a change in flags occurred.

Parameters

flag	Single or multiple values of EFlag.
skip_self	When 'true' this instance is skipped in emission of events.

Returns: True when a change was made.

◆ updateFlags()

bool sf::Variable::updateFlags	(	flags_type	flags,
		bool	skip_self = `false`
	)		const

Replaces all flags with the passed flags. Only for an owner can call this function successful. Emits event veFlagsChange when a change in flags occurred.

Parameters

flags	Single or multiple values of EFlag.
skip_self	When 'true' this instance is skipped in emission of events.

Returns: True when a change was made.

◆ updateTemporary()

bool sf::Variable::updateTemporary ( bool skip_self = false )

Updates the temporary value with the real value.

Used mainly in dialogs to update the temporary value with real/actual value.

Parameters

skip_self When 'true' this instance is skipped in emission of events.

Returns: True when a change was caused.

◆ write()

bool sf::Variable::write ( std::ostream & os ) const

Writes id and current value to the stream.

Parameters

os

Returns

◆ writeUpdate()

bool sf::Variable::writeUpdate ( std::ostream & os ) const

Writes id and current value and flags to the stream.

Friends And Related Symbol Documentation

◆ VariableHandler

friend class VariableHandler

friend

◆ VariableReference

friend class VariableReference

friend

◆ VariableStatic

friend class VariableStatic

friend

The documentation for this class was generated from the following file:

Variable.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Variable() [1/6]

◆ Variable() [2/6]

◆ Variable() [3/6]

◆ Variable() [4/6]

◆ Variable() [5/6]

◆ ~Variable()

◆ Variable() [6/6]

Member Function Documentation

◆ applyTemporary()

◆ clipRound()

◆ convert()

◆ create()

◆ emitEvent()

◆ filterString()

◆ getConvertHandler()

◆ getConvertOption()

◆ getCount()

◆ getCur() [1/2]

◆ getCur() [2/2]

◆ getCurFlags()

◆ getCurFlagsString()

◆ getCurString()

◆ getData()

◆ getDef() [1/2]

◆ getDef() [2/2]

◆ getDefinition()

◆ getDescription()

◆ getDesiredId()

◆ getEventName()

◆ getFieldName()

◆ getFlags()

◆ getFlagsString() [1/2]

◆ getFlagsString() [2/2]

◆ getHandler()

◆ getId()

◆ getInstanceById() [1/3]

◆ getInstanceById() [2/3]

◆ getInstanceById() [3/3]

◆ getInstanceCount()

◆ getList()

◆ getMax() [1/2]

◆ getMax() [2/2]

◆ getMin() [1/2]

◆ getMin() [2/2]

◆ getName()

◆ getNameLevelCount()

◆ getOwner()

◆ getRequiredDigits()

◆ getRnd() [1/2]

◆ getRnd() [2/2]

◆ getSetupString()

◆ getSigDigits() [1/2]

◆ getSigDigits() [2/2]

◆ getState()

◆ getStateCount()

◆ getStateName()

◆ getStates()

◆ getStateValue()

◆ getStringType() [1/3]

◆ getStringType() [2/3]

◆ getStringType() [3/3]

◆ getType() [1/3]

◆ getType() [2/3]

◆ getType() [3/3]

◆ getUnit() [1/2]

◆ getUnit() [2/2]

◆ getUsageCount()

◆ increase()

◆ initialize()

◆ isConverted()

◆ isExported()

◆ isFlag()

◆ isGlobal()
