sf::VariableTypes Class Reference

This base class contains all local types of used in the Variable class. Multiple inheritance makes these types local for other classes as well. Making code more readable and also prevents name space problems. More...

#include <VariableTypes.h>

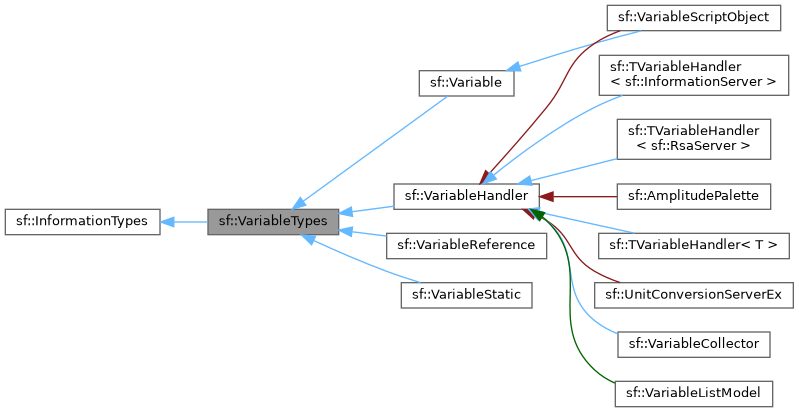

Inheritance diagram for sf::VariableTypes:

Collaboration diagram for sf::VariableTypes:

Classes
struct	Definition
	Structure used to set up a variable The method Variable::getDefinition() transforms the definition string into this structure. More...
class	State
	Type containing a name referencing a value and is called a state. More...

Public Types
enum	EEvent : int {   veConvert = 64000 , veNewId = -32000 , veUserGlobal , veFirstLocal = 0 ,   veFlagsChange = 1 , veValueChange = 2 , veInvalid = 3 , veConverted = 4 ,   veUserLocal = 5 , veFirstPrivate = 16000 , veIdChanged = 16001 , veDesiredId = 16002 ,   veRemove = 16003 , veGetOwner = 16004 , veLostOwner = 16005 , veLinked = 16006 ,   veUnlinked = 16007 , veSetup = 16008 , veUserPrivate = 16009 }
	Events send to the handler set with sf::Variable::setHandler. More...
enum	EField : int {   vfId = 0 , vfName , vfUnit , vfFlags ,   vfDescription , vfType , vfConversionType , vfRound ,   vfDefault , vfMinimum , vfMaximum , vfFirstState }
	Enumeration of the order of fields in the setup string. More...
enum	EFlag : flags_type {   flgReadonly = 1 << 0 , flgArchive = 1 << 1 , flgShare = 1 << 2 , flgLink = 1 << 3 ,   flgFunction = 1 << 4 , flgParameter = 1 << 5 , flgHidden = 1 << 6 , flgExport = 1 << 7 ,   flgWriteable = 1 << 8 }
	Enumeration type for specifying flags. More...
enum	EStringType : int {   stNormal = 0 , stMulti , stPath , stDirectory ,   stFilename , stSubdirectory }
	Enumeration of string types used for filtering. More...
typedef TVector< Variable * >	PtrVector
	Vector for pointers to variables.
typedef TVector< Variable >	Vector
	Vector for instances of variables.
typedef TVector< VariableReference * >	ReferenceVector
	Types for internal use.
Public Types inherited from sf::InformationTypes
typedef unsigned long long	id_type
	Type used for the identifying integer (64-bits).
typedef int32_t	flags_type
	Type used for the flag integer.
typedef size_t	size_type
	Type used for size of vectors.
typedef uint64_t	data_type
	Type used for containing a single data element which is the largest integer.
typedef int64_t	sdata_type
	Type used for containing a single data element which is the largest signed integer.
typedef TVector< id_type >	IdVector
	Vector for lists of information ID's.
typedef TVector< InformationBase * >	Vector
	Vector for containing different information base derived classes.

Additional Inherited Members
Public Member Functions inherited from sf::InformationTypes
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), data_type >	toDataType (T value) const
	Casts any type to a data_type value.
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), T >	fromDataType (data_type value) const
	Casts a data_type value to a given type.
Static Public Attributes inherited from sf::InformationTypes
static constexpr size_t	npos = std::numeric_limits<size_type>::max()
	Unsigned size value indicating not found or no index.

Detailed Description

This base class contains all local types of used in the Variable class. Multiple inheritance makes these types local for other classes as well. Making code more readable and also prevents name space problems.

Member Typedef Documentation

PtrVector

typedef TVector<Variable*> sf::VariableTypes::PtrVector

Vector for pointers to variables.

ReferenceVector

typedef TVector<VariableReference*> sf::VariableTypes::ReferenceVector

Types for internal use.

Vector

typedef TVector<Variable> sf::VariableTypes::Vector

Vector for instances of variables.

Member Enumeration Documentation

EEvent

enum sf::VariableTypes::EEvent : int

Events send to the handler set with sf::Variable::setHandler.

For broadcast events the variable parameter is not the variable that called the sf::Variable::setHandler method and the param parameter isn't also the one passed to function sf::Variable::setHandler either.

Enumerator
veConvert	Special event passed to the global conversion handler.
veNewId	Global events for a new variable with ID.
veUserGlobal	First user global event.
veFirstLocal	From here only specific variables are called. Indicates first local event.
veFlagsChange	current flags have been changed.
veValueChange	current value has been changed. Can be local when temp value is used.
veInvalid	Variable reference is becoming invalid for this instance. Owner is deleted.
veConverted	Conversion values have been changed or conversion was enables/disabled.
veUserLocal	First event which can be used by an implementation for its own purposes.
veFirstPrivate	Indicates first private event.
veIdChanged	This variable instance ID changed.
veDesiredId	This variable instance desired ID changed.
veRemove	This variable instance is being removed.
veGetOwner	This instance has become owner.
veLostOwner	This instance has lost ownership.
veLinked	This instance event handler has been linked.
veUnlinked	This instance has lost event handler link.
veSetup	This variable instance was set up.
veUserPrivate	Start of user private event ID's.

EField

enum sf::VariableTypes::EField : int

Enumeration of the order of fields in the setup string.

Enumerator
vfId	Integer identifier
vfName	Name(path) where '|' character is used to separate the group.
vfUnit
vfFlags	Single character flags, see EFlag.
vfDescription	Description of the variable.
vfType	Type of the contained value, see sf::Value::EType.
vfConversionType	Type of the contained value.
vfRound	Rounding value. Makes the value a multiple of this value. Also used for displaying amount of digits.
vfDefault	Default and initial
vfMinimum	Minimum allowed value.
vfMaximum	Maximum allowed value.
vfFirstState	First state id any

EFlag

enum sf::VariableTypes::EFlag : flags_type

Enumeration type for specifying flags.

Enumerator
flgReadonly	Represented by character 'R'. Only the owner can change it.
flgArchive	Represented by character 'A'. Variable needs saving when storing results.
flgShare	Represented by character 'S'. Parameter may be exported outside the application. When communicating over a network connection only these variables are exported.
flgLink	Represented by character 'L'.
flgFunction	Represented by character 'F'. Variable is used as a function and is reset or changed by the owning instance after execution.
flgParameter	Represented by character 'P'. Variable is a parameter and indicates that it is needed for configuration of an application. This makes it possible to distinguishes between operational settings and device configuration parameters.
flgHidden	Represented by character 'H'. For selection of client only when listing.
flgExport	Represented by character 'E'. Set when Local variable may be exported globally. Exported local variables are readonly by default.
flgWriteable	Represented by character 'W'. Set when a local variable is exported globally and may be written globally.

EStringType

enum sf::VariableTypes::EStringType : int

Enumeration of string types used for filtering.

Enumerator
stNormal	This is a straight normal string where control characters are not converted to any multibyte translation.
stMulti	This is a multi line string with new-line control characters.
stPath	The string contains a complete filepath.
stDirectory	The string contains a complete directory a drive letter.
stFilename	The string contains a filename.
stSubdirectory	The string contains a subdirectory having an ending backslash and no drive letter or starting backslash.

---

The documentation for this class was generated from the following file:

• VariableTypes.h
