sf::VariableReference Struct Reference

#include <VariableReference.h>

Inheritance diagram for sf::VariableReference:

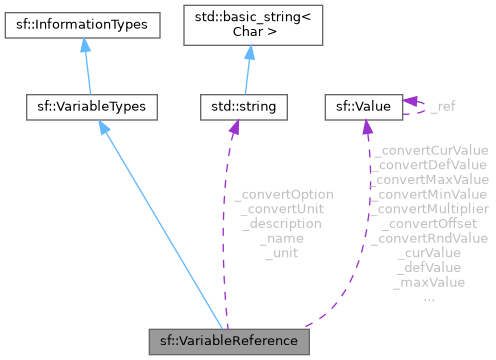

Collaboration diagram for sf::VariableReference:

Public Member Functions

 VariableReference (bool global)
 Constructor when global is true the reference is added to the global list.

 ~VariableReference ()
 Destructor.

void copy (const VariableReference &ref)
 Copies the members to this instance except for the list and global members.

- Public Member Functions inherited from sf::InformationTypes
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), data_typetoDataType (T value) const
 Casts any type to a data_type value.

template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), T > fromDataType (data_type value) const
 Casts a data_type value to a given type.


Public Attributes

bool _global {false}

bool _exported {false}

bool _valid {false}

id_type _id {0}

flags_type _flags {0}

flags_type _curFlags {0}

Value::EType _type {Value::vitUndefined}

std::string _name

std::string _description

std::string _unit

Value _curValue

Value _defValue

Value _maxValue

Value _minValue

Value _rndValue

int _sigDigits {0}

State::Vector _states

PtrVector _list

int _localActive {0}

std::string _convertOption

std::string _convertUnit

Value _convertCurValue

Value _convertDefValue

Value _convertMaxValue

Value _convertMinValue

Value _convertRndValue

int _convertSigDigits {0}

Value _convertMultiplier

Value _convertOffset


Additional Inherited Members

- Public Types inherited from sf::VariableTypes
enum  EEvent : int {
  veConvert = 64000 , veNewId = -32000 , veUserGlobal , veFirstLocal = 0 ,
  veFlagsChange = 1 , veValueChange = 2 , veInvalid = 3 , veConverted = 4 ,
  veUserLocal = 5 , veFirstPrivate = 16000 , veIdChanged = 16001 , veDesiredId = 16002 ,
  veRemove = 16003 , veGetOwner = 16004 , veLostOwner = 16005 , veLinked = 16006 ,
  veUnlinked = 16007 , veSetup = 16008 , veUserPrivate = 16009
}
 Events send to the handler set with sf::Variable::setHandler. More...

enum  EField : int {
  vfId = 0 , vfName , vfUnit , vfFlags ,
  vfDescription , vfType , vfConversionType , vfRound ,
  vfDefault , vfMinimum , vfMaximum , vfFirstState
}
 Enumeration of the order of fields in the setup string. More...

enum  EFlag : flags_type {
  flgReadonly = 1 << 0 , flgArchive = 1 << 1 , flgShare = 1 << 2 , flgLink = 1 << 3 ,
  flgFunction = 1 << 4 , flgParameter = 1 << 5 , flgHidden = 1 << 6 , flgExport = 1 << 7 ,
  flgWriteable = 1 << 8
}
 Enumeration type for specifying flags. More...

enum  EStringType : int {
  stNormal = 0 , stMulti , stPath , stDirectory ,
  stFilename , stSubdirectory
}
 Enumeration of string types used for filtering. More...

typedef TVector< Variable * > PtrVector
 Vector for pointers to variables.

typedef TVector< VariableVector
 Vector for instances of variables.

typedef TVector< VariableReference * > ReferenceVector
 Types for internal use.

- Public Types inherited from sf::InformationTypes
typedef unsigned long long id_type
 Type used for the identifying integer (64-bits).

typedef int32_t flags_type
 Type used for the flag integer.

typedef size_t size_type
 Type used for size of vectors.

typedef uint64_t data_type
 Type used for containing a single data element which is the largest integer.

typedef int64_t sdata_type
 Type used for containing a single data element which is the largest signed integer.

typedef TVector< id_typeIdVector
 Vector for lists of information ID's.

typedef TVector< InformationBase * > Vector
 Vector for containing different information base derived classes.

- Static Public Attributes inherited from sf::InformationTypes
static constexpr size_t npos = std::numeric_limits<size_type>::max()
 Unsigned size value indicating not found or no index.


Detailed Description

Class referenced by the Variable class which carries the actual data. This type is never directly used.

Constructor & Destructor Documentation

◆ VariableReference()

sf::VariableReference::VariableReference ( bool  global)
explicit

Constructor when global is true the reference is added to the global list.

Parameters
global

◆ ~VariableReference()

sf::VariableReference::~VariableReference ( )

Destructor.

Member Function Documentation

◆ copy()

void sf::VariableReference::copy ( const VariableReference ref)

Copies the members to this instance except for the list and global members.

Member Data Documentation

◆ _convertCurValue

Value sf::VariableReference::_convertCurValue

Converted current value.

◆ _convertDefValue

Value sf::VariableReference::_convertDefValue

Converted default value.

◆ _convertMaxValue

Value sf::VariableReference::_convertMaxValue

Converted maximum value.

◆ _convertMinValue

Value sf::VariableReference::_convertMinValue

Converted minimum value.

◆ _convertMultiplier

Value sf::VariableReference::_convertMultiplier

Multiplication value for convert calculation.

◆ _convertOffset

Value sf::VariableReference::_convertOffset

offset value for convert calculation.

◆ _convertOption

std::string sf::VariableReference::_convertOption

Conversion option.

◆ _convertRndValue

Value sf::VariableReference::_convertRndValue

Converted rounding value.

◆ _convertSigDigits

int sf::VariableReference::_convertSigDigits {0}

Significant digits after conversion.

◆ _convertUnit

std::string sf::VariableReference::_convertUnit

Converted unit. String length of unit is used as a flag for conversion enabling.

◆ _curFlags

flags_type sf::VariableReference::_curFlags {0}

Holds the current flags.

◆ _curValue

Value sf::VariableReference::_curValue

current value.

◆ _defValue

Value sf::VariableReference::_defValue

Default value.

◆ _description

std::string sf::VariableReference::_description

Describes the variable.

◆ _exported

bool sf::VariableReference::_exported {false}

Holds the exported flag for local variables.

◆ _flags

flags_type sf::VariableReference::_flags {0}

Holds the flags at creation.

◆ _global

bool sf::VariableReference::_global {false}

Holds the flag about the global status of this reference.

◆ _id

id_type sf::VariableReference::_id {0}

In case of a global instance this value is a unique ID.

◆ _list

PtrVector sf::VariableReference::_list

list of variables attached to this reference.

◆ _localActive

int sf::VariableReference::_localActive {0}

Static this counter is increased if a local event is generated.
It is decreased when it returns from the event handler.

◆ _maxValue

Value sf::VariableReference::_maxValue

Maximum value.

◆ _minValue

Value sf::VariableReference::_minValue

Minimum value.

◆ _name

std::string sf::VariableReference::_name

Name path separated by '|' characters.

◆ _rndValue

Value sf::VariableReference::_rndValue

Rounding value.

◆ _sigDigits

int sf::VariableReference::_sigDigits {0}

Significant digits based on the round value.

◆ _states

State::Vector sf::VariableReference::_states

Vector which holds all states of this instance.

◆ _type

Value::EType sf::VariableReference::_type {Value::vitUndefined}

Holds the internal type of the variable.

◆ _unit

std::string sf::VariableReference::_unit

contains the SI unit or the string filter.

◆ _valid

bool sf::VariableReference::_valid {false}

Holds the valid status of this reference.


The documentation for this struct was generated from the following file:
