sf::UnitConversionServer Class Reference

Implementation of a unit conversion server using an ini-file. This conversion class installs a handler using setUnitConversionHandler() using a UnitConversionServerClosure type of function. More...

#include <UnitConversionServer.h>

Inheritance diagram for sf::UnitConversionServer:

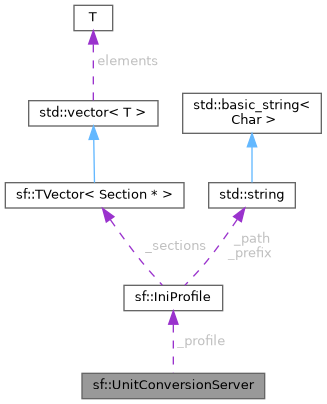

Collaboration diagram for sf::UnitConversionServer:

Public Types
enum	EUnitSystem : int { usPassThrough , usMetric , usImperial }
	Different unit conversion systems. More...
typedef std::pair< EUnitSystem, const char * >	UnitSystemPair
	Type to combine a system enumerate and name.

Public Member Functions
	UnitConversionServer ()
	Default constructor.
	UnitConversionServer (const UnitConversionServer &)=delete
	Copying this class is not possible.
virtual	~UnitConversionServer ()
	Virtual destructor.
virtual bool	load (std::istream &is)
	Loads the conversion settings.
virtual bool	save (std::ostream &os)
	Saves the conversion settings.
bool	isDirty () const
	Gets the dirty status of the configuration.
void	setConversion (UnitConversionEvent &ev)
	Writes or overwrites a conversion entry in the profile.
void	removeConversion (const std::string &key)
	Removes a conversion entry in the profile.
virtual void	setUnitSystem (int us)
	Sets the unit system to be applied.
EUnitSystem	getUnitSystem () const
	Gets the unit system being applied.
IniProfile &	getProfile ()
	Gets the internal storage profile.

Static Public Member Functions
static const char *	getUnitSystemName (int us)
	Gets the section name of the passed enumerate.
static const std::vector< UnitSystemPair > &	getUnitSystemNames ()

Protected Member Functions
virtual bool	handler (UnitConversionEvent &ev)
	Handler according the unit conversion function type.

Protected Attributes
IniProfile	_profile

Detailed Description

Implementation of a unit conversion server using an ini-file. This conversion class installs a handler using setUnitConversionHandler() using a UnitConversionServerClosure type of function.

Member Typedef Documentation

UnitSystemPair

typedef std::pair<EUnitSystem, const char*> sf::UnitConversionServer::UnitSystemPair

Type to combine a system enumerate and name.

Member Enumeration Documentation

EUnitSystem

enum sf::UnitConversionServer::EUnitSystem : int

Different unit conversion systems.

Enumerator
usPassThrough	No conversion use as is which should be SI-units.
usMetric	Conversion in the metric system depending on precision. Radians become degrees and 'm/s' can become 'km/h'.
usImperial	Conversion to the imperial system depending on precision. Celsius becomes Fahrenheit and 'm/s' become 'mph'.

Constructor & Destructor Documentation

UnitConversionServer() [1/2]

sf::UnitConversionServer::UnitConversionServer

(

)

Default constructor.

UnitConversionServer() [2/2]

sf::UnitConversionServer::UnitConversionServer ( const UnitConversionServer &  )

delete

Copying this class is not possible.

~UnitConversionServer()

virtual sf::UnitConversionServer::~UnitConversionServer ( )

virtual

Virtual destructor.

Member Function Documentation

getProfile()

IniProfile & sf::UnitConversionServer::getProfile

(

)

Gets the internal storage profile.

getUnitSystem()

EUnitSystem sf::UnitConversionServer::getUnitSystem

(

)

const

Gets the unit system being applied.

getUnitSystemName()

static const char * sf::UnitConversionServer::getUnitSystemName ( int  us )

static

Gets the section name of the passed enumerate.

Parameters

us	unit system enumerate.

Returns

Name of the system.

getUnitSystemNames()

static const std::vector< UnitSystemPair > & sf::UnitConversionServer::getUnitSystemNames ( )

static

Gets all the system unit entries as a pair in a vector.

Returns

handler()

virtual bool sf::UnitConversionServer::handler ( UnitConversionEvent &  ev )

protectedvirtual

Handler according the unit conversion function type.

Reimplemented in sf::UnitConversionServerEx.

isDirty()

bool sf::UnitConversionServer::isDirty

(

)

const

Gets the dirty status of the configuration.

Returns

True when the config has been changed.

load()

virtual bool sf::UnitConversionServer::load ( std::istream &  is )

virtual

Loads the conversion settings.

Parameters

is	Input stream.

Reimplemented in sf::UnitConversionServerEx.

removeConversion()

void sf::UnitConversionServer::removeConversion

(

const std::string &

key

)

Removes a conversion entry in the profile.

save()

virtual bool sf::UnitConversionServer::save ( std::ostream &  os )

virtual

Saves the conversion settings.

Parameters

os	Output stream.

Reimplemented in sf::UnitConversionServerEx.

setConversion()

void sf::UnitConversionServer::setConversion

(

UnitConversionEvent &

ev

)

Writes or overwrites a conversion entry in the profile.

setUnitSystem()

virtual void sf::UnitConversionServer::setUnitSystem ( int  us )

virtual

Sets the unit system to be applied.

Parameters

us	unit system vale EUnitSystem.

Reimplemented in sf::UnitConversionServerEx.

Member Data Documentation

_profile

IniProfile sf::UnitConversionServer::_profile

protected

Ini profile keeping all conversion information.

---

The documentation for this class was generated from the following file:

• UnitConversionServer.h
