Class for creating and referencing global created data called result data. This class allows linking of member functions of other classes to handle events generated by the data server and client. More...

#include <ResultData.h>

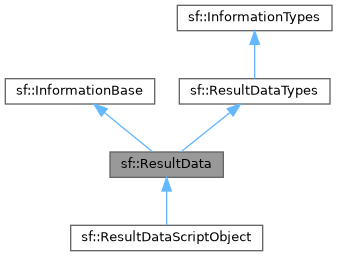

Inheritance diagram for sf::ResultData:

[legend]

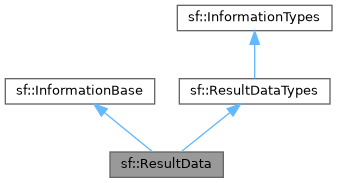

Collaboration diagram for sf::ResultData:

[legend]

Public Member Functions
	ResultData ()
	Default constructor.

	ResultData (const ResultData &rd)
	Copy constructor.

	ResultData (id_type id, bool set_desired=false)
	Constructor for creating an instance that attaches to an existing reference by id.

	ResultData (const std::string &definition, ResultData::id_type id_ofs=0)
	Constructor for creating a completely new reference.

	ResultData (const Definition &definition, ResultData::id_type id_ofs=0)
	Creates a new result using the passed definition structure.

	~ResultData () override
	Overridden destructor.

bool	setup (const std::string &definition, id_type id_ofs=0)
	Creates a new reference from a setup string for this instance.

bool	setup (const Definition &definition, id_type id_ofs)
	Creates a new TResultDataReference from a structure for this instance.

bool	setup (const ResultData &rd)
	Sets reference as the reference in the past instance.

bool	setup (ResultData::id_type id, bool set_did=false)
	Sets reference to other by id.

std::string	getSetupString () const
	Gets the setup string for this instance.

bool	setAccessRange (const Range &rng, bool skip_self=false)
	Sets the accessible range.

bool	setAccessRange (Range::size_type stop, bool skip_self=false)
	Same as setAccessRange where the start value is default 0.

void	setHandler (ResultDataHandler *handler)
	Sets an event handler for this instance.

const ResultDataHandler *	getHandler () const
	Gets the handler pointer of this instance set with setHandler().

void	makeOwner ()
	Make this instance owner of this result.

ResultData &	getOwner ()
	Gets reference of the owning instance.

bool	isOwner () const
	Checks if this is the owner of this result.

void	setUserData (void *data)
	Sets the void pointer data member for general purposes to cast in a handler.

void *	getUserData () const
	Gets the UserData void pointer data member.

bool	isValid () const
	Gets the instance validity.

data_type	getValueOffset () const
	Returns the correction offset for each value to get the real value.

data_type	getValueRange () const
	Gets the value range (max) taking the significant bits into account.

sdata_type	getValue (const void *data) const
	Returns the value derived from a buffer data pointer mapped to the appropriate type and corrected with the results offset.

data_type	getValueU (const void *data) const
	Same as getValue but no offset is added.

sdata_type	getValue (size_type idx, const void *data) const
	Same as getValue() but now from the instance at the passed index from the array of the results type.

data_type	getValueU (size_type idx, const void *data) const
	Same as getValue but no offset is added.

id_type	getId () const
	Returns the result identifier.

id_type	getDesiredId () const
	Gets the desired id data member value.

id_type	getSequenceId () const
	Gets the sequential id of this instance.

std::string	getName (int levels=0) const
	Gets the result data name which is default the full result data path name.

int	getNameLevelCount () const
	Gets the amount of levels of the fullname path.

std::string	getDescription () const
	Gets the instance description.

void	setDesiredId ()
	Sets the desired id member variable to the current reference id.

void	setDesiredId (id_type id)
	Sets the desired id member variable to the passed id.

template<typename T >
void	setData (T data)
	Sets the data for this instance for user purposes.

template<typename T = uint64_t>
T	getData () const
	Gets the data for this instance for user purposes Set with setData().

size_type	getUsageCount () const
	Gets the usage count of this result reference.

const FileMappedStorage &	getDataStore () const
	Returns reference to underlying multithreaded safe storage class.

size_type	getBufferSize (size_type blocks) const
	Gets the size in bytes needed for buffers for reading or writing the amount of blocks.

size_type	getBufferSize (const Range &rng) const
	Gets the size in bytes needed for buffers for reading or writing the range.

size_type	getBlockSize () const
	Gets the block size in bytes.

Range::size_type	getBlockCount () const
	Gets the accessible block count which does not mean it is valid.

FileMappedStorage::size_type	getSegmentSize () const
	Gets the segment size in blocks.

FileMappedStorage::size_type	getSegmentCount () const
	Gets the accessible segment count.

FileMappedStorage::size_type	getReservedBlockCount () const
	Get the amount of reserved blocks.

FileMappedStorage::size_type	getReservedSize () const
	Returns the total reserved size in bytes for this instance.

bool	blockRead (Range::size_type ofs, Range::size_type sz, void *dest, bool force=false) const
	Reads blocks from the storage using an offset.

bool	blockRead (const Range &rng, void *dest, bool force=false) const
	Reads a range of blocks from storage.

bool	readIndexRange (Range::size_type ofs, Range &range)
	Reads a range when this instance holds indices.

bool	readIndexRange (const Range &index, Range &range)
	Reads a range when this instance holds indices.

bool	isRangeValid (Range::size_type ofs, Range::size_type sz) const
	Checks if the passed block range depicted by offset and size is valid to access/read.

bool	isRangeValid (const Range &rng) const
	Checks if the passed block range is valid to access/read.

bool	isIndexRangeValid (const Range &rng) const
	Gets if the specified index range is valid.

const Range &	getAccessRange () const
	Gets the accessible block range where the stop value. is the same as the result of calling 'getBlockCount'.

bool	getRequests (Range::Vector &requests) const
	Returns a copy of the client requests that are out for data for only the owner.

bool	getSplitRequests (Range::Vector &req_list) const
	Returns the ranges which are bound by the segment bounds.

std::ostream &	reportStatus (std::ostream &os) const
	Reports the status as in the past 'std::ostream'.

Range::id_type	getTransId () const
	Gets the transaction id used in requests of data.

bool	blockWrite (Range::size_type ofs, Range::size_type sz, const void *src, bool auto_reserve=false)
	For owners to writes data to storage in using an offset and size in blocks.

bool	blockWrite (const Range &rng, const void *src, bool auto_reserve=false)
	For owners to writes data to storage in using a range in blocks.

size_type	commitValidations (bool skip_self=false)
	Commits all validated ranges and to notifies assigned handlers.

bool	setReservedBlockCount (Range::size_type sz, bool skip_self=false)
	Sets the amount of blocks to reserve only for owners.

bool	clearValidations (bool skip_self=false)
	Clears all the valid ranges of this instance.

void	validateRange (Range::size_type ofs, Range::size_type sz)
	Adds a validated range of blocks for committing later. Only available for owners.

void	validateRange (Range rng)
	Adds a validated range of blocks for committing later. Only available for owners.

void	validateRange (const Range::Vector &rl)
	Like validateRange() but for a vector/list of ranges.

bool	requestRange (Range::size_type ofs, Range::size_type sz)
	Requests a range using offset and size in blocks to validate.

bool	requestRange (const Range &rng)
	Requests a range in blocks to validate.

bool	requestIndexRange (const Range &rng)
	Same as requestRange() but for when this instance is an index.

void	clearRequests ()
	Clears the outstanding requests for only this instance.

bool	isFlag (int flag) const
	Check if a certain flag or flags (mask) are set.

bool	setFlag (int flag, bool skip_self)
	Sets a flag or multiple flags allowed by owners only.

bool	unsetFlag (int flag, bool skip_self)
	Unsets a flag or multiple flags allowed by owners only.

std::string	getCurFlagsString () const
	Gets the current flags as a string.

std::string	getFlagsString () const
	Gets the original setup flags as a string.

bool	updateFlags (int flag, bool skip_self)
	Sets a new set flags for this instance allowed by owners only.

flags_type	getFlags () const
	Gets the set of flags at setup time.

flags_type	getCurFlags () const
	Gets the current flags of this instance.

EType	getType () const
	Gets current type of the instance.

ResultData::size_type	getTypeSize () const
	Gets the byte size of this instance's type.

unsigned	getSignificantBits () const
	Gets the significant bits of the type used for this result.

bool	writeUpdate (std::ostream &os) const
	Writes id and current access range and current flags to the stream.

ResultData &	operator= (const ResultData &rd)
	Assigns the reference of the passed instance.

bool	operator== (const ResultData &rd) const
	Comparison operator.

void	operator delete (void *)
	During events no instances should be deleted. The destructor will be called but the data still exist.

void	setDebug (bool debug)
	Sets the debug flag for this instance reference.

bool	isDebug () const
	Gets the debug flag of the instance reference.

const ResultDataReference &	getReference ()
	Gets the underlying reference class of this instance.

const Range::Vector &	getCommitList () const
	Gets a vector of ranges still to be committed.

const Range::Vector &	getValidatedList () const
	Gets a vector of ranges that are validated.

size_type	getSegmentLocks () const
	Returns the accumulation of locks on segments.

size_type	emitEvent (EEvent event, const Range &rng, bool skip_self=false)
	Initiate event for all instances of this result. If skip_self is 'true' this instance is left out of the list.

Public Member Functions inherited from sf::InformationBase
virtual	~InformationBase ()=default
	Virtual destructor so derived classes can be destroyed by a pointer of this type.

Static Public Member Functions
static void	initialize ()
	Must be called to initialize the statics which this class depends on.

static void	uninitialize ()
	Called when terminating the application.

static EType	getType (const char *type)
	Gets the type from the passed string name.

static const char *	getType (EType type)
	Gets the string typename of the passed enumerate value.

static ResultData::size_type	getTypeSize (EType type)
	Gets the size of the passed enumerate type value.

static size_type	getCount ()
	Gets the amount of references in the system.

static size_type	getInstanceCount ()
	Gets the amount of result data instances in the system.

static PtrVector	getList ()
	Gets a list of owner instances available.

static std::string	getFieldName (int field)
	Gets the name of the passed field enumerate EField.

static const ResultData &	getInstanceById (ResultData::id_type id)
	Gets instance with the given id otherwise the zero instance.

static const ResultData &	getInstanceById (id_type id, const PtrVector &list)
	Finds instance in the past vector having the passed id.

static const ResultData &	getInstanceBySequenceId (ResultData::id_type seq_id, const PtrVector &list)
	Finds instance in passed vector. in vector with passed sequential ID and returns a reference to it. If not found it returns ZeroResultData.

static ResultData::size_type	getTotalReservedSize ()
	Gets the total amount of bytes reserved by all instances.

static bool	create (std::istream &is, PtrVector &list=null_ref< PtrVector >(), int &err_line=null_ref< int >())
	Setup multiple instances from an input stream.

static bool	readUpdate (std::istream &is, bool skip_self, PtrVector &list=null_ref< PtrVector >())
	Read new multiple current access range and current flags are read from stream.

static Definition	getDefinition (const std::string &str)

static flags_type	toFlags (const std::string &flags)
	Gets flags enumerate combination of the passed flags string.

static std::string	getFlagsString (flags_type flags)
	Gets flags string from the passed flags passed.

static const char *	getEventName (EEvent event)
	Gets the name of the passed EEvent number.

Friends
class	ResultDataHandler

class	ResultDataReference

class	ResultDataStatic

Additional Inherited Members
Public Types inherited from sf::ResultDataTypes
enum	EEvent : int { reNewId = -32000 , reUserGlobal , reFirstLocal = 0 , reFlagsChange , reAccessChange , reCommitted , reReserve , reInvalid , reClear , reUserLocal , reFirstPrivate = 16000 , reSetup , reIdChanged , reDesiredId , reRemove , reGetOwner , reLostOwner , reLinked , reUnlinked , reGotRange , reGetRange , reUserPrivate }
	Event enumerate values used in broadcasting where global events have a negative value. More...

enum	EField : int { rfId = 0 , rfName , rfFlags , rfDescription , rfType , rfBlockSize , rfSegmentSize , rfSigBits , rfOffset }
	This enumerate is the order of fields in the setup string. More...

enum	EType : int { rtInvalid = 0 , rtString , rtInt8 , rtInt16 , rtInt32 , rtInt64 , rtLastEntry }
	This enumerate is used to identify the type of data. More...

enum	EFlag : flags_type { flgRecycle = 1 << 0 , flgArchive = 1 << 1 , flgShare = 1 << 2 , flgHidden = 1 << 3 }
	Flags of the flags description field. More...

enum	ERangeInfo { riAvailable = 1 << 0 , riAccessible = 1 << 1 , riPartialAccessible = 1 << 2 , riRequested = 1 << 3 , riAddressable = 1 << 5 , riSegmented = 1 << 4 }
	Enumerate for range information bit values. More...

typedef TVector< ResultData * >	PtrVector
	Vector for pointer to results.

typedef TVector< ResultData >	Vector
	Vector for instances of results.

typedef TVector< ResultDataReference * >	ReferenceVector
	Type for internal use.

Public Types inherited from sf::InformationTypes
typedef unsigned long long	id_type
	Type used for the identifying integer (64-bits).

typedef int32_t	flags_type
	Type used for the flag integer.

typedef size_t	size_type
	Type used for size of vectors.

typedef uint64_t	data_type
	Type used for containing a single data element which is the largest integer.

typedef int64_t	sdata_type
	Type used for containing a single data element which is the largest signed integer.

typedef TVector< id_type >	IdVector
	Vector for lists of information ID's.

typedef TVector< InformationBase * >	Vector
	Vector for containing different information base derived classes.

Static Public Attributes inherited from sf::InformationTypes
static constexpr size_t	npos = std::numeric_limits<size_type>::max()
	Unsigned size value indicating not found or no index.

Detailed Description

Class for creating and referencing global created data called result data. This class allows linking of member functions of other classes to handle events generated by the data server and client.

Constructor & Destructor Documentation

◆ ResultData() [1/5]

sf::ResultData::ResultData ( )

Default constructor.

◆ ResultData() [2/5]

sf::ResultData::ResultData ( const ResultData & rd )

inline

Copy constructor.

Sets the reference as the passed instance.

Parameters

rd	Instance to having the reference to assign.

◆ ResultData() [3/5]

sf::ResultData::ResultData	(	ResultData::id_type	id,
		bool	set_desired = `false`
	)

inlineexplicit

Constructor for creating an instance that attaches to an existing reference by id.

Parameters

id	Identifying number.
set_desired	When true the desired id is set as the passed id.

◆ ResultData() [4/5]

sf::ResultData::ResultData	(	const std::string &	definition,
		ResultData::id_type	id_ofs = `0`
	)

inlineexplicit

Constructor for creating a completely new reference.

Parameters

definition	Comma separated string with fields according the EField enumerate.
id_ofs	Offset added to the id passed in the string.

◆ ResultData() [5/5]

sf::ResultData::ResultData	(	const Definition &	definition,
		ResultData::id_type	id_ofs = `0`
	)

inlineexplicit

Creates a new result using the passed definition structure.

Parameters

definition	Definition structure.
id_ofs	Offset given to the id.

◆ ~ResultData()

sf::ResultData::~ResultData ( )

override

Overridden destructor.

Member Function Documentation

◆ blockRead() [1/2]

bool sf::ResultData::blockRead	(	const Range &	rng,
		void *	dest,
		bool	force = `false`
	)		const

inline

Reads a range of blocks from storage.

This function also calls isRangeValid() to check the validity of the data.

Parameters

rng	Range of blocks to read.
dest	Destination to write the data to.
force	When true the function won't check the validity of the range but only the block count.

Returns: True on success false on failure and not valid.

See also: blockRead()

◆ blockRead() [2/2]

bool sf::ResultData::blockRead	(	Range::size_type	ofs,
		Range::size_type	sz,
		void *	dest,
		bool	force = `false`
	)		const

Reads blocks from the storage using an offset.

This function also calls isRangeValid() to check the validity of the data.

Parameters

ofs	Offset in blocks as start to read.
sz	Size in blocks to read.
dest	Destination to write the data to.
force	When true the function won't check the validity of the range but only the block count.

Returns: True if it succeeded to read the data.

◆ blockWrite() [1/2]

bool sf::ResultData::blockWrite	(	const Range &	rng,
		const void *	src,
		bool	auto_reserve = `false`
	)

inline

For owners to writes data to storage in using a range in blocks.

Written data needs to be committed using commitValidations() which emits the events to all event handlers.

Parameters

rng	Range to write in blocks.
src	Source pointer to data to read from.
auto_reserve	Reserve file mapped memory when needed.

See also: blockWrite()

◆ blockWrite() [2/2]

bool sf::ResultData::blockWrite	(	Range::size_type	ofs,
		Range::size_type	sz,
		const void *	src,
		bool	auto_reserve = `false`
	)

For owners to writes data to storage in using an offset and size in blocks.

Written data needs to be committed using commitValidations() which emits the events to all event handlers. Passing npos as offset means that the data is appended and getBlockCount is called internally to get the offset.

Parameters

ofs	When the value is npos the data is appended.
sz	Size in blocks to write.
src	Source pointer to data to read from.
auto_reserve	Reserve file mapped memory when needed.

Returns: True if it succeeds to write/store the data.

◆ clearRequests()

void sf::ResultData::clearRequests ( )

Clears the outstanding requests for only this instance.

Enables making fresh start in events.

◆ clearValidations()

bool sf::ResultData::clearValidations ( bool skip_self = false )

Clears all the valid ranges of this instance.

It generates an event reClear before it is actually cleared.

Parameters

skip_self True when skipping this instance's handler.

Returns: True when clear had any effect if not no event was generated.

◆ commitValidations()

size_type sf::ResultData::commitValidations ( bool skip_self = false )

Commits all validated ranges and to notifies assigned handlers.

Emits the reCommitted event to all handlers of this instance.

Parameters

skip_self True when skipping this instance's handler.

See also: blockWrite()

◆ create()

static bool sf::ResultData::create	(	std::istream &	is,
		PtrVector &	list = `null_ref< PtrVector >()`,
		int &	err_line = `null_ref< int >()`
	)

static

Setup multiple instances from an input stream.

Useful when reading a data file.

Parameters

is	Input stream definition strings.
list	Returns vector of created instances.
err_line	Error line number.

Returns: True when no error occurred.

◆ emitEvent()

size_type sf::ResultData::emitEvent	(	EEvent	event,
		const Range &	rng,
		bool	skip_self = `false`
	)

Initiate event for all instances of this result. If skip_self is 'true' this instance is left out of the list.

Parameters

event
rng
skip_self

Returns

◆ getAccessRange()

const Range & sf::ResultData::getAccessRange ( ) const

Gets the accessible block range where the stop value. is the same as the result of calling 'getBlockCount'.

Returns: Accessible range.

◆ getBlockCount()

Range::size_type sf::ResultData::getBlockCount ( ) const

Gets the accessible block count which does not mean it is valid.

Returns: Amount of blocks.

◆ getBlockSize()

size_type sf::ResultData::getBlockSize ( ) const

Gets the block size in bytes.

Returns: Size of block in bytes.

◆ getBufferSize() [1/2]

ResultData::size_type sf::ResultData::getBufferSize ( const Range & rng ) const

inline

Gets the size in bytes needed for buffers for reading or writing the range.

Parameters

rng	Range depicting the block size.

Returns: Size of the buffer in Bytes.

◆ getBufferSize() [2/2]

size_type sf::ResultData::getBufferSize ( size_type blocks ) const

Gets the size in bytes needed for buffers for reading or writing the amount of blocks.

Parameters

blocks Amount of blocks.

Returns: Size of the buffer in Bytes.

◆ getCommitList()

const Range::Vector & sf::ResultData::getCommitList ( ) const

Gets a vector of ranges still to be committed.

Returns: Vector of ranges.

◆ getCount()

static size_type sf::ResultData::getCount ( )

static

Gets the amount of references in the system.

In fact the amount references in the system excluding the zero one.

Returns: Amount of references.

◆ getCurFlags()

flags_type sf::ResultData::getCurFlags ( ) const

Gets the current flags of this instance.

Returns: One or a combination of flags.

◆ getCurFlagsString()

std::string sf::ResultData::getCurFlagsString ( ) const

Gets the current flags as a string.

Returns: Flags string.

◆ getData()

template<typename T >

T sf::ResultData::getData ( ) const

inline

Gets the data for this instance for user purposes Set with setData().

Returns: Could be a pointer cast value.

◆ getDataStore()

const FileMappedStorage & sf::ResultData::getDataStore ( ) const

Returns reference to underlying multithreaded safe storage class.

To access the data a local data store class must be wrapped around it.

Returns: Reference to the file map storage class.

◆ getDefinition()

static Definition sf::ResultData::getDefinition ( const std::string & str )

static

Fills a definition structure from a string. On failure the _valid field is set to false.

Parameters

str	Definition string

Returns: Definition structure

◆ getDescription()

std::string sf::ResultData::getDescription ( ) const

Gets the instance description.

Returns: Name string

◆ getDesiredId()

ResultData::id_type sf::ResultData::getDesiredId ( ) const

inline

Gets the desired id data member value.

Returns: Desired identifier.

◆ getEventName()

static const char * sf::ResultData::getEventName ( EEvent event )

static

Gets the name of the passed EEvent number.

Parameters

event The event number.

Returns: String with name.

◆ getFieldName()

static std::string sf::ResultData::getFieldName ( int field )

static

Gets the name of the passed field enumerate EField.

◆ getFlags()

flags_type sf::ResultData::getFlags ( ) const

Gets the set of flags at setup time.

Returns

◆ getFlagsString() [1/2]

std::string sf::ResultData::getFlagsString ( ) const

Gets the original setup flags as a string.

Returns: Flags string.

◆ getFlagsString() [2/2]

static std::string sf::ResultData::getFlagsString ( flags_type flags )

static

Gets flags string from the passed flags passed.

Parameters

flags Combination of enumerate EFlag.

Returns: String of flag characters.

◆ getHandler()

const ResultDataHandler * sf::ResultData::getHandler ( ) const

inline

Gets the handler pointer of this instance set with setHandler().

Returns: Handler object or NULL when not assigned.

See also: setHandler()

◆ getId()

id_type sf::ResultData::getId ( ) const

Returns the result identifier.

Returns: ID integer value.

◆ getInstanceById() [1/2]

static const ResultData & sf::ResultData::getInstanceById	(	id_type	id,
		const PtrVector &	list
	)

static

Finds instance in the past vector having the passed id.

When not found it te returns a reference to the zero instance.

Parameters

id	Identifier.
list

Returns: Reference to instance.

See also: sf::ResultDataStatic::zero()

◆ getInstanceById() [2/2]

static const ResultData & sf::ResultData::getInstanceById ( ResultData::id_type id )

static

Gets instance with the given id otherwise the zero instance.

Parameters

id	Identifier integer.

Returns: Reference to instance.

◆ getInstanceBySequenceId()

static const ResultData & sf::ResultData::getInstanceBySequenceId	(	ResultData::id_type	seq_id,
		const PtrVector &	list
	)

static

Finds instance in passed vector. in vector with passed sequential ID and returns a reference to it. If not found it returns ZeroResultData.

Parameters

seq_id
list

Returns

◆ getInstanceCount()

static size_type sf::ResultData::getInstanceCount ( )

static

Gets the amount of result data instances in the system.

Returns: Amount of clients and servers combined.

◆ getList()

static PtrVector sf::ResultData::getList ( )

static

Gets a list of owner instances available.

Useful in populating a selection dialog.

Returns: Vector of instance pointers.

◆ getName()

std::string sf::ResultData::getName ( int levels = 0 ) const

Gets the result data name which is default the full result data path name.

When levels is 'n' and larger than zero the last 'n' levels are returned. When levels is 'n' and smaller than zero the first 'n' levels are omitted.

Parameters

levels

Returns

◆ getNameLevelCount()

int sf::ResultData::getNameLevelCount ( ) const

Gets the amount of levels of the fullname path.

Returns: Name string

◆ getOwner()

ResultData & sf::ResultData::getOwner ( )

Gets reference of the owning instance.

◆ getReference()

const ResultDataReference & sf::ResultData::getReference ( )

inline

Gets the underlying reference class of this instance.

Returns: Reference class.

◆ getRequests()

bool sf::ResultData::getRequests ( Range::Vector & requests ) const

Returns a copy of the client requests that are out for data for only the owner.

This list is already narrowed down to essential ranges.

Parameters

requests Returned ranges of outstanding current requests.

Returns: True on success.

◆ getReservedBlockCount()

FileMappedStorage::size_type sf::ResultData::getReservedBlockCount ( ) const

Get the amount of reserved blocks.

Returns: Amount of blocks

◆ getReservedSize()

FileMappedStorage::size_type sf::ResultData::getReservedSize ( ) const

Returns the total reserved size in bytes for this instance.

Taking recycling into account. Don't use this to see if enough data is reserved or so.

Returns: Amount of blocks.

◆ getSegmentCount()

FileMappedStorage::size_type sf::ResultData::getSegmentCount ( ) const

Gets the accessible segment count.

Returns: Amount of segments.

◆ getSegmentLocks()

size_type sf::ResultData::getSegmentLocks ( ) const

Returns the accumulation of locks on segments.

◆ getSegmentSize()

FileMappedStorage::size_type sf::ResultData::getSegmentSize ( ) const

Gets the segment size in blocks.

Returns: Blocks in a single segment.

◆ getSequenceId()

id_type sf::ResultData::getSequenceId ( ) const

Gets the sequential id of this instance.

Returns: Sequential Id

◆ getSetupString()

std::string sf::ResultData::getSetupString ( ) const

Gets the setup string for this instance.

Returns: Setup string as initially created.

◆ getSignificantBits()

unsigned sf::ResultData::getSignificantBits ( ) const

Gets the significant bits of the type used for this result.

Returns: Number of bits.

◆ getSplitRequests()

bool sf::ResultData::getSplitRequests ( Range::Vector & req_list ) const

Returns the ranges which are bound by the segment bounds.

Parameters

req_list

Returns: True when successful.

◆ getTotalReservedSize()

static ResultData::size_type sf::ResultData::getTotalReservedSize ( )

static

Gets the total amount of bytes reserved by all instances.

Returns: Amount in bytes.1

◆ getTransId()

Range::id_type sf::ResultData::getTransId ( ) const

inline

Gets the transaction id used in requests of data.

Returns: The transaction id.

◆ getType() [1/3]

EType sf::ResultData::getType ( ) const

Gets current type of the instance.

Returns: Enumerate type value.

◆ getType() [2/3]

static EType sf::ResultData::getType ( const char * type )

static

Gets the type from the passed string name.

Parameters

type	String depicting a data type like 'INT32'.

Returns: rtInvalid when not existing and the correct type otherwise.

◆ getType() [3/3]

static const char * sf::ResultData::getType ( EType type )

static

Gets the string typename of the passed enumerate value.

Parameters

type	Enumerate value.

Returns: Typename string.

◆ getTypeSize() [1/2]

ResultData::size_type sf::ResultData::getTypeSize ( ) const

inline

Gets the byte size of this instance's type.

Returns: Size in bytes.

◆ getTypeSize() [2/2]

static ResultData::size_type sf::ResultData::getTypeSize ( EType type )

static

Gets the size of the passed enumerate type value.

Parameters

type	Enumerate type value.

Returns: Size in bytes.

◆ getUsageCount()

size_type sf::ResultData::getUsageCount ( ) const

Gets the usage count of this result reference.

Returns: Amount of instances.

◆ getUserData()

void * sf::ResultData::getUserData ( ) const

inline

Gets the UserData void pointer data member.

Returns: Pointer to cast.

◆ getValidatedList()

const Range::Vector & sf::ResultData::getValidatedList ( ) const

Gets a vector of ranges that are validated.

Returns: Vector of ranges.

◆ getValue() [1/2]

sdata_type sf::ResultData::getValue ( const void * data ) const

Returns the value derived from a buffer data pointer mapped to the appropriate type and corrected with the results offset.

Parameters

data	Pointer to element.

Returns: Signed integer data value.

◆ getValue() [2/2]

sdata_type sf::ResultData::getValue	(	size_type	idx,
		const void *	data
	)		const

Same as getValue() but now from the instance at the passed index from the array of the results type.

Parameters

idx	Index offset into the data.
data	Pointer to element.

Returns: Signed integer data value.

◆ getValueOffset()

data_type sf::ResultData::getValueOffset ( ) const

Returns the correction offset for each value to get the real value.

Returns: Offset of the value.

◆ getValueRange()

data_type sf::ResultData::getValueRange ( ) const

Gets the value range (max) taking the significant bits into account.

Returns: Max value.

◆ getValueU() [1/2]

data_type sf::ResultData::getValueU ( const void * data ) const

Same as getValue but no offset is added.

Parameters

data	Pointer to element.

Returns: Unsigned integer data value.

◆ getValueU() [2/2]

data_type sf::ResultData::getValueU	(	size_type	idx,
		const void *	data
	)		const

Same as getValue but no offset is added.

Parameters

idx
data

Returns

◆ initialize()

static void sf::ResultData::initialize ( )

static

Must be called to initialize the statics which this class depends on.

◆ isDebug()

bool sf::ResultData::isDebug ( ) const

inline

Gets the debug flag of the instance reference.

Returns: True when enabled.

◆ isFlag()

bool sf::ResultData::isFlag ( int flag ) const

Check if a certain flag or flags (mask) are set.

Parameters

flag	One or a combination of flags.

Returns: True when the flag is or are set.

◆ isIndexRangeValid()

bool sf::ResultData::isIndexRangeValid ( const Range & rng ) const

Gets if the specified index range is valid.

Parameters

rng	Index range being validated.

Returns: True when valid.

◆ isOwner()

bool sf::ResultData::isOwner ( ) const

Checks if this is the owner of this result.

Returns: True when this instance is the owning instance.

◆ isRangeValid() [1/2]

bool sf::ResultData::isRangeValid ( const Range & rng ) const

Checks if the passed block range is valid to access/read.

Parameters

rng	Range in blocks.

Returns: True when the passed range is valid to read.

See also: isRangeValid()

◆ isRangeValid() [2/2]

bool sf::ResultData::isRangeValid	(	Range::size_type	ofs,
		Range::size_type	sz
	)		const

Checks if the passed block range depicted by offset and size is valid to access/read.

Parameters

ofs	Offset in blocks.
sz	Size in blocks.

Returns: True when the passed range is valid to read.

◆ isValid()

bool sf::ResultData::isValid ( ) const

Gets the instance validity.

Returns: True when valid.

◆ makeOwner()

void sf::ResultData::makeOwner ( )

Make this instance owner of this result.

◆ operator delete()

void sf::ResultData::operator delete ( void * )

During events no instances should be deleted. The destructor will be called but the data still exist.

◆ operator=()

ResultData & sf::ResultData::operator= ( const ResultData & rd )

inline

Assigns the reference of the passed instance.

Calls actually setup(const ResultData& rd).

Parameters

rd	Source instance

Returns: Lvalue

◆ operator==()

bool sf::ResultData::operator== ( const ResultData & rd ) const

inline

Comparison operator.

Parameters

rd	Result data to compare.

Returns: True when the same.

◆ readIndexRange() [1/2]

bool sf::ResultData::readIndexRange	(	const Range &	index,
		Range &	range
	)

Reads a range when this instance holds indices.

Parameters

index	Range pointing to the first index and the last index value to read.
range	Resulting range that was read.

Returns: True on success false on failure and not valid.

◆ readIndexRange() [2/2]

bool sf::ResultData::readIndexRange	(	Range::size_type	ofs,
		Range &	range
	)

Reads a range when this instance holds indices.

An index instance groups blocks together for processing/imaging purposes.

Parameters

ofs	Offset in the storage container to read the index range.
range	Resulting range that was read.

Returns: True on success false on failure and not valid.

◆ readUpdate()

static bool sf::ResultData::readUpdate	(	std::istream &	is,
		bool	skip_self,
		PtrVector &	list = `null_ref< PtrVector >()`
	)

static

Read new multiple current access range and current flags are read from stream.

Used in communication between applications.

Parameters

is	Input stream.
skip_self	When true no events are send to this instance itself.
list	Optional other list to use as source for instances.

Returns: True when successful.

◆ reportStatus()

std::ostream & sf::ResultData::reportStatus ( std::ostream & os ) const

Reports the status as in the past 'std::ostream'.

◆ requestIndexRange()

bool sf::ResultData::requestIndexRange ( const Range & rng )

Same as requestRange() but for when this instance is an index.

Parameters

rng	Requested index range.

Returns: True when the request was excepted.

See also: requestRange()

◆ requestRange() [1/2]

bool sf::ResultData::requestRange ( const Range & rng )

Requests a range in blocks to validate.

Parameters

rng	Range in blocks.

Returns: True when the request was excepted.

See also: requestRange()

◆ requestRange() [2/2]

bool sf::ResultData::requestRange	(	Range::size_type	ofs,
		Range::size_type	sz
	)

inline

Requests a range using offset and size in blocks to validate.

Emits event reGetRange to the owner when a handler is assigned to it. Returns false when the request was rejected by the range manager due to being already valid or when the range is not within the current accessible range.

Parameters

ofs	Offset in blocks.
sz	Size in blocks.

Returns: True when the request was excepted.

◆ setAccessRange() [1/2]

bool sf::ResultData::setAccessRange	(	const Range &	rng,
		bool	skip_self = `false`
	)

Sets the accessible range.

When needed the method calls setReservedBlockCount() to match the given range emitting the reReserve event. When the range is increased an reAccessChange event is emitted.

Parameters

rng	Accessible range in blocks.
skip_self	True when skipping this instance's handler.

Returns: True when a change was made to the range and false if not.

◆ setAccessRange() [2/2]

bool sf::ResultData::setAccessRange	(	Range::size_type	stop,
		bool	skip_self = `false`
	)

inline

Same as setAccessRange where the start value is default 0.

Parameters

stop	End of range in blocks.
skip_self	True when skipping this instance's handler.

Returns: True when a change was made to the range and false if not.

See also: setAccessRange(const Range& rng, bool skip_self = false)

◆ setData()

template<typename T >

void sf::ResultData::setData ( T data )

inline

Sets the data for this instance for user purposes.

Parameters

data	Could be a pointer cast value.

◆ setDebug()

void sf::ResultData::setDebug ( bool debug )

Sets the debug flag for this instance reference.

Parameters

debug True to enable.

◆ setDesiredId() [1/2]

void sf::ResultData::setDesiredId ( )

Sets the desired id member variable to the current reference id.

◆ setDesiredId() [2/2]

void sf::ResultData::setDesiredId ( id_type id )

Sets the desired id member variable to the passed id.

If the passed 'id' is zero the automatic attachment mechanism is disabled.

Parameters

id DesiredId

◆ setFlag()

bool sf::ResultData::setFlag	(	int	flag,
		bool	skip_self
	)

Sets a flag or multiple flags allowed by owners only.

Parameters

flag	One or a combination of flags.
skip_self	True when skipping this instance's handler.

Returns: True when successful.

◆ setHandler()

void sf::ResultData::setHandler ( ResultDataHandler * handler )

Sets an event handler for this instance.

Parameters

handler Passing NULL will disable the link.

◆ setReservedBlockCount()

bool sf::ResultData::setReservedBlockCount	(	Range::size_type	sz,
		bool	skip_self = `false`
	)

Sets the amount of blocks to reserve only for owners.

This method is called underwater when 'auto_reserve' is true in a call to blockWrite(). Emits event reReserve to all instance handlers.

Parameters

sz	Blocks to reserve.
skip_self	True when skipping this instance's handler.

Returns: True when successful.

◆ setup() [1/4]

bool sf::ResultData::setup	(	const Definition &	definition,
		id_type	id_ofs
	)

Creates a new TResultDataReference from a structure for this instance.

Parameters

definition	Definition structure.
id_ofs	Offset given to the definition id.

Returns: True when successful.

◆ setup() [2/4]

bool sf::ResultData::setup ( const ResultData & rd )

inline

Sets reference as the reference in the past instance.

Parameters

rd	Instance to get the source reference from.

Returns: True when successful.

◆ setup() [3/4]

bool sf::ResultData::setup	(	const std::string &	definition,
		id_type	id_ofs = `0`
	)

inline

Creates a new reference from a setup string for this instance.

Parameters

definition	Comma separated string with fields according the EField enumerate.
id_ofs	Offset for the id in the definition string.

Returns: True when successful.

◆ setup() [4/4]

bool sf::ResultData::setup	(	ResultData::id_type	id,
		bool	set_did = `false`
	)

inline

Sets reference to other by id.

The global list of references is searched for the passed id and referenced when found. When found event reIdChanged is emitted. When the desired id was set and changed the reDesiredId event is emitted. Cannot be used for local variables.

Parameters

id	Identifier.
set_did	When true the desired id is set to the passed 'id'.

Returns: True when found and referenced.

◆ setUserData()

void sf::ResultData::setUserData ( void * data )

inline

Sets the void pointer data member for general purposes to cast in a handler.

Parameters

data Pointer

◆ toFlags()

static flags_type sf::ResultData::toFlags ( const std::string & flags )

static

Gets flags enumerate combination of the passed flags string.

Parameters

flags Flags string.

Returns: Combination of enumerate EFlag.

◆ uninitialize()

static void sf::ResultData::uninitialize ( )

static

Called when terminating the application.

◆ unsetFlag()

bool sf::ResultData::unsetFlag	(	int	flag,
		bool	skip_self
	)

Unsets a flag or multiple flags allowed by owners only.

Parameters

flag	One or a combination of flags.
skip_self	True when skipping this instance's handler.

Returns: True when successful.

◆ updateFlags()

bool sf::ResultData::updateFlags	(	int	flag,
		bool	skip_self
	)

Sets a new set flags for this instance allowed by owners only.

Parameters

flag	One or a combination of flags.
skip_self	True when skipping this instance's handler.

Returns: True when successful.

◆ validateRange() [1/3]

void sf::ResultData::validateRange ( const Range::Vector & rl )

Like validateRange() but for a vector/list of ranges.

Parameters

rl	List of ranges.

See also: validateRange()

◆ validateRange() [2/3]

void sf::ResultData::validateRange ( Range rng )

Adds a validated range of blocks for committing later. Only available for owners.

This method is useful when file mapped storage is written when locking it in memory when not using method blockWrite() which implies this.

Parameters

rng	Range blocks.

See also: commitValidations()

◆ validateRange() [3/3]

void sf::ResultData::validateRange	(	Range::size_type	ofs,
		Range::size_type	sz
	)

inline

Adds a validated range of blocks for committing later. Only available for owners.

This method is useful when file mapped storage is written when locking it in memory when not using method blockWrite() which implies this.

Parameters

ofs	Offset in blocks.
sz	Size in blocks.

See also: commitValidations()

◆ writeUpdate()

bool sf::ResultData::writeUpdate ( std::ostream & os ) const

Writes id and current access range and current flags to the stream.

Used in communication between applications.

Parameters

os	Output stream.

Returns: True when successful.

Friends And Related Symbol Documentation

◆ ResultDataHandler

friend class ResultDataHandler

friend

◆ ResultDataReference

friend class ResultDataReference

friend

◆ ResultDataStatic

friend class ResultDataStatic

friend

The documentation for this class was generated from the following file:

ResultData.h

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ResultData() [1/5]

◆ ResultData() [2/5]

◆ ResultData() [3/5]

◆ ResultData() [4/5]

◆ ResultData() [5/5]

◆ ~ResultData()

Member Function Documentation

◆ blockRead() [1/2]

◆ blockRead() [2/2]

◆ blockWrite() [1/2]

◆ blockWrite() [2/2]

◆ clearRequests()

◆ clearValidations()

◆ commitValidations()

◆ create()

◆ emitEvent()

◆ getAccessRange()

◆ getBlockCount()

◆ getBlockSize()

◆ getBufferSize() [1/2]

◆ getBufferSize() [2/2]

◆ getCommitList()

◆ getCount()

◆ getCurFlags()

◆ getCurFlagsString()

◆ getData()

◆ getDataStore()

◆ getDefinition()

◆ getDescription()

◆ getDesiredId()

◆ getEventName()

◆ getFieldName()

◆ getFlags()

◆ getFlagsString() [1/2]

◆ getFlagsString() [2/2]

◆ getHandler()

◆ getId()

◆ getInstanceById() [1/2]

◆ getInstanceById() [2/2]

◆ getInstanceBySequenceId()

◆ getInstanceCount()

◆ getList()

◆ getName()

◆ getNameLevelCount()

◆ getOwner()

◆ getReference()

◆ getRequests()

◆ getReservedBlockCount()

◆ getReservedSize()

◆ getSegmentCount()

◆ getSegmentLocks()

◆ getSegmentSize()

◆ getSequenceId()

◆ getSetupString()

◆ getSignificantBits()

◆ getSplitRequests()

◆ getTotalReservedSize()

◆ getTransId()

◆ getType() [1/3]

◆ getType() [2/3]

◆ getType() [3/3]

◆ getTypeSize() [1/2]

◆ getTypeSize() [2/2]

◆ getUsageCount()

◆ getUserData()

◆ getValidatedList()

◆ getValue() [1/2]

◆ getValue() [2/2]

◆ getValueOffset()

◆ getValueRange()

◆ getValueU() [1/2]

◆ getValueU() [2/2]

◆ initialize()

◆ isDebug()
