sf::OpenGLRenderer Class Reference

Pure virtual class to implement rendering separated from the widget and makes the sf::OpenGLWidget the placeholder. More...

#include <OpenGLRenderer.h>

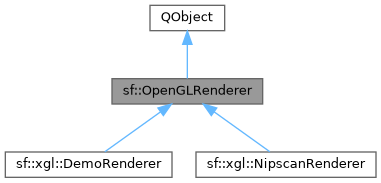

Inheritance diagram for sf::OpenGLRenderer:

Collaboration diagram for sf::OpenGLRenderer:

Public Member Functions
	OpenGLRenderer (OpenGLWidget *widget, QOpenGLShaderProgram *sp)
	Constructor passing the widget which has the OpenGL context. The owner is the shader program object.
	~OpenGLRenderer () override=default
	Virtual destructor.
bool	setup ()
	Call overridden method generate() after the shader program has been linked.
void	render ()
	Call overridden method render() after the shader program has been linked.
OpenGLWidget *	getWidget () const
	Gets the owning widget which is calling the shots.
QOpenGLShaderProgram *	getShaderProgram ()
	Gets shader program given in the constructor.
virtual void	changedProperty ()=0
	Called by sf::OpenGLWidget when a property has changed.
virtual void	addRenderObject (OpenGLRenderObject *ro, bool append=true)
	Adds an object to be rendered. The order of addition determines the outcome when transparency is involved. When an object is destroyed, it is removed from the list using the 'destroyed' signal.
virtual void	setIndexValue (int index, QVariant value)=0
	Sets an arbitrary value on the derived- or subclass.

Static Public Member Functions
static void	initialize (OpenGLWidget *widget)
	Called by sf::OpenGLWidget::initializeGL to initialize the OpenGL context for derived classes.

Protected Member Functions
virtual void	generate ()=0
	Called by setup() and (re-)generates the vertices for the drawn 3D-objects.
virtual void	paint ()=0
	Called by from the render() method.
virtual void	draw ()=0
	Called by from the render() method.

Protected Attributes
QList< OpenGLRenderObject * >	_renderObjects
	Holds the list of objects to render.
const QMatrix4x4 &	_projectionMatrix
	Easy of access reference to the projection matrix from the widget.
const QMatrix4x4 &	_cameraMatrix
	Easy of access reference to the camera matrix from the sf::OpenGLWidget.
const QMatrix4x4 &	_lightPositionMatrix
	Easy of access reference to the light position matrix from the sf::OpenGLWidget.
const QMatrix4x4 &	_lightDirectionMatrix
	Easy of access reference to the light direction matrix from the sf::OpenGLWidget.
const QMatrix4x4 &	_modelMatrix
	Easy of access reference to the model matrix from the sf::OpenGLWidget.

Detailed Description

Pure virtual class to implement rendering separated from the widget and makes the sf::OpenGLWidget the placeholder.

Constructor & Destructor Documentation

OpenGLRenderer()

sf::OpenGLRenderer::OpenGLRenderer ( OpenGLWidget *  widget, QOpenGLShaderProgram *  sp  )

explicit

Constructor passing the widget which has the OpenGL context. The owner is the shader program object.

~OpenGLRenderer()

sf::OpenGLRenderer::~OpenGLRenderer ( )

overridedefault

Virtual destructor.

Member Function Documentation

addRenderObject()

virtual void sf::OpenGLRenderer::addRenderObject ( OpenGLRenderObject *  ro, bool  append = true  )

virtual

Adds an object to be rendered. The order of addition determines the outcome when transparency is involved. When an object is destroyed, it is removed from the list using the 'destroyed' signal.

Parameters

ro	Object to render.
append	Appends when true and prepends when false.

changedProperty()

virtual void sf::OpenGLRenderer::changedProperty ( )

pure virtual

Called by sf::OpenGLWidget when a property has changed.

Implemented in sf::xgl::DemoRenderer, and sf::xgl::NipscanRenderer.

draw()

virtual void sf::OpenGLRenderer::draw ( )

protectedpure virtual

Called by from the render() method.

Implemented in sf::xgl::DemoRenderer, and sf::xgl::NipscanRenderer.

generate()

virtual void sf::OpenGLRenderer::generate ( )

protectedpure virtual

Called by setup() and (re-)generates the vertices for the drawn 3D-objects.

Implemented in sf::xgl::DemoRenderer, and sf::xgl::NipscanRenderer.

getShaderProgram()

QOpenGLShaderProgram * sf::OpenGLRenderer::getShaderProgram

(

)

Gets shader program given in the constructor.

getWidget()

OpenGLWidget * sf::OpenGLRenderer::getWidget

(

)

const

Gets the owning widget which is calling the shots.

initialize()

static void sf::OpenGLRenderer::initialize ( OpenGLWidget *  widget )

static

Called by sf::OpenGLWidget::initializeGL to initialize the OpenGL context for derived classes.

paint()

virtual void sf::OpenGLRenderer::paint ( )

protectedpure virtual

Called by from the render() method.

Implemented in sf::xgl::DemoRenderer, and sf::xgl::NipscanRenderer.

render()

void sf::OpenGLRenderer::render

(

)

Call overridden method render() after the shader program has been linked.

setIndexValue()

virtual void sf::OpenGLRenderer::setIndexValue ( int  index, QVariant  value  )

pure virtual

Sets an arbitrary value on the derived- or subclass.

Parameters

index	Index like in an array.
value	Variant able to accept any value.

Implemented in sf::xgl::DemoRenderer, and sf::xgl::NipscanRenderer.

setup()

bool sf::OpenGLRenderer::setup

(

)

Call overridden method generate() after the shader program has been linked.

Member Data Documentation

_cameraMatrix

const QMatrix4x4& sf::OpenGLRenderer::_cameraMatrix

protected

Easy of access reference to the camera matrix from the sf::OpenGLWidget.

_lightDirectionMatrix

const QMatrix4x4& sf::OpenGLRenderer::_lightDirectionMatrix

protected

Easy of access reference to the light direction matrix from the sf::OpenGLWidget.

_lightPositionMatrix

const QMatrix4x4& sf::OpenGLRenderer::_lightPositionMatrix

protected

Easy of access reference to the light position matrix from the sf::OpenGLWidget.

_modelMatrix

const QMatrix4x4& sf::OpenGLRenderer::_modelMatrix

protected

Easy of access reference to the model matrix from the sf::OpenGLWidget.

_projectionMatrix

const QMatrix4x4& sf::OpenGLRenderer::_projectionMatrix

protected

Easy of access reference to the projection matrix from the widget.

_renderObjects

QList<OpenGLRenderObject*> sf::OpenGLRenderer::_renderObjects

protected

Holds the list of objects to render.

---

The documentation for this class was generated from the following file:

• OpenGLRenderer.h
