sf::VariableListModel Class Reference

List model for a sf::Variable list. More...

#include <VariableListModel.h>

Inheritance diagram for sf::VariableListModel:

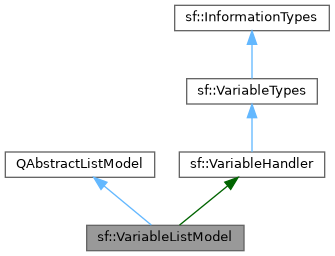

Collaboration diagram for sf::VariableListModel:

Public Types
enum	EField : int {   cId , cName , cValue , cUnit ,   cFlags }
	Displayable columns. More...

Public Member Functions
	VariableListModel (QObject *parent=nullptr)
	Constructor.
int	nameLevel () const
	Gets the levels of names displayed of the variables in the list.
void	setNameLevel (int level)
	Sets the levels of names displayed of the variables in the list.
bool	hasRowCheckBox () const
	Gets if the row selection is enabled. By default, the row selection is enabled.
void	setRowCheckBox (bool enabled)
	Enables the selection of rows. The sf::Variable::getData() returns true when selected.
void	setDelegates (QAbstractItemView *view)
	Creates a sf::CommonItemDelegate instance for the passed view.
void	refresh ()
	Refresh the attached viewer.
EField	getField (int column) const
	Gets the field displayed in the column.
int	getColumn (EField field) const
	Gets the column position or number where the field is displayed.
void	update (int row=-1, int column=-1, const QList< int > &roles=QList< int >())
	Update values in the given column and row.
void	updateField (int row, EField field, const QList< int > &roles=QList< int >())
	Update the column for the given field for all rows.
QVariant	headerData (int section, Qt::Orientation orientation, int role) const override
	Overridden from base class to provide column display names.
int	rowCount (const QModelIndex &parent=QModelIndex()) const override
	Overridden from base class to provide the amount of rows.
QVariant	data (const QModelIndex &index, int role) const override
	Overridden from base class to provide the data to present.
int	columnCount (const QModelIndex &parent=QModelIndex()) const override
	Overridden from base class to provide the amount of columns.
Qt::ItemFlags	flags (const QModelIndex &index) const override
	Overridden from base class to provide flags on an item by index.
void	addVariable (const Variable &var)
	Adds local or global variable to this instance by pointer. Internally a client copy of the sf::Variable is added.
void	addVariables (const Vector &list)
	Adds local or global variables to this instance.
void	setVariables (const Vector &list)
	Set local or global variables to this instance.
void	clearVariables ()
	Clear the variables added.
void	setVariablesConvert (bool enable)
	Sets the variable conversion for floating point values.
IdVector	getVariablesChecked () const
	Gets the Variable id's of all checked items in the list.
void	setVariablesChecked (const IdVector &ids)
	Gets the Variable id's of all checked items in the list. Returns a list of id numbers to the passed referenced vector.
void	addVariable (id_type id, bool desired=true)
	Adds global variable to this instance by id.
void	addVariables (const IdVector &ids, bool desired=true)
	Adds local or global variables to this instance.
Variable *	getVariable (const QModelIndex &index) const
	Gets the underlying variable pointer.
bool	setData (const QModelIndex &index, const QVariant &value, int role) override
	Overridden from base class to provide assignment of an item when edited.
int	getRow (Variable &link) const
	Finds the row beloning to the given variable.
void	setChecked (int row, bool checked)
	Sets or unsets the checkbox of a row.
Q_SIGNAL void	changed (const Variable *var)
	Signals a change of the Variable's property.

Additional Inherited Members
Protected Types inherited from sf::VariableTypes
enum	EEvent : int {   veConvert = 64000 , veNewId = -32000 , veUserGlobal , veFirstLocal = 0 ,   veFlagsChange = 1 , veValueChange = 2 , veInvalid = 3 , veConverted = 4 ,   veUserLocal = 5 , veFirstPrivate = 16000 , veIdChanged = 16001 , veDesiredId = 16002 ,   veRemove = 16003 , veGetOwner = 16004 , veLostOwner = 16005 , veLinked = 16006 ,   veUnlinked = 16007 , veSetup = 16008 , veUserPrivate = 16009 }
	Events send to the handler set with sf::Variable::setHandler. More...
enum	EField : int {   vfId = 0 , vfName , vfUnit , vfFlags ,   vfDescription , vfType , vfConversionType , vfRound ,   vfDefault , vfMinimum , vfMaximum , vfFirstState }
	Enumeration of the order of fields in the setup string. More...
enum	EFlag : flags_type {   flgReadonly = 1 << 0 , flgArchive = 1 << 1 , flgShare = 1 << 2 , flgLink = 1 << 3 ,   flgFunction = 1 << 4 , flgParameter = 1 << 5 , flgHidden = 1 << 6 , flgExport = 1 << 7 ,   flgWriteable = 1 << 8 }
	Enumeration type for specifying flags. More...
enum	EStringType : int {   stNormal = 0 , stMulti , stPath , stDirectory ,   stFilename , stSubdirectory }
	Enumeration of string types used for filtering. More...
typedef TVector< Variable * >	PtrVector
	Vector for pointers to variables.
typedef TVector< Variable >	Vector
	Vector for instances of variables.
typedef TVector< VariableReference * >	ReferenceVector
	Types for internal use.
Protected Types inherited from sf::InformationTypes
typedef unsigned long long	id_type
	Type used for the identifying integer (64-bits).
typedef int32_t	flags_type
	Type used for the flag integer.
typedef size_t	size_type
	Type used for size of vectors.
typedef uint64_t	data_type
	Type used for containing a single data element which is the largest integer.
typedef int64_t	sdata_type
	Type used for containing a single data element which is the largest signed integer.
typedef TVector< id_type >	IdVector
	Vector for lists of information ID's.
typedef TVector< InformationBase * >	Vector
	Vector for containing different information base derived classes.
Protected Member Functions inherited from sf::VariableHandler
virtual	~VariableHandler ()
	Destructor clears the link with variable instances so no errors occur when the link is destructed before the variable is.
Protected Member Functions inherited from sf::InformationTypes
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), data_type >	toDataType (T value) const
	Casts any type to a data_type value.
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), T >	fromDataType (data_type value) const
	Casts a data_type value to a given type.
Static Protected Attributes inherited from sf::InformationTypes
static constexpr size_t	npos = std::numeric_limits<size_type>::max()
	Unsigned size value indicating not found or no index.

Detailed Description

List model for a sf::Variable list.

Member Enumeration Documentation

EField

enum sf::VariableListModel::EField : int

Displayable columns.

Enumerator
cId
cName
cValue
cUnit
cFlags

Constructor & Destructor Documentation

VariableListModel()

sf::VariableListModel::VariableListModel ( QObject *  parent = nullptr )

explicit

Constructor.

Member Function Documentation

addVariable() [1/2]

void sf::VariableListModel::addVariable

(

const Variable &

var

)

Adds local or global variable to this instance by pointer. Internally a client copy of the sf::Variable is added.

Parameters

var	Variable to add.

addVariable() [2/2]

void sf::VariableListModel::addVariable	(	id_type	id,
		bool	desired = true
	)

Adds global variable to this instance by id.

Parameters

id	Variable id to add.
desired	Sets the desired flag on the variable.

addVariables() [1/2]

void sf::VariableListModel::addVariables	(	const IdVector &	ids,
		bool	desired = true
	)

Adds local or global variables to this instance.

Parameters

ids	List of Variable ids.
desired	Sets the desired flag on the variable.

addVariables() [2/2]

void sf::VariableListModel::addVariables

(

const Vector &

list

)

Adds local or global variables to this instance.

Parameters

list	List of Variables.

changed()

Q_SIGNAL void sf::VariableListModel::changed

(

const Variable *

var

)

Signals a change of the Variable's property.

Parameters

var	Variable concerned.

clearVariables()

void sf::VariableListModel::clearVariables

(

)

Clear the variables added.

columnCount()

int sf::VariableListModel::columnCount ( const QModelIndex &  parent = QModelIndex() ) const

override

Overridden from base class to provide the amount of columns.

data()

QVariant sf::VariableListModel::data ( const QModelIndex &  index, int  role  ) const

override

Overridden from base class to provide the data to present.

flags()

Qt::ItemFlags sf::VariableListModel::flags ( const QModelIndex &  index ) const

override

Overridden from base class to provide flags on an item by index.

getColumn()

int sf::VariableListModel::getColumn

(

EField

field

)

const

Gets the column position or number where the field is displayed.

Parameters

field

Returns

-1 when field is not displayed.

getField()

EField sf::VariableListModel::getField

(

int

column

)

const

Gets the field displayed in the column.

Parameters

column

Position or number of the column

Returns

Field displayed.

getRow()

int sf::VariableListModel::getRow

(

Variable &

link

)

const

Finds the row beloning to the given variable.

Parameters

link	Linked variable reference.

Returns

Row number and -1 when not found.

getVariable()

Variable * sf::VariableListModel::getVariable

(

const QModelIndex &

index

)

const

Gets the underlying variable pointer.

Parameters

index

List index to get the variable from.

Returns

nullptr when the index is not valid.

getVariablesChecked()

IdVector sf::VariableListModel::getVariablesChecked

(

)

const

Gets the Variable id's of all checked items in the list.

Returns

List of id numbers.

hasRowCheckBox()

bool sf::VariableListModel::hasRowCheckBox

(

)

const

Gets if the row selection is enabled. By default, the row selection is enabled.

headerData()

QVariant sf::VariableListModel::headerData ( int  section, Qt::Orientation  orientation, int  role  ) const

override

Overridden from base class to provide column display names.

nameLevel()

int sf::VariableListModel::nameLevel

(

)

const

Gets the levels of names displayed of the variables in the list.

refresh()

void sf::VariableListModel::refresh

(

)

Refresh the attached viewer.

rowCount()

int sf::VariableListModel::rowCount ( const QModelIndex &  parent = QModelIndex() ) const

override

Overridden from base class to provide the amount of rows.

setChecked()

void sf::VariableListModel::setChecked	(	int	row,
		bool	checked
	)

Sets or unsets the checkbox of a row.

setData()

bool sf::VariableListModel::setData ( const QModelIndex &  index, const QVariant &  value, int  role  )

override

Overridden from base class to provide assignment of an item when edited.

setDelegates()

void sf::VariableListModel::setDelegates

(

QAbstractItemView *

view

)

Creates a sf::CommonItemDelegate instance for the passed view.

setNameLevel()

void sf::VariableListModel::setNameLevel

(

int

level

)

Sets the levels of names displayed of the variables in the list.

setRowCheckBox()

void sf::VariableListModel::setRowCheckBox

(

bool

enabled

)

Enables the selection of rows. The sf::Variable::getData() returns true when selected.

setVariables()

void sf::VariableListModel::setVariables

(

const Vector &

list

)

Set local or global variables to this instance.

Parameters

list	List of Variables.

setVariablesChecked()

void sf::VariableListModel::setVariablesChecked

(

const IdVector &

ids

)

Gets the Variable id's of all checked items in the list. Returns a list of id numbers to the passed referenced vector.

setVariablesConvert()

void sf::VariableListModel::setVariablesConvert

(

bool

enable

)

Sets the variable conversion for floating point values.

Parameters

enable

True to enable conversion and false for not.

update()

void sf::VariableListModel::update	(	int	row = -1,
		int	column = -1,
		const QList< int > &	roles = QList< int >()
	)

Update values in the given column and row.

Parameters

row	When -1 all rows are selected.
column	When -1 all columns are selected.
roles	Roles to update.

updateField()

void sf::VariableListModel::updateField	(	int	row,
		EField	field,
		const QList< int > &	roles = QList< int >()
	)

Update the column for the given field for all rows.

Parameters

row	When -1 all rows are selected.
field	Translated to the column containing the field.
roles	Roles to update.

---

The documentation for this class was generated from the following file:

• VariableListModel.h
