#include <GmiServer.h>

Inheritance diagram for sf::GmiServer:

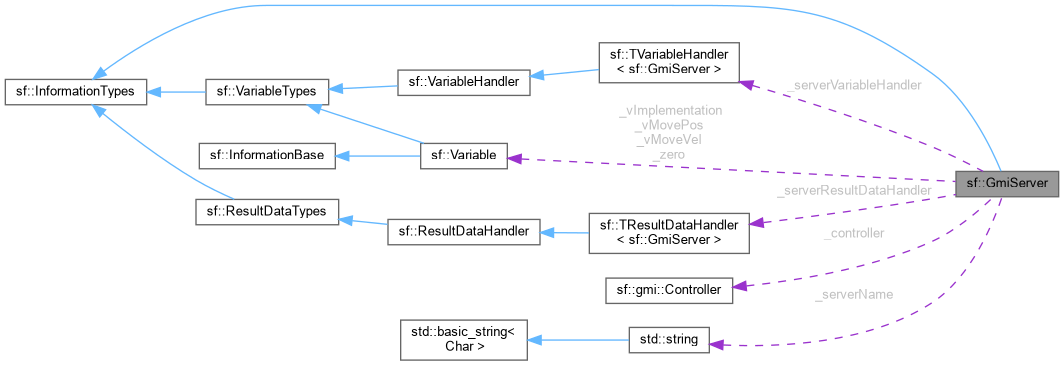

Collaboration diagram for sf::GmiServer:

[legend]

Classes
struct	ExtraInfo
	Structure placed in the TVariable's Data field for fast access to information. More...

Public Member Functions
	GmiServer (id_type device_number, const std::string &server_name)
	Constructor.

	~GmiServer ()
	Destructor.

std::string	getServerName () const
	Gets the name given at the constructor.

std::string	getImplementationName () const
	Gets the name of the current implementation.

bool	createImplementation (const std::string &name={})
	Creates an attached implementation by name.

void	destroyImplementation ()
	Destroys the created implementation.

void	addPropertyPages (PropertySheetDialog *sheet)
	Add the property sheets for this server to the given dialog.

const Variable &	getVariable (int pid)
	Gets the owner variable that corresponds the motion interfaces parameter id.

const Variable::PtrVector &	getVariables () const
	Gets all associated variables of the implementation.

gmi::Controller *	getController ()
	Gets the created controller pointer.

bool	isLocked () const
	Returns true when all parameters are locked.

void	setLocked (bool flag)
	Locks the variables by making them all read only.

Protected Member Functions
unsigned	getAxisCount ()
	Gets the amount of axes for this implementation.

std::string	getAxisName (int axis)
	Gets the axis name of the given axis.

void	createInterface ()
	Create interface parameters at construction once.

void	destroyInterface ()
	Remove all parameters and results.

Variable::PtrVector::size_type	variableListFind (id_type id) const
	Looks up a parameter which is represented the interface by the given id.

bool	createVariable (Variable *&var, const gmi::ParamInfo &info, const std::string &setup)
	Creates a variable with an extra info structure attached.

void	destroyVariable (Variable *var)
	Destroys a variable including the attached extra info structure.

std::string	createSetupString (const gmi::ParamInfo &info, gmi::IdType vid)
	Creates a setup string from the passed parameter info structure.

void	evaluateInterfaceParams ()
	Evaluate parameters after the configuration has changed.

std::string	GetNameOfs (const gmi::ParamInfo &info)
	Gets the name of the channel using the device name.

ResultData::PtrVector::size_type	resultListFind (id_type id) const
	Looks up a result data which is represented the interface id.

ResultData *	CreateResultData (const gmi::ResultInfo &info, const std::string &setup)
	Creates a variable with an extra info structure attached.

void	destroyResultData (ResultData *var)
	Destroys a variable including the attached extra info structure.

std::string	createSetupString (const gmi::ResultInfo &info, gmi::IdType vid)
	Creates a setup string from the passed result info structure.

void	evaluateInterfaceResults ()
	Evaluate results after the configuration has changed.

std::string	GetNameOfs (const gmi::ResultInfo &info)
	Returns the name of the channel using the device name.

ExtraInfo *	castExtraInfo (Variable *var) const
	Easy to use function to access the extra info from a variable. TODO: Use Variable::getData<type>() template function for casting.

ExtraInfo *	castExtraInfo (ResultData *var) const
	Easy to use function to access the extra info from a result data. TODO: Use ResultData::getData<type>() template function for casting.

void	clearValidations ()
	Clears the committed ranges of the attached results if there are any.

void	serverVariableHandler (Variable::EEvent event, const Variable &caller, Variable &linker, bool same_inst)
	Event handler for variables.

void	serverResultDataHandler (ResultData::EEvent event, const ResultData &caller, ResultData &link, const Range &rng, bool same_inst)
	Event handler for results.

void	paramNotify (id_type id)
	Hook function for parameter indirectly called from the implementation.

void	resultNotify (id_type id)
	Hook function for parameter indirectly called from the implementation.

void	checkReadOnly ()
	Sets the variables to readonly based on the flags and lock status.

Static Protected Member Functions
static void	paramNotifyProc (void *data, gmi::IdType id)

static void	resultNotifyProc (void *data, gmi::IdType id)

Protected Attributes
gmi::Controller *	_controller
	Holds the controller implementation.

Variable	_vImplementation
	Variable for selecting an implementation.

TVariableHandler< GmiServer >	_serverVariableHandler
	Callback hook for variable events.

Variable::PtrVector	_variableVector
	Holds all created variables for the selected implementation.

TResultDataHandler< GmiServer >	_serverResultDataHandler
	Callback hook for result events.

ResultData::PtrVector	_resultVector
	Holds all created results for this instance.

int	_deviceNumber
	Holds the device number for this server.

std::string	_serverName
	Holds the device name for creating the variable names.

bool	_lock
	Variable indicating lock status.

gmi::IdType	_handledParamId
	The id of the interface parameter being processed by the param hook.

int	_varHandlerEntryCount
	Holds the variable handler entry count.

const Variable *	_vMovePos
	Holds the pointer to a position motion status variable.

const Variable *	_vMoveVel
	Holds the pointer to a velocity motion status variable.

Variable	_zero {0, false}
	Variable returned when not found.

Friends
class	MotionVariablePropertyPage

Additional Inherited Members
Public Types inherited from sf::InformationTypes
typedef unsigned long long	id_type
	Type used for the identifying integer (64-bits).

typedef int32_t	flags_type
	Type used for the flag integer.

typedef size_t	size_type
	Type used for size of vectors.

typedef ssize_t	ssize_type
	Same as size_type but a signed version.

typedef uintptr_t	data_type
	Type used for containing a single data element which is the largest integer.

typedef intptr_t	sdata_type
	Type used for containing a single data element which is the largest signed integer.

typedef TVector< id_type >	IdVector
	Vector for lists of information ID's.

typedef TVector< InformationBase * >	Vector
	Vector for containing different information base derived classes.

Static Public Member Functions inherited from sf::InformationTypes
template<typename T >
static constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), data_type >	toDataType (T value)
	Casts any type to a data_type value.

template<typename T >
static constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)\|\|std::is_reference_v< T >), T >	fromDataType (data_type value)
	Casts a data_type value to a given type. Reference types are also possible since they are the same size as a pointer underwater.

Static Public Attributes inherited from sf::InformationTypes
static constexpr size_t	npos = std::numeric_limits<size_type>::max()
	Unsigned size value indicating not found or no index.

Constructor & Destructor Documentation

◆ GmiServer()

sf::GmiServer::GmiServer	(	id_type	device_number,
		const std::string &	server_name
	)

explicit

Constructor.

Parameters

device_number
server_name

◆ ~GmiServer()

sf::GmiServer::~GmiServer ( )

Destructor.

Member Function Documentation

◆ addPropertyPages()

void sf::GmiServer::addPropertyPages ( PropertySheetDialog * sheet )

Add the property sheets for this server to the given dialog.

◆ castExtraInfo() [1/2]

ExtraInfo * sf::GmiServer::castExtraInfo ( ResultData * var ) const

protected

Easy to use function to access the extra info from a result data. TODO: Use ResultData::getData<type>() template function for casting.

◆ castExtraInfo() [2/2]

ExtraInfo * sf::GmiServer::castExtraInfo ( Variable * var ) const

protected

Easy to use function to access the extra info from a variable. TODO: Use Variable::getData<type>() template function for casting.

◆ checkReadOnly()

void sf::GmiServer::checkReadOnly ( )

protected

Sets the variables to readonly based on the flags and lock status.

◆ clearValidations()

void sf::GmiServer::clearValidations ( )

protected

Clears the committed ranges of the attached results if there are any.

◆ createImplementation()

bool sf::GmiServer::createImplementation ( const std::string & name = {} )

Creates an attached implementation by name.

◆ createInterface()

void sf::GmiServer::createInterface ( )

protected

Create interface parameters at construction once.

◆ CreateResultData()

ResultData * sf::GmiServer::CreateResultData	(	const gmi::ResultInfo &	info,
		const std::string &	setup
	)

protected

Creates a variable with an extra info structure attached.

Parameters

info
setup

Returns

◆ createSetupString() [1/2]

std::string sf::GmiServer::createSetupString	(	const gmi::ParamInfo &	info,
		gmi::IdType	vid
	)

protected

Creates a setup string from the passed parameter info structure.

Parameters

info
vid

Returns

◆ createSetupString() [2/2]

std::string sf::GmiServer::createSetupString	(	const gmi::ResultInfo &	info,
		gmi::IdType	vid
	)

protected

Creates a setup string from the passed result info structure.

Parameters

info
vid

Returns

◆ createVariable()

bool sf::GmiServer::createVariable	(	Variable *&	var,
		const gmi::ParamInfo &	info,
		const std::string &	setup
	)

protected

Creates a variable with an extra info structure attached.

Parameters

var
info
setup

Returns: True when

◆ destroyImplementation()

void sf::GmiServer::destroyImplementation ( )

Destroys the created implementation.

◆ destroyInterface()

void sf::GmiServer::destroyInterface ( )

protected

Remove all parameters and results.

◆ destroyResultData()

void sf::GmiServer::destroyResultData ( ResultData * var )

protected

Destroys a variable including the attached extra info structure.

Parameters

var

◆ destroyVariable()

void sf::GmiServer::destroyVariable ( Variable * var )

protected

Destroys a variable including the attached extra info structure.

Parameters

var

◆ evaluateInterfaceParams()

void sf::GmiServer::evaluateInterfaceParams ( )

protected

Evaluate parameters after the configuration has changed.

◆ evaluateInterfaceResults()

void sf::GmiServer::evaluateInterfaceResults ( )

protected

Evaluate results after the configuration has changed.

◆ getAxisCount()

unsigned sf::GmiServer::getAxisCount ( )

protected

Gets the amount of axes for this implementation.

◆ getAxisName()

std::string sf::GmiServer::getAxisName ( int axis )

protected

Gets the axis name of the given axis.

Parameters

axis	Axis number as in #sf::gmi::EAxisLocation

Returns: Name of the axis number.

◆ getController()

gmi::Controller * sf::GmiServer::getController ( )

Gets the created controller pointer.

Returns: When not created it returns a nullptr.

◆ getImplementationName()

std::string sf::GmiServer::getImplementationName ( ) const

Gets the name of the current implementation.

◆ GetNameOfs() [1/2]

std::string sf::GmiServer::GetNameOfs ( const gmi::ParamInfo & info )

protected

Gets the name of the channel using the device name.

Parameters

info	Parameter in formation.

Returns: Name offset.

◆ GetNameOfs() [2/2]

std::string sf::GmiServer::GetNameOfs ( const gmi::ResultInfo & info )

protected

Returns the name of the channel using the device name.

Parameters

info

Returns

◆ getServerName()

std::string sf::GmiServer::getServerName ( ) const

Gets the name given at the constructor.

◆ getVariable()

const Variable & sf::GmiServer::getVariable ( int pid )

Gets the owner variable that corresponds the motion interfaces parameter id.

Parameters

pid	Parameter id

Returns: Corresponding variable.

◆ getVariables()

const Variable::PtrVector & sf::GmiServer::getVariables ( ) const

Gets all associated variables of the implementation.

Returns: Vector containing #sf::Variable pointers.

◆ isLocked()

bool sf::GmiServer::isLocked ( ) const

inline

Returns true when all parameters are locked.

Returns: True when locked.

◆ paramNotify()

void sf::GmiServer::paramNotify ( id_type id )

protected

Hook function for parameter indirectly called from the implementation.

Parameters

id	Parameter id

◆ paramNotifyProc()

static void sf::GmiServer::paramNotifyProc	(	void *	data,
		gmi::IdType	id
	)

staticprotected

◆ resultListFind()

ResultData::PtrVector::size_type sf::GmiServer::resultListFind ( id_type id ) const

protected

Looks up a result data which is represented the interface id.

Parameters

id

Returns

◆ resultNotify()

void sf::GmiServer::resultNotify ( id_type id )

protected

Hook function for parameter indirectly called from the implementation.

Parameters

id Result id

◆ resultNotifyProc()

static void sf::GmiServer::resultNotifyProc	(	void *	data,
		gmi::IdType	id
	)

staticprotected

◆ serverResultDataHandler()

void sf::GmiServer::serverResultDataHandler	(	ResultData::EEvent	event,
		const ResultData &	caller,
		ResultData &	link,
		const Range &	rng,
		bool	same_inst
	)

protected

Event handler for results.

◆ serverVariableHandler()

void sf::GmiServer::serverVariableHandler	(	Variable::EEvent	event,
		const Variable &	caller,
		Variable &	linker,
		bool	same_inst
	)

protected

Event handler for variables.

◆ setLocked()

void sf::GmiServer::setLocked ( bool flag )

Locks the variables by making them all read only.

Parameters

flag	Locking state.

◆ variableListFind()

Variable::PtrVector::size_type sf::GmiServer::variableListFind ( id_type id ) const

protected

Looks up a parameter which is represented the interface by the given id.

Parameters

id

Returns

Friends And Related Symbol Documentation

◆ MotionVariablePropertyPage

friend class MotionVariablePropertyPage

friend

Member Data Documentation

◆ _controller

gmi::Controller* sf::GmiServer::_controller

protected

Holds the controller implementation.

◆ _deviceNumber

int sf::GmiServer::_deviceNumber

protected

Holds the device number for this server.

◆ _handledParamId

gmi::IdType sf::GmiServer::_handledParamId

protected

The id of the interface parameter being processed by the param hook.

◆ _lock

bool sf::GmiServer::_lock

protected

Variable indicating lock status.

◆ _resultVector

ResultData::PtrVector sf::GmiServer::_resultVector

protected

Holds all created results for this instance.

◆ _serverName

std::string sf::GmiServer::_serverName

protected

Holds the device name for creating the variable names.

◆ _serverResultDataHandler

TResultDataHandler<GmiServer> sf::GmiServer::_serverResultDataHandler

protected

Callback hook for result events.

◆ _serverVariableHandler

TVariableHandler<GmiServer> sf::GmiServer::_serverVariableHandler

protected

Callback hook for variable events.

◆ _varHandlerEntryCount

int sf::GmiServer::_varHandlerEntryCount

protected

Holds the variable handler entry count.

◆ _variableVector

Variable::PtrVector sf::GmiServer::_variableVector

protected

Holds all created variables for the selected implementation.

◆ _vImplementation

Variable sf::GmiServer::_vImplementation

protected

Variable for selecting an implementation.

◆ _vMovePos

const Variable* sf::GmiServer::_vMovePos

protected

Holds the pointer to a position motion status variable.

◆ _vMoveVel

const Variable* sf::GmiServer::_vMoveVel

protected

Holds the pointer to a velocity motion status variable.

◆ _zero

Variable sf::GmiServer::_zero {0, false}

protected

Variable returned when not found.

The documentation for this class was generated from the following file:

GmiServer.h

Classes

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Constructor & Destructor Documentation

◆ GmiServer()

◆ ~GmiServer()

Member Function Documentation

◆ addPropertyPages()

◆ castExtraInfo() [1/2]

◆ castExtraInfo() [2/2]

◆ checkReadOnly()

◆ clearValidations()

◆ createImplementation()

◆ createInterface()

◆ CreateResultData()

◆ createSetupString() [1/2]

◆ createSetupString() [2/2]

◆ createVariable()

◆ destroyImplementation()

◆ destroyInterface()

◆ destroyResultData()

◆ destroyVariable()

◆ evaluateInterfaceParams()

◆ evaluateInterfaceResults()

◆ getAxisCount()

◆ getAxisName()

◆ getController()

◆ getImplementationName()

◆ GetNameOfs() [1/2]

◆ GetNameOfs() [2/2]

◆ getServerName()

◆ getVariable()

◆ getVariables()

◆ isLocked()

◆ paramNotify()

◆ paramNotifyProc()

◆ resultListFind()

◆ resultNotify()

◆ resultNotifyProc()

◆ serverResultDataHandler()

◆ serverVariableHandler()

◆ setLocked()

◆ variableListFind()

Friends And Related Symbol Documentation

◆ MotionVariablePropertyPage

Member Data Documentation

◆ _controller

◆ _deviceNumber

◆ _handledParamId

◆ _lock

◆ _resultVector

◆ _serverName

◆ _serverResultDataHandler

◆ _serverVariableHandler

◆ _varHandlerEntryCount

◆ _variableVector

◆ _vImplementation

◆ _vMovePos

◆ _vMoveVel

◆ _zero
