sf::VariableWidgetBase Class Reference

Base class for sf::Variable based widgets. More...

#include <VariableWidgetBase.h>

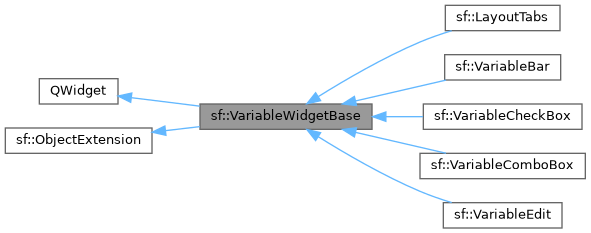

Inheritance diagram for sf::VariableWidgetBase:

Collaboration diagram for sf::VariableWidgetBase:

Public Member Functions
	VariableWidgetBase (QWidget *parent, QObject *self)
	Constructor.
	~VariableWidgetBase () override
	Destructor.
void	addPropertyPages (sf::PropertySheetDialog *sheet) override
	Overridden from base class sf::ObjectExtension::addPropertyPages().
void	setId (gii::IdType id)
	Property 'variableId' set method.
gii::IdType	getId () const
	Property 'variableId' get method.
Variable &	getVariable () const
	Gets the reference to the underlying Variable instance.
void	setConverted (bool) const
	Property 'converted' set method.
bool	getConverted () const
	Property 'converted' get method.
void	setReadOnly (bool)
	Property 'converted' set method.
bool	getReadOnly () const
	Property 'converted' get method.
bool	isRequiredProperty (const QString &name) override
	Overridden from base class 'ObjectExtension' to write only the properties that mean anything.
Public Member Functions inherited from sf::ObjectExtension
virtual bool	getSaveChildren () const
	Gets if the children needs saving by the FormBuilder class.

Static Public Member Functions
static const char *	propertyNameEditorObject ()
	Property name of the property which guides the layout editor to the proper parent.
Static Public Member Functions inherited from sf::ObjectExtension
static bool	inDesigner ()
	Gets the designer status.
static QObject *	getExtensionParent (QObject *obj, bool first=true)
	Return if the passed object has this type as parent. It starts by testing the passed object itself.

Protected Member Functions
virtual void	applyReadOnly (bool yn)=0
Protected Member Functions inherited from sf::ObjectExtension
	ObjectExtension (QObject *object)
	Protected constructor only. Inlined so no external libs are need for designer.
virtual	~ObjectExtension ()=default
	Virtual destructor.

Protected Attributes
PrivateBase *	_p {nullptr}
	Holds the private object or a derived one.

Properties
qulonglong	idVariable
bool	converted
bool	readOnly

Detailed Description

Base class for sf::Variable based widgets.

Constructor & Destructor Documentation

VariableWidgetBase()

sf::VariableWidgetBase::VariableWidgetBase ( QWidget *  parent, QObject *  self  )

explicit

Constructor.

~VariableWidgetBase()

sf::VariableWidgetBase::~VariableWidgetBase ( )

override

Destructor.

Member Function Documentation

addPropertyPages()

void sf::VariableWidgetBase::addPropertyPages ( sf::PropertySheetDialog *  sheet )

overridevirtual

Overridden from base class sf::ObjectExtension::addPropertyPages().

Reimplemented from sf::ObjectExtension.

applyReadOnly()

virtual void sf::VariableWidgetBase::applyReadOnly ( bool  yn )

protectedpure virtual

To handle a request for read only behavior of the widget.

Parameters

yn

Implemented in sf::VariableBar, sf::VariableCheckBox, sf::VariableComboBox, sf::VariableEdit, and sf::LayoutTabs.

getConverted()

bool sf::VariableWidgetBase::getConverted

(

)

const

Property 'converted' get method.

getId()

gii::IdType sf::VariableWidgetBase::getId

(

)

const

Property 'variableId' get method.

getReadOnly()

bool sf::VariableWidgetBase::getReadOnly

(

)

const

Property 'converted' get method.

getVariable()

Variable & sf::VariableWidgetBase::getVariable

(

)

const

Gets the reference to the underlying Variable instance.

isRequiredProperty()

bool sf::VariableWidgetBase::isRequiredProperty ( const QString &  name )

overridevirtual

Overridden from base class 'ObjectExtension' to write only the properties that mean anything.

Implements sf::ObjectExtension.

propertyNameEditorObject()

static const char * sf::VariableWidgetBase::propertyNameEditorObject ( )

static

Property name of the property which guides the layout editor to the proper parent.

Returns

Property name.

setConverted()

void sf::VariableWidgetBase::setConverted

(

bool

)

const

Property 'converted' set method.

setId()

void sf::VariableWidgetBase::setId

(

gii::IdType

id

)

Property 'variableId' set method.

setReadOnly()

void sf::VariableWidgetBase::setReadOnly

(

bool

)

Property 'converted' set method.

Member Data Documentation

_p

PrivateBase* sf::VariableWidgetBase::_p {nullptr}

protected

Holds the private object or a derived one.

Property Documentation

converted

bool sf::VariableWidgetBase::converted

readwrite

idVariable

qulonglong sf::VariableWidgetBase::idVariable

readwrite

readOnly

bool sf::VariableWidgetBase::readOnly

readwrite

---

The documentation for this class was generated from the following file:

• VariableWidgetBase.h
