sf::ObjectExtension Class Reference

Interface class to multiple inherit when the sf::FormWriter class needs to be restricted in writing object properties. More...

#include <ObjectExtension.h>

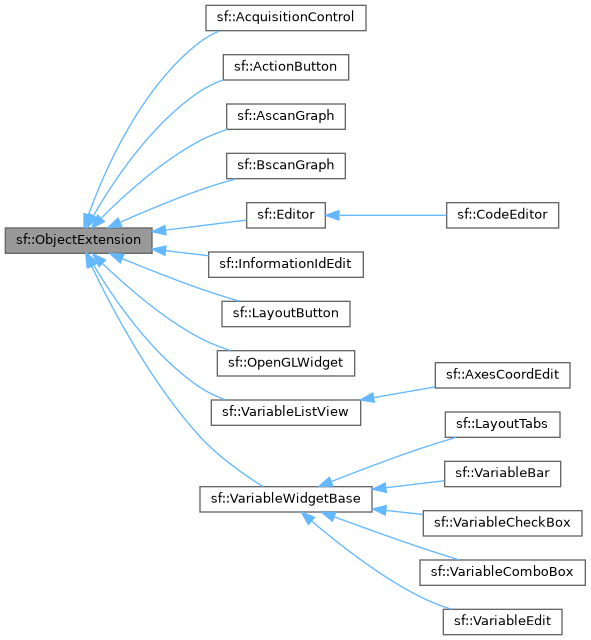

Inheritance diagram for sf::ObjectExtension:

Public Member Functions
virtual bool	isRequiredProperty (const QString &name)=0
	Returns true if a property is to be saved to file.
virtual void	addPropertyPages (PropertySheetDialog *sheet)
	Adds the pages specific for this object.
virtual bool	getSaveChildren () const
	Gets if the children needs saving by the FormBuilder class.

Static Public Member Functions
static bool	inDesigner ()
	Gets the designer status.
static QObject *	getExtensionParent (QObject *obj, bool first=true)
	Return if the passed object has this type as parent. It starts by testing the passed object itself.

Protected Member Functions
	ObjectExtension (QObject *object)
	Protected constructor only. Inlined so no external libs are need for designer.
virtual	~ObjectExtension ()=default
	Virtual destructor.

Detailed Description

Interface class to multiple inherit when the sf::FormWriter class needs to be restricted in writing object properties.

Constructor & Destructor Documentation

ObjectExtension()

sf::ObjectExtension::ObjectExtension ( QObject *  object )

explicitprotected

Protected constructor only. Inlined so no external libs are need for designer.

Parameters

object

This pointer of the extended class instance.

~ObjectExtension()

virtual sf::ObjectExtension::~ObjectExtension ( )

protectedvirtualdefault

Virtual destructor.

Member Function Documentation

addPropertyPages()

virtual void sf::ObjectExtension::addPropertyPages ( PropertySheetDialog *  sheet )

virtual

Adds the pages specific for this object.

Parameters

sheet

Parent and property sheet for the page.

Reimplemented in sf::VariableWidgetBase, sf::LayoutButton, sf::OpenGLWidget, sf::AcquisitionControl, sf::AscanGraph, and sf::BscanGraph.

getExtensionParent()

static QObject * sf::ObjectExtension::getExtensionParent ( QObject *  obj, bool  first = true  )

static

Return if the passed object has this type as parent. It starts by testing the passed object itself.

Parameters

obj	Object to start with in the search.
first	When false is passed it returns the last one found in the path.

Returns

True when a parent was found that matches.

getSaveChildren()

virtual bool sf::ObjectExtension::getSaveChildren ( ) const

virtual

Gets if the children needs saving by the FormBuilder class.

Returns

False by default.

inDesigner()

static bool sf::ObjectExtension::inDesigner ( )

static

Gets the designer status.

Returns

True when in the designer application.

isRequiredProperty()

virtual bool sf::ObjectExtension::isRequiredProperty ( const QString &  name )

pure virtual

Returns true if a property is to be saved to file.

Parameters

name	Name of the property.

Returns

True saving is required.

Implemented in sf::InformationIdEdit, sf::VariableBar, sf::VariableCheckBox, sf::VariableComboBox, sf::VariableEdit, sf::VariableListView, sf::VariableWidgetBase, sf::ActionButton, sf::Editor, sf::LineEdit, sf::AcquisitionControl, sf::AscanGraph, sf::BscanGraph, sf::LayoutButton, sf::LayoutTabs, and sf::OpenGLWidget.

---

The documentation for this class was generated from the following file:

• ObjectExtension.h
