sf::xgl::VertexArrayBase Class Reference

Base class for Vertex array derived classes. More...

#include <VertexArrayBase.h>

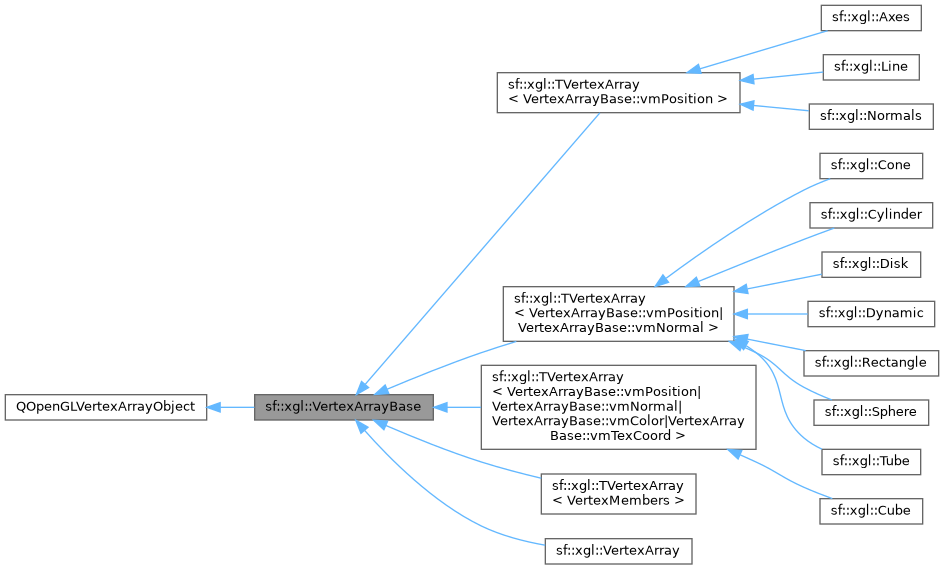

Inheritance diagram for sf::xgl::VertexArrayBase:

Collaboration diagram for sf::xgl::VertexArrayBase:

Public Types
enum	EVertexMember : VertexMember { vmPosition = 1 << 0 , vmNormal = 1 << 1 , vmColor = 1 << 2 , vmTexCoord = 1 << 3 }
	Possible member of a vertex structure. Where the position can not be omitted as part of the vertex. More...
enum	EDrawMode { dmDrawArrays , dmDrawElements }
	Drawing mode of by the template. More...
enum	ERenderOption : int { roNone = 0 , roWires = 1 << 0 , roNormals = 1 << 1 }
	Render options. More...
typedef unsigned	VertexMember
	Type used to describe vertex structure members.
typedef TVector< std::pair< vector3f, vector3f > >	NormalsDataType
	Type for extracting normals from all used vertices.

Public Member Functions
	VertexArrayBase (QObject *parent=nullptr)
	Default Qt object constructor.
virtual void	draw ()=0
	Draws the vertex array. Specifically called from the paintGL() function of the OpenGL widget.
virtual void	paint ()=0
	Paints the object old style OpenGL.
virtual bool	hasColor () const =0
	Determines if Vertex has a color component.
virtual bool	hasTexture () const =0
	Determines if Vertex has a texture mapping component.
virtual NormalsDataType	getNormalsData () const =0
	Gets the information from the vertices to make normals visible.
void	triggerGenerate ()
	Sets a flag to trigger data generation when the data is called for.
void	setRenderOptions (RenderOptions options)
	Modify the render options which will trigger a regeneration of the vertices and indices.
RenderOptions	getRenderOptions () const
	Gets the render options.

Static Public Member Functions
static const Color &	getDefaultColor ()
	Gets the default color used by the vertex structures when not set by the derived class. Created to have a single location for the default color. An example how it is used:
static void	setDefaultColor (const QColor &color)
	Sets the default color used by the vertex structures when not set by the derived class.

Protected Member Functions
virtual bool	setup ()=0
	Sets up the vertex array for the OpenGL context.
virtual void	clearData ()=0
	Clears the data to generate array buffers.
bool	callGenerate ()
	Makes a call to virtual function generate() when the #_generateFlag is set using triggerGenerate().
virtual void	generate ()=0
	Generate the data needed for creation of vertex array and/or indices. Is or must be called by setup() function.
virtual void	modifyContext (bool before, bool draw, size_t mode_index)
	Allows modifying the OpenGL context before and after drawing.
bool	isTriggered () const
	Gets the flag if data is to be (re-)generated. Flag is set to True initially.

Detailed Description

Base class for Vertex array derived classes.

Member Typedef Documentation

NormalsDataType

typedef TVector<std::pair<vector3f, vector3f> > sf::xgl::VertexArrayBase::NormalsDataType

Type for extracting normals from all used vertices.

VertexMember

typedef unsigned sf::xgl::VertexArrayBase::VertexMember

Type used to describe vertex structure members.

Member Enumeration Documentation

EDrawMode

enum sf::xgl::VertexArrayBase::EDrawMode

Drawing mode of by the template.

Enumerator
dmDrawArrays	Call OpenGL glDrawArrays() function.
dmDrawElements	Call OpenGL glDrawElements() function.

ERenderOption

enum sf::xgl::VertexArrayBase::ERenderOption : int

Render options.

Enumerator
roNone	Entry for choosing not to set any flag.
roWires	Render using wires instead of filled.
roNormals	Render the normals as.

EVertexMember

enum sf::xgl::VertexArrayBase::EVertexMember : VertexMember

Possible member of a vertex structure. Where the position can not be omitted as part of the vertex.

Enumerator
vmPosition	Position member of vec3 type.
vmNormal	Normal member of vec3 type.
vmColor	Color member of vec4 type.
vmTexCoord	Texture coord member of vec2 type

Constructor & Destructor Documentation

VertexArrayBase()

sf::xgl::VertexArrayBase::VertexArrayBase ( QObject *  parent = nullptr )

explicit

Default Qt object constructor.

Member Function Documentation

callGenerate()

bool sf::xgl::VertexArrayBase::callGenerate ( )

protected

Makes a call to virtual function generate() when the #_generateFlag is set using triggerGenerate().

clearData()

virtual void sf::xgl::VertexArrayBase::clearData ( )

protectedpure virtual

Clears the data to generate array buffers.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, and sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >.

draw()

virtual void sf::xgl::VertexArrayBase::draw ( )

pure virtual

Draws the vertex array. Specifically called from the paintGL() function of the OpenGL widget.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >, and sf::xgl::VertexArray.

generate()

virtual void sf::xgl::VertexArrayBase::generate ( )

protectedpure virtual

Generate the data needed for creation of vertex array and/or indices. Is or must be called by setup() function.

Implemented in sf::xgl::Axes, sf::xgl::Cone, sf::xgl::Cube, sf::xgl::Cylinder, sf::xgl::Disk, sf::xgl::Dynamic, sf::xgl::Line, sf::xgl::Normals, sf::xgl::Rectangle, sf::xgl::Sphere, and sf::xgl::Tube.

getDefaultColor()

static const Color & sf::xgl::VertexArrayBase::getDefaultColor ( )

static

Gets the default color used by the vertex structures when not set by the derived class. Created to have a single location for the default color.
An example how it is used:

struct Vertex
{
  vector3f position;
  vector3f normal;
  // Use the function here to initialize.
  vector4f color{getDefaultColor()};
};

getNormalsData()

virtual NormalsDataType sf::xgl::VertexArrayBase::getNormalsData ( ) const

pure virtual

Gets the information from the vertices to make normals visible.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, and sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >.

getRenderOptions()

RenderOptions sf::xgl::VertexArrayBase::getRenderOptions

(

)

const

Gets the render options.

hasColor()

virtual bool sf::xgl::VertexArrayBase::hasColor ( ) const

pure virtual

Determines if Vertex has a color component.

Returns

True when a color is present in the vertex.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, and sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >.

hasTexture()

virtual bool sf::xgl::VertexArrayBase::hasTexture ( ) const

pure virtual

Determines if Vertex has a texture mapping component.

Returns

True when a texture mapping is present in the vertex.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, and sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >.

isTriggered()

bool sf::xgl::VertexArrayBase::isTriggered ( ) const

protected

Gets the flag if data is to be (re-)generated. Flag is set to True initially.

Returns

True when triggerd.

modifyContext()

virtual void sf::xgl::VertexArrayBase::modifyContext ( bool  before, bool  draw, size_t  mode_index  )

protectedvirtual

Allows modifying the OpenGL context before and after drawing.

Parameters

before	True when this function is called before drawing and False when after.
draw	True when called for drawing and not painting (is old style OpenGL).
mode_index	Index of the mode list. When painting the

Reimplemented in sf::xgl::Line, and sf::xgl::Normals.

paint()

virtual void sf::xgl::VertexArrayBase::paint ( )

pure virtual

Paints the object old style OpenGL.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >, and sf::xgl::VertexArray.

setDefaultColor()

static void sf::xgl::VertexArrayBase::setDefaultColor ( const QColor &  color )

static

Sets the default color used by the vertex structures when not set by the derived class.

setRenderOptions()

void sf::xgl::VertexArrayBase::setRenderOptions

(

RenderOptions

options

)

Modify the render options which will trigger a regeneration of the vertices and indices.

setup()

virtual bool sf::xgl::VertexArrayBase::setup ( )

protectedpure virtual

Sets up the vertex array for the OpenGL context.

Implemented in sf::xgl::TVertexArray< VertexMembers >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal >, sf::xgl::TVertexArray< VertexArrayBase::vmPosition|VertexArrayBase::vmNormal|VertexArrayBase::vmColor|VertexArrayBase::vmTexCoord >, and sf::xgl::VertexArray.

triggerGenerate()

void sf::xgl::VertexArrayBase::triggerGenerate

(

)

Sets a flag to trigger data generation when the data is called for.

---

The documentation for this class was generated from the following file:

• VertexArrayBase.h
