OpenGL base class and wrapper template for vertex arrays. Automates most of the things needed for primitive objects. More...

#include <TVertexArray.h>

Inheritance diagram for sf::xgl::TVertexArray< VertexMembers >:

[legend]

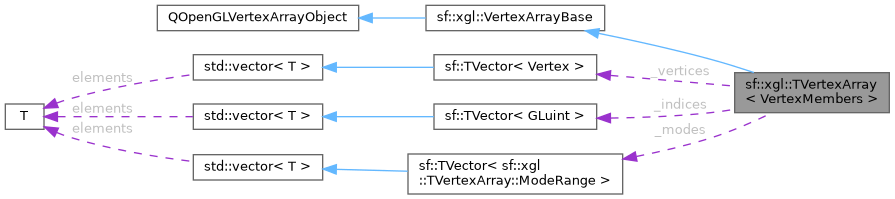

Collaboration diagram for sf::xgl::TVertexArray< VertexMembers >:

[legend]

Classes
struct	ModeRange
	Modes to be called on the available indices. More...

struct	VT_Position
	Available structure for a typical selection of members. More...

struct	VT_PositionColor
	Available structure for a typical selection of members. More...

struct	VT_PositionNormal
	Available structure for a typical selection of members. More...

struct	VT_PositionNormalColor
	Available structure for a typical selection of members. More...

struct	VT_PositionNormalColorTexture
	Available structure for a typical selection of members. More...

struct	VT_PositionNormalTexture
	Available structure for a typical selection of members. More...

struct	VT_PositionTexture
	Available structure for a typical selection of members. More...

Public Member Functions
	TVertexArray (ShaderProgram *sp)
	Constructor.

	~TVertexArray () override
	Virtual destructor.

ShaderProgram *	shaderProgram ()
	Gets the associated shader program.

void	draw () final
	Overridden from base class VertexArrayBase. Uses new style OpenGL with a shader program.

void	paint () final
	Overridden from base class VertexArrayBase. Uses old style OpenGL without a shader program.

bool	hasColor () const final
	Overridden from base class VertexArrayBase.

bool	hasTexture () const final
	Overridden from base class VertexArrayBase.

void	setTexture (QOpenGLTexture *texture)
	Assigns the texture.

NormalsDataType	getNormalsData () const override
	Overridden from base class.

void	clearData () override
	Clears the data to generate array buffers.

Public Member Functions inherited from sf::xgl::VertexArrayBase
	VertexArrayBase (QObject *parent=nullptr)
	Default Qt object constructor.

void	triggerGenerate ()
	Sets a flag to trigger data generation when the data is called for.

void	setRenderOptions (RenderOptions options)
	Modify the render options which will trigger a regeneration of the vertices and indices.

RenderOptions	getRenderOptions () const
	Gets the render options.

Protected Types
using	Vertex = std::conditional_t< VertexMembers==vmPosition, VT_Position, std::conditional_t< VertexMembers==(vmPosition\|vmColor), VT_PositionColor, std::conditional_t< VertexMembers==(vmPosition\|vmNormal), VT_PositionNormal, std::conditional_t< VertexMembers==(vmPosition\|vmNormal\|vmColor), VT_PositionNormalColor, std::conditional_t< VertexMembers==(vmPosition\|vmTexCoord), VT_PositionTexture, std::conditional_t< VertexMembers==(vmPosition\|vmNormal\|vmTexCoord), VT_PositionNormalTexture, std::conditional_t< VertexMembers==(vmPosition\|vmNormal\|vmColor\|vmTexCoord), VT_PositionNormalColorTexture, void > > > > > > >
	Conditional vertex structure type. Used for memory locations.

typedef TVector< GLuint >	IndexVectorType
	Type definition for storing indices.

Protected Member Functions
bool	setup () override
	Sets up the vertex array for the OpenGL context.

void	setupLayout ()
	Sets up the layout of the Vertex structure for OpenGL.

template<typename VertexType , typename FieldType >
void	setAttribPointer (ShaderProgram::Attribute sa, size_t offset)
	Makes a call to setVertexAttribPointer().

void	callModifyContext (const ModeRange &mr, bool before, bool draw, size_t mode_index)
	Calls the function modifyContext when overridden.

bool	checkData () const
	Check the data integrity of indices to vertices,.

Protected Member Functions inherited from sf::xgl::VertexArrayBase
bool	callGenerate ()
	Makes a call to virtual function generate() when the #_generateFlag is set using triggerGenerate().

virtual void	generate ()=0
	Generate the data needed for creation of vertex array and/or indices. Is or must be called by setup() function.

virtual void	modifyContext (bool before, bool draw, size_t mode_index)
	Allows modifying the OpenGL context before and after drawing.

bool	isTriggered () const
	Gets the flag if data is to be (re-)generated. Flag is set to True initially.

Protected Attributes
TVector< Vertex >	_vertices
	Holds the data of the vertices before being copied to OpenGL memory.

IndexVectorType	_indices
	Holds the data of the indices for solid and wire drawing.

TVector< ModeRange >	_modes
	Modes to call glDrawArrays() or glDrawElements() depending on the _indices member not being empty.

Additional Inherited Members
Public Types inherited from sf::xgl::VertexArrayBase
enum	EVertexMember : VertexMember { vmPosition = 1 << 0 , vmNormal = 1 << 1 , vmColor = 1 << 2 , vmTexCoord = 1 << 3 }
	Possible member of a vertex structure. Where the position can not be omitted as part of the vertex. More...

enum	EDrawMode { dmDrawArrays , dmDrawElements }
	Drawing mode of by the template. More...

enum	ERenderOption : int { roNone = 0 , roWires = 1 << 0 , roNormals = 1 << 1 }
	Render options. More...

typedef unsigned	VertexMember
	Type used to describe vertex structure members.

typedef TVector< std::pair< vector3f, vector3f > >	NormalsDataType
	Type for extracting normals from all used vertices.

Static Public Member Functions inherited from sf::xgl::VertexArrayBase
static const Color &	getDefaultColor ()
	Gets the default color used by the vertex structures when not set by the derived class. Created to have a single location for the default color. An example how it is used:

static void	setDefaultColor (const QColor &color)
	Sets the default color used by the vertex structures when not set by the derived class.

Detailed Description

template<VertexArrayBase::VertexMember VertexMembers>
class sf::xgl::TVertexArray< VertexMembers >

OpenGL base class and wrapper template for vertex arrays. Automates most of the things needed for primitive objects.

Member Typedef Documentation

◆ IndexVectorType

template<VertexArrayBase::VertexMember VertexMembers>

typedef TVector<GLuint> sf::xgl::TVertexArray< VertexMembers >::IndexVectorType

protected

Type definition for storing indices.

◆ Vertex

template<VertexArrayBase::VertexMember VertexMembers>

using sf::xgl::TVertexArray< VertexMembers >::Vertex = std::conditional_t< VertexMembers == vmPosition, VT_Position, std::conditional_t< VertexMembers == (vmPosition | vmColor), VT_PositionColor, std::conditional_t< VertexMembers == (vmPosition | vmNormal), VT_PositionNormal, std::conditional_t< VertexMembers == (vmPosition | vmNormal | vmColor), VT_PositionNormalColor, std::conditional_t< VertexMembers == (vmPosition | vmTexCoord), VT_PositionTexture, std::conditional_t< VertexMembers == (vmPosition | vmNormal | vmTexCoord), VT_PositionNormalTexture, std::conditional_t< VertexMembers == (vmPosition | vmNormal | vmColor | vmTexCoord), VT_PositionNormalColorTexture, void> >> >> >>

protected

Conditional vertex structure type. Used for memory locations.

Constructor & Destructor Documentation

◆ TVertexArray()

template<VertexArrayBase::VertexMember VertexMembers>

sf::xgl::TVertexArray< VertexMembers >::TVertexArray ( ShaderProgram * sp )

explicit

Constructor.

Parameters

sp	Shader program instance.

◆ ~TVertexArray()

template<VertexArrayBase::VertexMember VertexMembers>

sf::xgl::TVertexArray< VertexMembers >::~TVertexArray ( )

override

Virtual destructor.

Member Function Documentation

◆ callModifyContext()

template<VertexArrayBase::VertexMember VertexMembers>

void sf::xgl::TVertexArray< VertexMembers >::callModifyContext	(	const ModeRange &	mr,
		bool	before,
		bool	draw,
		size_t	mode_index
	)

protected

Calls the function modifyContext when overridden.

Parameters

mr	Mode range getting rendered.
before
draw
mode_index

◆ checkData()

template<VertexArrayBase::VertexMember VertexMembers>

bool sf::xgl::TVertexArray< VertexMembers >::checkData ( ) const

protected

Check the data integrity of indices to vertices,.

Returns: False when data does not check out.

◆ clearData()

template<VertexArrayBase::VertexMember VertexMembers>

void sf::xgl::TVertexArray< VertexMembers >::clearData ( )

overridevirtual

Clears the data to generate array buffers.

Implements sf::xgl::VertexArrayBase.

◆ draw()

template<VertexArrayBase::VertexMember VertexMembers>

void sf::xgl::TVertexArray< VertexMembers >::draw ( )

finalvirtual

Overridden from base class VertexArrayBase. Uses new style OpenGL with a shader program.

Implements sf::xgl::VertexArrayBase.

◆ getNormalsData()

template<VertexArrayBase::VertexMember VertexMembers>

NormalsDataType sf::xgl::TVertexArray< VertexMembers >::getNormalsData ( ) const

overridevirtual

Overridden from base class.

Implements sf::xgl::VertexArrayBase.

◆ hasColor()

template<VertexArrayBase::VertexMember VertexMembers>

bool sf::xgl::TVertexArray< VertexMembers >::hasColor ( ) const

finalvirtual

Overridden from base class VertexArrayBase.

Implements sf::xgl::VertexArrayBase.

◆ hasTexture()

template<VertexArrayBase::VertexMember VertexMembers>

bool sf::xgl::TVertexArray< VertexMembers >::hasTexture ( ) const

finalvirtual

Overridden from base class VertexArrayBase.

Implements sf::xgl::VertexArrayBase.

◆ paint()

template<VertexArrayBase::VertexMember VertexMembers>

void sf::xgl::TVertexArray< VertexMembers >::paint ( )

finalvirtual

Overridden from base class VertexArrayBase. Uses old style OpenGL without a shader program.

Implements sf::xgl::VertexArrayBase.

◆ setAttribPointer()

template<VertexArrayBase::VertexMember VertexMembers>

template<typename VertexType , typename FieldType >

void sf::xgl::TVertexArray< VertexMembers >::setAttribPointer	(	ShaderProgram::Attribute	sa,
		size_t	offset
	)

protected

Makes a call to setVertexAttribPointer().

Template Parameters

VertexType	The vertex structure.
FieldType	Structure field which is a std::array<> having a 'value_type'.

Parameters

sa	Shader attribute.
offset

◆ setTexture()

template<VertexArrayBase::VertexMember VertexMembers>

void sf::xgl::TVertexArray< VertexMembers >::setTexture ( QOpenGLTexture * texture )

Assigns the texture.

Parameters

texture

◆ setup()

template<VertexArrayBase::VertexMember VertexMembers>

bool sf::xgl::TVertexArray< VertexMembers >::setup ( )

overrideprotectedvirtual

Sets up the vertex array for the OpenGL context.

Implements sf::xgl::VertexArrayBase.

◆ setupLayout()

template<VertexArrayBase::VertexMember VertexMembers>

void sf::xgl::TVertexArray< VertexMembers >::setupLayout ( )

protected

Sets up the layout of the Vertex structure for OpenGL.

◆ shaderProgram()

template<VertexArrayBase::VertexMember VertexMembers>

ShaderProgram * sf::xgl::TVertexArray< VertexMembers >::shaderProgram ( )

Gets the associated shader program.

Returns: Reference to the program.

Member Data Documentation

◆ _indices

template<VertexArrayBase::VertexMember VertexMembers>

IndexVectorType sf::xgl::TVertexArray< VertexMembers >::_indices

protected

Holds the data of the indices for solid and wire drawing.

◆ _modes

template<VertexArrayBase::VertexMember VertexMembers>

TVector<ModeRange> sf::xgl::TVertexArray< VertexMembers >::_modes

protected

Modes to call glDrawArrays() or glDrawElements() depending on the _indices member not being empty.

◆ _vertices

template<VertexArrayBase::VertexMember VertexMembers>

TVector<Vertex> sf::xgl::TVertexArray< VertexMembers >::_vertices

protected

Holds the data of the vertices before being copied to OpenGL memory.

◆ ebo

template<VertexArrayBase::VertexMember VertexMembers>

QOpenGLBuffer sf::xgl::TVertexArray< VertexMembers >::ebo {QOpenGLBuffer::IndexBuffer}

Holds the index buffer object for solid drawing.

◆ vbo

template<VertexArrayBase::VertexMember VertexMembers>

QOpenGLBuffer sf::xgl::TVertexArray< VertexMembers >::vbo {QOpenGLBuffer::VertexBuffer}

Holds the vertex buffer object.

The documentation for this class was generated from the following file:

TVertexArray.h
