sf::ResultDataScriptObject Class Reference

Script object for exporting GII parameters to a script object. More...

#include <ResultDataScriptObject.h>

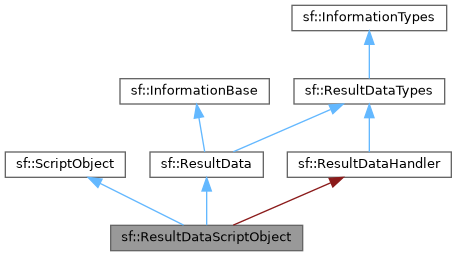

Inheritance diagram for sf::ResultDataScriptObject:

Collaboration diagram for sf::ResultDataScriptObject:

Public Member Functions
	ResultDataScriptObject (const Parameters &params)
std::string	getStatusText () override
	Gets the status text of this object for debugging purposes.
Public Member Functions inherited from sf::ScriptObject
	ScriptObject (const char *type_name, ScriptObject *parent=nullptr)
virtual	~ScriptObject ()=default
	Virtual destructor which can be overloaded to clean up objects.
int	getRefCount () const
	Gets the reference count.
	operator Value () const
	Cast operator to be able to return this instance as a Value.
std::string	getTypeName () const
	Returns the type name Set at the constructor.
ScriptObject *	getParent ()
	Gets the script object owner.
const ScriptObject *	getParent () const
	Gets the script object owner.
ScriptObject *	castToObject (const Value &value)
	Casts a sf::Value::vitCustom typed sf::Value to a ScriptObject typed pointer.
Public Member Functions inherited from sf::ResultData
	ResultData ()
	Default constructor.
	ResultData (const ResultData &rd)
	Copy constructor. Sets the reference as the passed instance.
	ResultData (id_type id, bool set_desired=false)
	Constructor for creating an instance that attaches to an existing reference by id.
	ResultData (const std::string &definition, id_type id_ofs=0)
	Constructor for creating a completely new reference.
	ResultData (const Definition &definition, id_type id_ofs=0)
	Creates a new result using the passed definition structure.
	~ResultData () override
	Overridden destructor.
bool	setup (const std::string &definition, id_type id_ofs=0)
	Creates a new reference from a setup string for this instance.
bool	setup (const Definition &definition, id_type id_ofs)
	Creates a new TResultDataReference from a structure for this instance.
bool	setup (const ResultData &rd)
	Sets reference as the reference in the past instance.
bool	setup (id_type id, bool set_did=false)
	Sets reference to other by id. The global list of references is searched for the passed id and referenced when found. When found event reIdChanged is emitted. When the desired id was set and changed the reDesiredId event is emitted. Cannot be used for local variables.
std::string	getSetupString () const
	Gets the setup string for this instance.
bool	setAccessRange (const Range &rng, bool skip_self=false)
	Sets the accessible range. When needed the method calls setReservedBlockCount() to match the given range emitting the reReserve event. When the range is increased an reAccessChange event is emitted.
bool	setAccessRange (Range::size_type stop, bool skip_self=false)
	Same as setAccessRange where the start value is default 0.
void	setHandler (ResultDataHandler *handler)
	Sets an event handler for this instance.
const ResultDataHandler *	getHandler () const
	Gets the handler pointer of this instance set with setHandler().
void	makeOwner ()
	Make this instance owner of this result.
ResultData &	getOwner () const
	Gets reference of the owning instance.
bool	isOwner () const
	Checks if this is the owner of this result.
void	setUserData (void *data)
	Sets the void pointer data member for general purposes to cast in a handler.
void *	getUserData () const
	Gets the UserData void pointer data member.
bool	isValid () const
	Gets the instance validity.
data_type	getValueOffset () const
	Returns the correction offset for each value to get the real value.
data_type	getValueRange () const
	Gets the value range (max) taking the significant bits into account.
sdata_type	getValue (const void *data) const
	Returns the value derived from a buffer data pointer mapped to the appropriate type and corrected with the results offset.
data_type	getValueU (const void *data) const
	Same as getValue but no offset is added.
sdata_type	getValue (size_type idx, const void *data) const
	Same as getValue() but now from the instance at the passed index from the array of the results type.
data_type	getValueU (size_type idx, const void *data) const
	Same as getValue but no offset is added.
id_type	getId () const
	Returns the result identifier.
id_type	getDesiredId () const
	Gets the desired id data member value.
id_type	getSequenceId () const
	Gets the sequential id of this instance.
std::string	getName (int levels=0) const
	Gets the result data name which is default the full result data path name. When levels is 'n' and larger than zero the last 'n' levels are returned. When levels is 'n' and smaller than zero the first 'n' levels are omitted.
int	getNameLevelCount () const
	Gets the amount of levels of the fullname path.
std::string	getDescription () const
	Gets the instance description.
void	setDesiredId ()
	Sets the desired id member variable to the current reference id.
void	setDesiredId (id_type id)
	Sets the desired id member variable to the passed id. If the passed 'id' is zero the automatic attachment mechanism is disabled.
template<typename T >
void	setData (T data)
	Sets the data for this instance for user purposes.
template<typename T = uint64_t>
T	getData () const
	Gets the data for this instance for user purposes Set with setData().
size_type	getUsageCount () const
	Gets the usage count of this result reference.
const FileMappedStorage &	getDataStore () const
	Returns reference to underlying multithreaded safe storage class. To access the data a local data store class must be wrapped around it.
size_type	getBufferSize (size_type blocks) const
	Gets the size in bytes needed for buffers for reading or writing the amount of blocks.
size_type	getBufferSize (const Range &rng) const
	Gets the size in bytes needed for buffers for reading or writing the range.
size_type	getBlockSize () const
	Gets the block size in bytes.
Range::size_type	getBlockCount () const
	Gets the accessible block count which does not mean it is valid.
FileMappedStorage::size_type	getSegmentSize () const
	Gets the segment size in blocks.
FileMappedStorage::size_type	getSegmentCount () const
	Gets the accessible segment count.
FileMappedStorage::size_type	getReservedBlockCount () const
	Get the amount of reserved blocks.
FileMappedStorage::size_type	getReservedSize () const
	Returns the total reserved size in bytes for this instance. Taking recycling into account. Don't use this to see if enough data is reserved or so.
bool	blockRead (Range::size_type ofs, Range::size_type sz, void *dest, bool force=false) const
	Reads blocks from the storage using an offset. This function also calls isRangeValid() to check the validity of the data.
bool	blockRead (const Range &rng, void *dest, bool force=false) const
	Reads a range of blocks from storage. This function also calls isRangeValid() to check the validity of the data.
bool	readIndexRange (Range::size_type ofs, Range &range) const
	Reads a range when this instance holds indices. An index instance groups blocks together for processing/imaging purposes.
bool	readIndexRange (const Range &index, Range &range) const
	Reads a range when this instance holds indices.
bool	isRangeValid (Range::size_type ofs, Range::size_type sz) const
	Checks if the passed block range depicted by offset and size is valid to access/read.
bool	isRangeValid (const Range &rng) const
	Checks if the passed block range is valid to access/read.
bool	isIndexRangeValid (const Range &rng) const
	Gets if the specified index range is valid.
const Range &	getAccessRange () const
	Gets the accessible block range where the stop value. Is the same as the result of calling 'getBlockCount'.
bool	getRequests (Range::Vector &requests) const
	Returns a copy of the client requests that are out for data for only the owner. This list is already narrowed down to essential ranges.
bool	getSplitRequests (Range::Vector &req_list) const
	Returns the ranges which are bound by the segment bounds.
std::ostream &	reportStatus (std::ostream &os) const
	Reports the status as in the past 'std::ostream'.
Range::id_type	getTransId () const
	Gets the transaction id used in requests of data.
bool	blockWrite (Range::size_type ofs, Range::size_type sz, const void *src, bool auto_reserve=false)
	For owners to writes data to storage in using an offset and size in blocks. Written data needs to be committed using commitValidations() which emits the events to all event handlers. Passing npos as offset means that the data is appended and getBlockCount is called internally to get the offset.
bool	blockWrite (const Range &rng, const void *src, bool auto_reserve=false)
	For owners to writes data to storage in using a range in blocks.
size_type	commitValidations (bool skip_self=false)
	Commits all validated ranges and to notifies assigned handlers. Emits the reCommitted event to all handlers of this instance.
bool	setReservedBlockCount (Range::size_type sz, bool skip_self=false)
	Sets the amount of blocks to reserve only for owners. This method is called underwater when 'auto_reserve' is true in a call to blockWrite(). Emits event reReserve to all instance handlers.
bool	clearValidations (bool skip_self=false) const
	Clears all the valid ranges of this instance. It generates an event reClear before it is actually cleared.
void	validateRange (Range::size_type ofs, Range::size_type sz) const
	Adds a validated range of blocks for committing later. Only available for owners. This method is useful when file mapped storage is written when locking it in memory when not using method blockWrite() which implies this.
void	validateRange (Range rng) const
	Adds a validated range of blocks for committing later. Only available for owners. This method is useful when file mapped storage is written when locking it in memory when not using method blockWrite() which implies this.
void	validateRange (const Range::Vector &rl) const
	Like validateRange() but for a vector/list of ranges.
bool	requestRange (Range::size_type ofs, Range::size_type sz)
	Requests a range using offset and size in blocks to validate. Emits event reGetRange to the owner when a handler is assigned to it. Returns false when the request was rejected by the range manager due to being already valid or when the range is not within the current accessible range.
bool	requestRange (const Range &rng)
	Requests a range in blocks to validate.
bool	requestIndexRange (const Range &rng)
	Same as requestRange() but for when this instance is an index.
void	clearRequests () const
	Clears the outstanding requests for only this instance. Enables making fresh start in events.
bool	isFlag (int flag) const
	Check if a certain flag or flags (mask) are set.
bool	setFlag (int flag, bool skip_self)
	Sets a flag or multiple flags allowed by owners only.
bool	unsetFlag (int flag, bool skip_self)
	Unsets a flag or multiple flags allowed by owners only.
std::string	getCurFlagsString () const
	Gets the current flags as a string.
std::string	getFlagsString () const
	Gets the original setup flags as a string.
bool	updateFlags (int flags, bool skip_self)
	Sets a new set flags for this instance allowed by owners only.
flags_type	getFlags () const
	Gets the set of flags at setup time.
flags_type	getCurFlags () const
	Gets the current flags of this instance.
EType	getType () const
	Gets current type of the instance.
size_type	getTypeSize () const
	Gets the byte size of this instance's type.
unsigned	getSignificantBits () const
	Gets the significant bits of the type used for this result.
bool	writeUpdate (std::ostream &os) const
	Writes id and current access range and current flags to the stream.
ResultData &	operator= (const ResultData &rd)
	Assigns the reference of the passed instance. Calls actually setup(const ResultData& rd).
bool	operator== (const ResultData &rd) const
	Comparison operator.
void	operator delete (void *)
	During events no instances should be deleted. The destructor will be called but the data still exist.
void	setDebug (bool debug) const
	Sets the debug flag for this instance reference.
bool	isDebug () const
	Gets the debug flag of the instance reference.
const ResultDataReference &	getReference () const
	Gets the underlying reference class of this instance.
const Range::Vector &	getCommitList () const
	Gets a vector of ranges still to be committed.
const Range::Vector &	getValidatedList () const
	Gets a vector of ranges that are validated.
size_type	getSegmentLocks () const
	Gets the accumulation of locks on segments.
size_type	emitEvent (EEvent event, const Range &rng, bool skip_self=false)
	Initiate event for all instances of this result. If skip_self is 'true' this instance is left out of the list.
Public Member Functions inherited from sf::InformationBase
virtual	~InformationBase ()=default
	Virtual destructor so derived classes can be destroyed by a pointer of this type.
Public Member Functions inherited from sf::InformationTypes
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), data_type >	toDataType (T value) const
	Casts any type to a data_type value.
template<typename T >
constexpr std::enable_if_t<(sizeof(T)<=sizeof(data_type)), T >	fromDataType (data_type value) const
	Casts a data_type value to a given type.

Protected Member Functions
const IdInfo *	getInfo (const std::string &name) const override
	Must be overloaded for member namespace.
void	destroyObject (bool &should_delete) override
	Asks if the object should be deleted after having made this call.
bool	getSetValue (const IdInfo *info, Value *value, Value::vector_type *params, bool flag_set) override
	Gets or sets the passed data member. Must be overloaded in derived class.
Protected Member Functions inherited from sf::ScriptObject
void	makeParent (ScriptObject *so)
	Makes this object the owner of the other object.
void	setParent (ScriptObject *parent)
	Sets the owner to the pass script object.

Additional Inherited Members
Public Types inherited from sf::ScriptObject
enum	EIdentifier {   idUnknown = 0 , idConstant , idVariable , idFunction ,   idTypedef , idKeyword }
	Keyword identifiers. More...
typedef std::string::size_type	pos_type
	Source position type.
typedef ssize_t	ip_type
	Instruction pointer type.
Public Types inherited from sf::ResultDataTypes
enum	EEvent : int {   reNewId = -32000 , reUserGlobal , reFirstLocal = 0 , reFlagsChange ,   reAccessChange , reCommitted , reReserve , reInvalid ,   reClear , reUserLocal , reFirstPrivate = 16000 , reSetup ,   reIdChanged , reDesiredId , reRemove , reGetOwner ,   reLostOwner , reLinked , reUnlinked , reGotRange ,   reGetRange , reUserPrivate }
	Event enumerate values used in broadcasting where global events have a negative value. More...
enum	EField : int {   rfId = 0 , rfName , rfFlags , rfDescription ,   rfType , rfBlockSize , rfSegmentSize , rfSigBits ,   rfOffset }
	This enumerate is the order of fields in the setup string. More...
enum	EType : int {   rtInvalid = 0 , rtString , rtInt8 , rtInt16 ,   rtInt32 , rtInt64 , rtLastEntry }
	This enumerate is used to identify the type of data. More...
enum	EFlag : flags_type { flgRecycle = 1 << 0 , flgArchive = 1 << 1 , flgShare = 1 << 2 , flgHidden = 1 << 3 }
	Flags of the flags description field. More...
enum	ERangeInfo {   riAvailable = 1 << 0 , riAccessible = 1 << 1 , riPartialAccessible = 1 << 2 , riRequested = 1 << 3 ,   riAddressable = 1 << 5 , riSegmented = 1 << 4 }
	Enumerate for range information bit values. More...
typedef TVector< ResultData * >	PtrVector
	Vector for pointer to results.
typedef TVector< ResultData >	Vector
	Vector for instances of results.
typedef TVector< ResultDataReference * >	ReferenceVector
	Type for internal use.
Public Types inherited from sf::InformationTypes
typedef unsigned long long	id_type
	Type used for the identifying integer (64-bits).
typedef int32_t	flags_type
	Type used for the flag integer.
typedef size_t	size_type
	Type used for size of vectors.
typedef uint64_t	data_type
	Type used for containing a single data element which is the largest integer.
typedef int64_t	sdata_type
	Type used for containing a single data element which is the largest signed integer.
typedef TVector< id_type >	IdVector
	Vector for lists of information ID's.
typedef TVector< InformationBase * >	Vector
	Vector for containing different information base derived classes.
Static Public Member Functions inherited from sf::ScriptObject
static const IdInfo *	getInfoUnknown ()
	Returns the static Info structure for unknowns.
Static Public Member Functions inherited from sf::ResultData
static void	initialize ()
	Must be called to initialize the statics which this class depends on.
static void	uninitialize ()
	Called when terminating the application.
static EType	getType (std::string_view type)
	Gets the type from the passed string name.
static std::string	getType (EType type)
	Gets the string typename of the passed enumerate value.
static size_type	getTypeSize (EType type)
	Gets the size of the passed enumerate type value.
static size_type	getCount ()
	Gets the amount of references in the system. In fact the amount references in the system excluding the zero one.
static size_type	getInstanceCount ()
	Gets the amount of result data instances in the system.
static PtrVector	getList ()
	Gets a list of owner instances available. Useful in populating a selection dialog.
static std::string	getFieldName (int field)
	Gets the name of the passed field enumerate EField.
static const ResultData &	getInstanceById (id_type id)
	Gets instance with the given id otherwise the zero instance.
static const ResultData &	getInstanceById (id_type id, const PtrVector &list)
	Finds instance in the past vector having the passed id. When not found it te returns a reference to the zero instance.
static const ResultData &	getInstanceBySequenceId (id_type seq_id, const PtrVector &list)
	Finds instance in passed vector. in vector with passed sequential ID and returns a reference to it. If not found it returns ZeroResultData.
static size_type	getTotalReservedSize ()
	Gets the total amount of bytes reserved by all instances.
static bool	create (std::istream &is, PtrVector &list=null_ref< PtrVector >(), int &err_line=null_ref< int >())
	Setup multiple instances from an input stream. Useful when reading a data file.
static bool	readUpdate (std::istream &is, bool skip_self, PtrVector &list=null_ref< PtrVector >())
	Read new multiple current access range and current flags are read from stream. Used in communication between applications.
static Definition	getDefinition (const std::string &str)
	Fills a definition structure from a string. On failure the _valid field is set to false.
static flags_type	toFlags (const std::string &flags)
	Gets flags enumerate combination of the passed flags string.
static std::string	getFlagsString (flags_type flags)
	Gets flags string from the passed flags passed.
static std::string_view	getEventName (EEvent event)
	Gets the name of the passed EEvent number.
Static Public Attributes inherited from sf::InformationTypes
static constexpr size_t	npos = std::numeric_limits<size_type>::max()
	Unsigned size value indicating not found or no index.

Detailed Description

Script object for exporting GII parameters to a script object.

Constructor & Destructor Documentation

ResultDataScriptObject()

sf::ResultDataScriptObject::ResultDataScriptObject ( const Parameters &  params )

explicit

Member Function Documentation

destroyObject()

void sf::ResultDataScriptObject::destroyObject ( bool &  should_delete )

inlineoverrideprotectedvirtual

Asks if the object should be deleted after having made this call.

Implements sf::ScriptObject.

getInfo()

const IdInfo * sf::ResultDataScriptObject::getInfo ( const std::string &  name ) const

overrideprotectedvirtual

Must be overloaded for member namespace.

Implements sf::ScriptObject.

getSetValue()

bool sf::ResultDataScriptObject::getSetValue ( const IdInfo *  info, Value *  value, Value::vector_type *  params, bool  flag_set  )

overrideprotectedvirtual

Gets or sets the passed data member. Must be overloaded in derived class.

Implements sf::ScriptObject.

getStatusText()

std::string sf::ResultDataScriptObject::getStatusText ( )

overridevirtual

Gets the status text of this object for debugging purposes.

Reimplemented from sf::ScriptObject.

---

The documentation for this class was generated from the following file:

• ResultDataScriptObject.h
