sf::dxf::Entity Struct Reference

Base class for all DXF geometric entities. More...

#include <Entities.h>

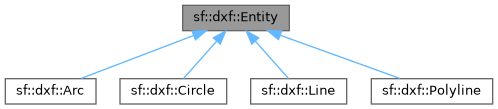

Inheritance diagram for sf::dxf::Entity:

Public Types
enum	Type {   etLine , etPolyline , etCircle , etArc ,   etUnknown }
	Enumeration of supported DXF entity types. More...

Public Member Functions
	Entity (Type type, const QString &layer_name, const QColor &color)
	Constructs a DxfEntity object.
virtual	~Entity ()=default
	Virtual destructor for proper polymorphic cleanup.

Public Attributes
Type	_type
QString	_layerName
QColor	_color
	Color of the entity, derived from layer or entity itself.

Detailed Description

Base class for all DXF geometric entities.

Member Enumeration Documentation

Type

enum sf::dxf::Entity::Type

Enumeration of supported DXF entity types.

Enumerator
etLine	Represents a LINE entity.
etPolyline	Represents a POLYLINE entity.
etCircle	Represents a CIRCLE entity.
etArc	Represents an ARC entity.
etUnknown	Represents an unknown or unsupported entity type.

Constructor & Destructor Documentation

Entity()

sf::dxf::Entity::Entity ( Type  type, const QString &  layer_name, const QColor &  color  )

inline

Constructs a DxfEntity object.

Parameters

type	The type of the DXF entity.
layer_name	The name of the layer the entity belongs to.
color	The color of the entity.

~Entity()

virtual sf::dxf::Entity::~Entity ( )

virtualdefault

Virtual destructor for proper polymorphic cleanup.

Member Data Documentation

_color

QColor sf::dxf::Entity::_color

Color of the entity, derived from layer or entity itself.

_layerName

QString sf::dxf::Entity::_layerName

_type

Type sf::dxf::Entity::_type

---

The documentation for this struct was generated from the following file:

• Entities.h
