Holds the safe position of all scan area in the project. More...

#include <DefaultScanBinder.h>

Inheritance diagram for sf::TDefaultScanBinder::TScanInfo:

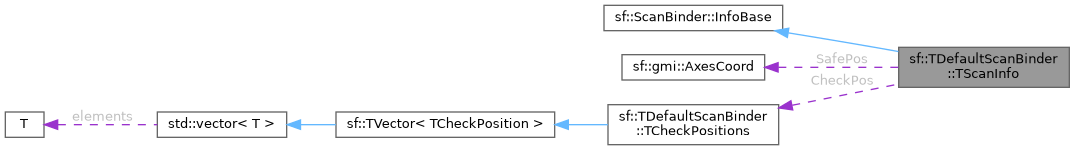

Collaboration diagram for sf::TDefaultScanBinder::TScanInfo:

[legend]

Public Member Functions
	TScanInfo ()

	TScanInfo (const TScanInfo &si)

virtual void	ReadWrite (IniProfile *inifile, bool rd)
	Read or writes the scan scan-binder information to profile. Derived classes need to inherit this member structure to write their added fields to profile.

Public Member Functions inherited from sf::ScanBinder::InfoBase
	InfoBase ()=default
	Default constructor.

virtual	~InfoBase ()=default
	Virtual constructor so the memory management can be done in the scan binders base class.

Public Attributes
gmi::AxesCoord	SafePos
	Holds the scan safe position.

TCheckPositions	CheckPos
	Holds the list of position.

bool	StraightMove
	True when straight index moves are allowed.

bool	Balance
	True when balancing is required for th acquisition device.

bool	Bidirectional
	True when bidirectional scanning is allowed for line scans.

bool	ScanGainActive
	True when a scan gain needs to be added.

Public Attributes inherited from sf::ScanBinder::InfoBase
bool	IgnoreFixtureOffset {false}
	True when the project fixture offset should be ignored.

Detailed Description

Holds the safe position of all scan area in the project.

Constructor & Destructor Documentation

◆ TScanInfo() [1/2]

sf::TDefaultScanBinder::TScanInfo::TScanInfo ( )

inline

◆ TScanInfo() [2/2]

sf::TDefaultScanBinder::TScanInfo::TScanInfo ( const TScanInfo & si )

inline

Member Function Documentation

◆ ReadWrite()

virtual void sf::TDefaultScanBinder::TScanInfo::ReadWrite	(	IniProfile *	ini,
		bool	rd
	)

virtual

Read or writes the scan scan-binder information to profile. Derived classes need to inherit this member structure to write their added fields to profile.

Parameters

ini
rd	True when reading.

Todo:: Method must be renamed to 'store()'

Reimplemented from sf::ScanBinder::InfoBase.

Member Data Documentation

◆ Balance

bool sf::TDefaultScanBinder::TScanInfo::Balance

True when balancing is required for th acquisition device.

◆ Bidirectional

bool sf::TDefaultScanBinder::TScanInfo::Bidirectional

True when bidirectional scanning is allowed for line scans.

◆ CheckPos

TCheckPositions sf::TDefaultScanBinder::TScanInfo::CheckPos

Holds the list of position.

◆ SafePos

gmi::AxesCoord sf::TDefaultScanBinder::TScanInfo::SafePos

Holds the scan safe position.

◆ ScanGainActive

bool sf::TDefaultScanBinder::TScanInfo::ScanGainActive

True when a scan gain needs to be added.

◆ StraightMove

bool sf::TDefaultScanBinder::TScanInfo::StraightMove

True when straight index moves are allowed.

The documentation for this struct was generated from the following file:

DefaultScanBinder.h
