Holds the safe position of all scan area in the project. More...

#include <DefaultScanBinder.h>

Inheritance diagram for sf::DefaultScanBinder::ScanInfo:

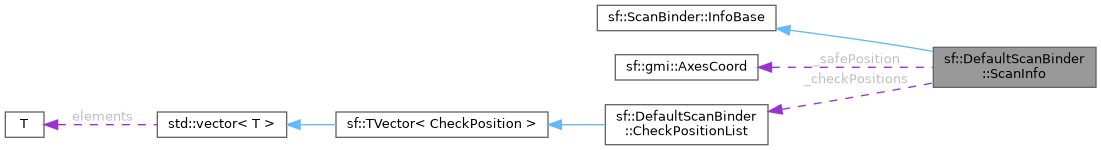

Collaboration diagram for sf::DefaultScanBinder::ScanInfo:

[legend]

Public Member Functions
	ScanInfo ()

	ScanInfo (const ScanInfo &si)

void	ReadWrite (IniProfile *inifile, bool rd) override
	Read or writes the scan scan-binder information to profile. Derived classes need to inherit this member structure to write their added fields to profile.

Public Member Functions inherited from sf::ScanBinder::InfoBase
	InfoBase ()=default
	Default constructor.

virtual	~InfoBase ()=default
	Virtual constructor so the memory management can be done in the scan binders base class.

Public Attributes
gmi::AxesCoord	_safePosition
	Holds the scan safe position.

CheckPositionList	_checkPositions
	Holds the list of position.

bool	_straightMove
	True when straight index moves are allowed.

bool	_balance
	True when balancing is required for th acquisition device.

bool	_bidirectional
	True when bidirectional scanning is allowed for line scans.

bool	_scanGainActive
	True when a scan gain needs to be added.

Public Attributes inherited from sf::ScanBinder::InfoBase
bool	IgnoreFixtureOffset {false}
	True when the project fixture offset should be ignored.

Detailed Description

Holds the safe position of all scan area in the project.

Constructor & Destructor Documentation

◆ ScanInfo() [1/2]

sf::DefaultScanBinder::ScanInfo::ScanInfo ( )

inline

◆ ScanInfo() [2/2]

sf::DefaultScanBinder::ScanInfo::ScanInfo ( const ScanInfo & si )

inline

Member Function Documentation

◆ ReadWrite()

void sf::DefaultScanBinder::ScanInfo::ReadWrite	(	IniProfile *	ini,
		bool	rd
	)

overridevirtual

Read or writes the scan scan-binder information to profile. Derived classes need to inherit this member structure to write their added fields to profile.

Parameters

ini
rd	True when reading.

Todo:: Method must be renamed to 'store()'

Reimplemented from sf::ScanBinder::InfoBase.

Member Data Documentation

◆ _balance

bool sf::DefaultScanBinder::ScanInfo::_balance

True when balancing is required for th acquisition device.

◆ _bidirectional

bool sf::DefaultScanBinder::ScanInfo::_bidirectional

True when bidirectional scanning is allowed for line scans.

◆ _checkPositions

CheckPositionList sf::DefaultScanBinder::ScanInfo::_checkPositions

Holds the list of position.

◆ _safePosition

gmi::AxesCoord sf::DefaultScanBinder::ScanInfo::_safePosition

Holds the scan safe position.

◆ _scanGainActive

bool sf::DefaultScanBinder::ScanInfo::_scanGainActive

True when a scan gain needs to be added.

◆ _straightMove

bool sf::DefaultScanBinder::ScanInfo::_straightMove

True when straight index moves are allowed.

The documentation for this struct was generated from the following file:

DefaultScanBinder.h
