sf::ThreadRelay::RelayBase Class Reference

Base class for the ThreadRelay::Relay0,1,2,3 templates for storing in a list. More...

#include <ThreadRelay.h>

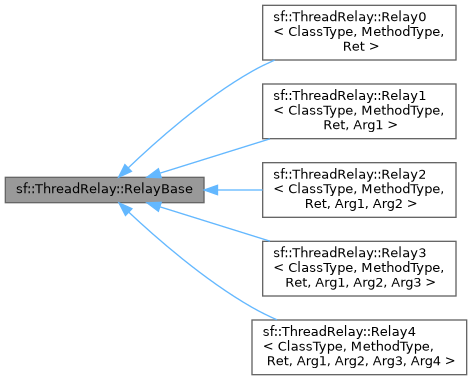

Inheritance diagram for sf::ThreadRelay::RelayBase:

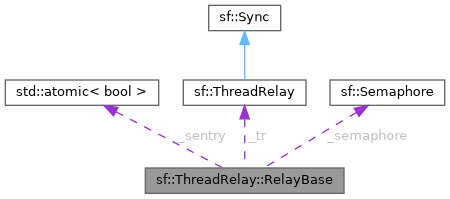

Collaboration diagram for sf::ThreadRelay::RelayBase:

Public Member Functions
	RelayBase (ThreadRelay &tr)
	Constructor.
virtual	~RelayBase ()=default
	Default virtual destructor.
virtual void	call ()=0
	Pure virtual function to override in the derived template class to call a method.
	operator bool ()
	Blocks the thread when the thread id is different then the thread which created the ThreadRelay instance.

Protected Attributes
std::atomic< bool >	_sentry {false}
	Prevents the execution of the method more the once.
ThreadRelay &	_tr
	Prevents the execution of the method more the once.
Semaphore	_semaphore
	Holds the semaphore to stop the thread until the method is executed.
friend	ThreadRelay

Detailed Description

Base class for the ThreadRelay::Relay0,1,2,3 templates for storing in a list.

Constructor & Destructor Documentation

RelayBase()

sf::ThreadRelay::RelayBase::RelayBase ( ThreadRelay &  tr )

inlineexplicit

Constructor.

~RelayBase()

virtual sf::ThreadRelay::RelayBase::~RelayBase ( )

virtualdefault

Default virtual destructor.

Member Function Documentation

call()

virtual void sf::ThreadRelay::RelayBase::call ( )

pure virtual

Pure virtual function to override in the derived template class to call a method.

operator bool()

sf::ThreadRelay::RelayBase::operator bool ( )

explicit

Blocks the thread when the thread id is different then the thread which created the ThreadRelay instance.

Returns

True when acquired.

Member Data Documentation

_semaphore

Semaphore sf::ThreadRelay::RelayBase::_semaphore

protected

Holds the semaphore to stop the thread until the method is executed.

_sentry

std::atomic<bool> sf::ThreadRelay::RelayBase::_sentry {false}

protected

Prevents the execution of the method more the once.

_tr

ThreadRelay& sf::ThreadRelay::RelayBase::_tr

protected

Prevents the execution of the method more the once.

ThreadRelay

friend sf::ThreadRelay::RelayBase::ThreadRelay

protected

---

The documentation for this class was generated from the following file:

• ThreadRelay.h
