sf::MultiDocInterface Class Reference

Interface for MDI document widgets handling files. More...

#include <MultiDocInterface.h>

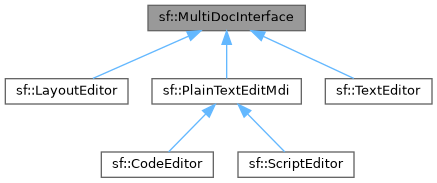

Inheritance diagram for sf::MultiDocInterface:

Collaboration diagram for sf::MultiDocInterface:

Public Member Functions
	MultiDocInterface ()
	Default constructor.
virtual	~MultiDocInterface ()=default
	Virtual destructor.
virtual void	setConnections (QWidget *editor)
	Sets the editor to operate on.
virtual void	newFile ()=0
	Pure virtual needs to be implemented.
virtual bool	loadFile (const QString &fileName)=0
	Pure virtual needs to be implemented.
virtual bool	save ()=0
	Pure virtual needs to be implemented.
virtual bool	saveAs ()=0
	Pure virtual needs to be implemented.
virtual QString	userFriendlyCurrentFile () const =0
	Pure virtual needs to be implemented.
virtual QString	currentFile () const =0
	Pure virtual needs to be implemented.
virtual bool	isModified () const =0
	Pure virtual needs to be implemented.
virtual bool	hasSelection () const =0
	Pure virtual needs to be implemented.
virtual bool	isUndoRedoEnabled () const =0
	Pure virtual needs to be implemented.
virtual bool	isUndoAvailable () const =0
	Pure virtual needs to be implemented.
virtual bool	isRedoAvailable () const =0
	Pure virtual needs to be implemented.
virtual void	cut ()=0
	Pure virtual needs to be implemented.
virtual void	copy ()=0
	Pure virtual needs to be implemented.
virtual void	paste ()=0
	Pure virtual needs to be implemented.
virtual void	undo ()=0
	Pure virtual needs to be implemented.
virtual void	redo ()=0
	Pure virtual needs to be implemented.
virtual bool	canClose () const
	When the document is modified this function shows a message box with 3 options to save or not or to cancel closing the document.
QString	getFileTypeFilters () const
virtual void	stateSaveRestore (bool save)
	Saves or restores the state of the MDI instance.
void	activate (bool)
	Called by application when this document is activated deactivated.
virtual void	develop ()
	Virtual function which is called during development only fro an action.

Public Attributes
MultiDocInterfaceSignals	mdiSignals
	Instance to connect signal handlers onto.

Detailed Description

Interface for MDI document widgets handling files.

Constructor & Destructor Documentation

MultiDocInterface()

sf::MultiDocInterface::MultiDocInterface ( )

explicit

Default constructor.

~MultiDocInterface()

virtual sf::MultiDocInterface::~MultiDocInterface ( )

virtualdefault

Virtual destructor.

Member Function Documentation

activate()

void sf::MultiDocInterface::activate

(

bool

)

Called by application when this document is activated deactivated.

canClose()

virtual bool sf::MultiDocInterface::canClose ( ) const

virtual

When the document is modified this function shows a message box with 3 options to save or not or to cancel closing the document.

It returns true when saved or not saved and false when cancelled. Can be overridden for other purposes.

Returns

True when it can be closed.

copy()

virtual void sf::MultiDocInterface::copy ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

currentFile()

virtual QString sf::MultiDocInterface::currentFile ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

cut()

virtual void sf::MultiDocInterface::cut ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

develop()

virtual void sf::MultiDocInterface::develop ( )

virtual

Virtual function which is called during development only fro an action.

Allows to do stuff with reduced the repetitive clicking in the GUI.

Reimplemented in sf::LayoutEditor, and sf::ScriptEditor.

getFileTypeFilters()

QString sf::MultiDocInterface::getFileTypeFilters

(

)

const

Gets the file type filters from module.

hasSelection()

virtual bool sf::MultiDocInterface::hasSelection ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

isModified()

virtual bool sf::MultiDocInterface::isModified ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

isRedoAvailable()

virtual bool sf::MultiDocInterface::isRedoAvailable ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

isUndoAvailable()

virtual bool sf::MultiDocInterface::isUndoAvailable ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

isUndoRedoEnabled()

virtual bool sf::MultiDocInterface::isUndoRedoEnabled ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

loadFile()

virtual bool sf::MultiDocInterface::loadFile ( const QString &  fileName )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, sf::LayoutEditor, and sf::ScriptEditor.

newFile()

virtual void sf::MultiDocInterface::newFile ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

paste()

virtual void sf::MultiDocInterface::paste ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

redo()

virtual void sf::MultiDocInterface::redo ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

save()

virtual bool sf::MultiDocInterface::save ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

saveAs()

virtual bool sf::MultiDocInterface::saveAs ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

setConnections()

virtual void sf::MultiDocInterface::setConnections ( QWidget *  editor )

virtual

Sets the editor to operate on.

When the passed document inherits QPlainTextEdit or QTextEdit the MDI signals are automatically connected. For other implementations you need to connect them manually.

Parameters

editor

Widget being a QPlainTextEdit or QTextEdit instance.

stateSaveRestore()

virtual void sf::MultiDocInterface::stateSaveRestore ( bool  save )

virtual

Saves or restores the state of the MDI instance.

Reimplemented in sf::ScriptEditor.

undo()

virtual void sf::MultiDocInterface::undo ( )

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

userFriendlyCurrentFile()

virtual QString sf::MultiDocInterface::userFriendlyCurrentFile ( ) const

pure virtual

Pure virtual needs to be implemented.

Implemented in sf::TextEditor, sf::PlainTextEditMdi, and sf::LayoutEditor.

Member Data Documentation

mdiSignals

MultiDocInterfaceSignals sf::MultiDocInterface::mdiSignals

Instance to connect signal handlers onto.

---

The documentation for this class was generated from the following file:

• MultiDocInterface.h
