sf::AcquisitionControlPropertyPage Class Reference

#include <AcquisitionControlPropertyPage.h>

Inheritance diagram for sf::AcquisitionControlPropertyPage:

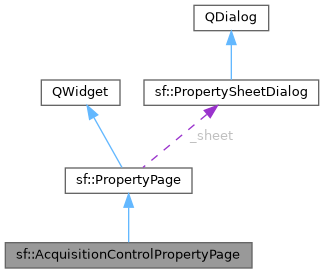

Collaboration diagram for sf::AcquisitionControlPropertyPage:

Public Member Functions
	AcquisitionControlPropertyPage (AcquisitionControl *target, QWidget *parent=nullptr)
	~AcquisitionControlPropertyPage () override
bool	isPageModified () const override
	Gets the modified/changed status of the page.
QString	getPageName () const override
	Gets the name of the page for displaying in the list view. When reimplemented the QObject's name is returned.
QIcon	getPageIcon () const override
	Gets the name of the page for displaying in the list view. When not reimplemented this method returns the Resource settings icon.
void	applyPage () override
	Applies the changes made in this page.
void	updatePage () override
	Updates the control widgets of the page.
Public Member Functions inherited from sf::PropertyPage
	PropertyPage (QWidget *parent)
	Constructor.
virtual QString	getPageDescription () const
	Gets the description for hinting of the page in the list view.
virtual bool	canApplyPage () const
	Allows validation of the changes made per page. First page which return false is selected.
virtual void	afterPageApply (bool was_modified)
	Called when all pages are applied. Method can be overridden by a derived class to update control widgets that were changed because of other pages being applied.
PropertySheetDialog *	getSheet ()
	Gets the parent sheet of this page. (also the parent but cast.)
virtual void	stateSaveRestore (QSettings &settings, bool save)
	Called by sheet to save the state of the page. A call to QSettings::beginGroup() is not needed since it is done by the parent sheet already.

Additional Inherited Members
Protected Member Functions inherited from sf::PropertyPage
virtual QWidgetList	connectControls ()
	Connects all known controls change signals to a handler which enables or disables buttons. A derived class should call this method when the is set up and controls are updated.
Protected Attributes inherited from sf::PropertyPage
PropertySheetDialog *	_sheet
	Holds the sheet it is part of.
friend	PropertySheetDialog

Constructor & Destructor Documentation

AcquisitionControlPropertyPage()

sf::AcquisitionControlPropertyPage::AcquisitionControlPropertyPage ( AcquisitionControl *  target, QWidget *  parent = nullptr  )

explicit

~AcquisitionControlPropertyPage()

sf::AcquisitionControlPropertyPage::~AcquisitionControlPropertyPage ( )

override

Member Function Documentation

applyPage()

void sf::AcquisitionControlPropertyPage::applyPage ( )

overridevirtual

Applies the changes made in this page.

Reimplemented from sf::PropertyPage.

getPageIcon()

QIcon sf::AcquisitionControlPropertyPage::getPageIcon ( ) const

overridevirtual

Gets the name of the page for displaying in the list view. When not reimplemented this method returns the Resource settings icon.

Reimplemented from sf::PropertyPage.

getPageName()

QString sf::AcquisitionControlPropertyPage::getPageName ( ) const

overridevirtual

Gets the name of the page for displaying in the list view. When reimplemented the QObject's name is returned.

Reimplemented from sf::PropertyPage.

isPageModified()

bool sf::AcquisitionControlPropertyPage::isPageModified ( ) const

overridevirtual

Gets the modified/changed status of the page.

Returns

True when modified.

Reimplemented from sf::PropertyPage.

updatePage()

void sf::AcquisitionControlPropertyPage::updatePage ( )

overridevirtual

Updates the control widgets of the page.

This method is called to initialize the control widgets.

Reimplemented from sf::PropertyPage.

---

The documentation for this class was generated from the following file:

• AcquisitionControlPropertyPage.h
