TClassRegistration.h File Reference

#include <misc/gen/DynamicLibraryInfo.h>
#include <misc/gen/Exception.h>
#include <misc/gen/TClosure.h>
#include <misc/gen/TVector.h>
#include <misc/gen/dbgutils.h>
#include <misc/global.h>
#include <misc/gen/TClassRegistration.hpp>

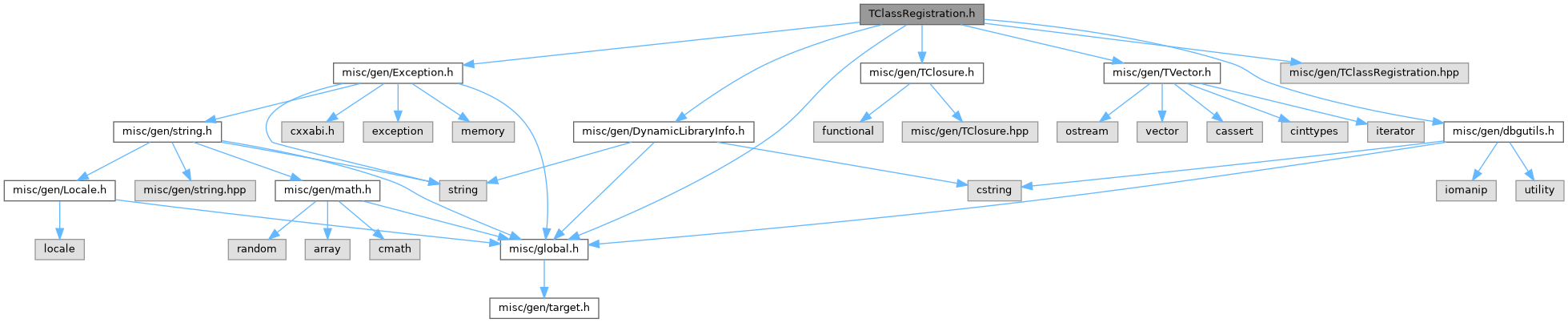

Include dependency graph for TClassRegistration.h:

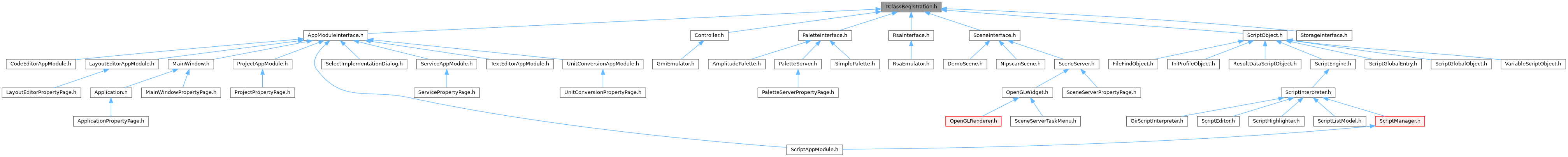

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sf::TClassRegistration< T, P >
	Template class used to register derived classes from a (virtual) interface class. Registering name and description. Example More...
class	sf::TClassRegistration< T, P >::entry_t
	Type of registered entry in the list. More...

Namespaces
namespace	sf

Macros
#define	SF_DL_NAME_FUNC_NAME   "_dl_name_"
	Name of the function to resolve from a library to be able to set the library filename when dynamically loaded.
#define	SF_DL_NAME_FUNC   _dl_name_
#define	SF_DL_STRING_COPY(dest, src, sz)   strncpy(dest, src, sz)
#define	SF_DL_INFORMATION(name, description)
#define	SF_DL_NAME_FUNC_TYPE   const char* (*) (const char*)
	Type for casting a resolved function pointer to.
#define	SF_DECL_IFACE(InterfaceType, ParamType, FuncName)
	Declares a public static function in the class where it is used. Where: InterfaceType: Global typename of the interface class (virtual base class). ParamType: Global typename of the parameters passed. FuncName: Name of the public function in the interface class for registering derived classes or to create them.
#define	SF_IMPL_IFACE(InterfaceType, ParamType, FuncName)
	Implements the public static function in the class where it is used.
#define	SF_REG_CLASS(InterfaceType, ParamType, FuncName, DerivedType, RegName, Description)
	Registers a derived type from the interface type. Where: DerivedType: The derived typename from InterfaceType RegName: Quoted character string containing the name. Description: Quoted character string holding the name.

Functions
const char *	_dl_name_ (const char *name)
	Declaration of function to set and get the dynamic library name when loading.
std::string	sf::getLibraryName ()
	function to get the library filename this function is called from.

Macro Definition Documentation

SF_DECL_IFACE

#define SF_DECL_IFACE	(		InterfaceType,
			ParamType,
			FuncName
	)

Value:

private: \
  std::string _Register_Name_; \
 \
public: \
  static sf::TClassRegistration<InterfaceType, ParamType> FuncName(); \
  friend class sf::TClassRegistration<InterfaceType, ParamType>;

Declares a public static function in the class where it is used. Where: InterfaceType: Global typename of the interface class (virtual base class). ParamType: Global typename of the parameters passed. FuncName: Name of the public function in the interface class for registering derived classes or to create them.

SF_DL_INFORMATION

#define SF_DL_INFORMATION	(		name,
			description
	)

Value:

  namespace  \
  {  \
  const char* _dl_ = SF_DL_MARKER_BEGIN name SF_DL_NAME_SEPARATOR description SF_DL_MARKER_END;  \
  \
  extern "C" TARGET_EXPORT const char* SF_DL_NAME_FUNC(const char* nm)  \
  {  \
    static char storage[256];  \
    if (nm)  \
      SF_DL_STRING_COPY(storage, nm, sizeof(storage));  \
    return storage;  \
  }  \
  }

Declaration of dynamically loadable library information and function for set/get the library filename.

SF_DL_NAME_FUNC

#define SF_DL_NAME_FUNC   _dl_name_

SF_DL_NAME_FUNC_NAME

#define SF_DL_NAME_FUNC_NAME   "_dl_name_"

Name of the function to resolve from a library to be able to set the library filename when dynamically loaded.

SF_DL_NAME_FUNC_TYPE

#define SF_DL_NAME_FUNC_TYPE   const char* (*) (const char*)

Type for casting a resolved function pointer to.

SF_DL_STRING_COPY

#define SF_DL_STRING_COPY	(		dest,
			src,
			sz
	)		strncpy(dest, src, sz)

SF_IMPL_IFACE

#define SF_IMPL_IFACE	(		InterfaceType,
			ParamType,
			FuncName
	)

Value:

  sf::TClassRegistration<InterfaceType, ParamType> InterfaceType::FuncName() \
  { \
    static sf::TClassRegistration<InterfaceType, ParamType>::entries_t entries; \
    return sf::TClassRegistration<InterfaceType, ParamType>(entries); \
  }

Implements the public static function in the class where it is used.

SF_REG_CLASS

#define SF_REG_CLASS	(		InterfaceType,
			ParamType,
			FuncName,
			DerivedType,
			RegName,
			Description
	)

Value:

  namespace \
  { \
  __attribute__((constructor)) void _## DerivedType## _() \
  { \
    size_t dist = InterfaceType::FuncName().registerClass( \
      RegName, Description, sf::TClassRegistration<InterfaceType, ParamType>::callback_t([](const ParamType& params) -> InterfaceType* { \
        auto inst = new DerivedType(params); \
        sf::TClassRegistration<InterfaceType, ParamType>::setRegisterName(inst, RegName); \
        return inst; \
      }) \
    ); \
  } \
  }

Registers a derived type from the interface type. Where: DerivedType: The derived typename from InterfaceType RegName: Quoted character string containing the name. Description: Quoted character string holding the name.

Function Documentation

_dl_name_()

const char * _dl_name_

(

const char *

name

)

Declaration of function to set and get the dynamic library name when loading.
